X615L

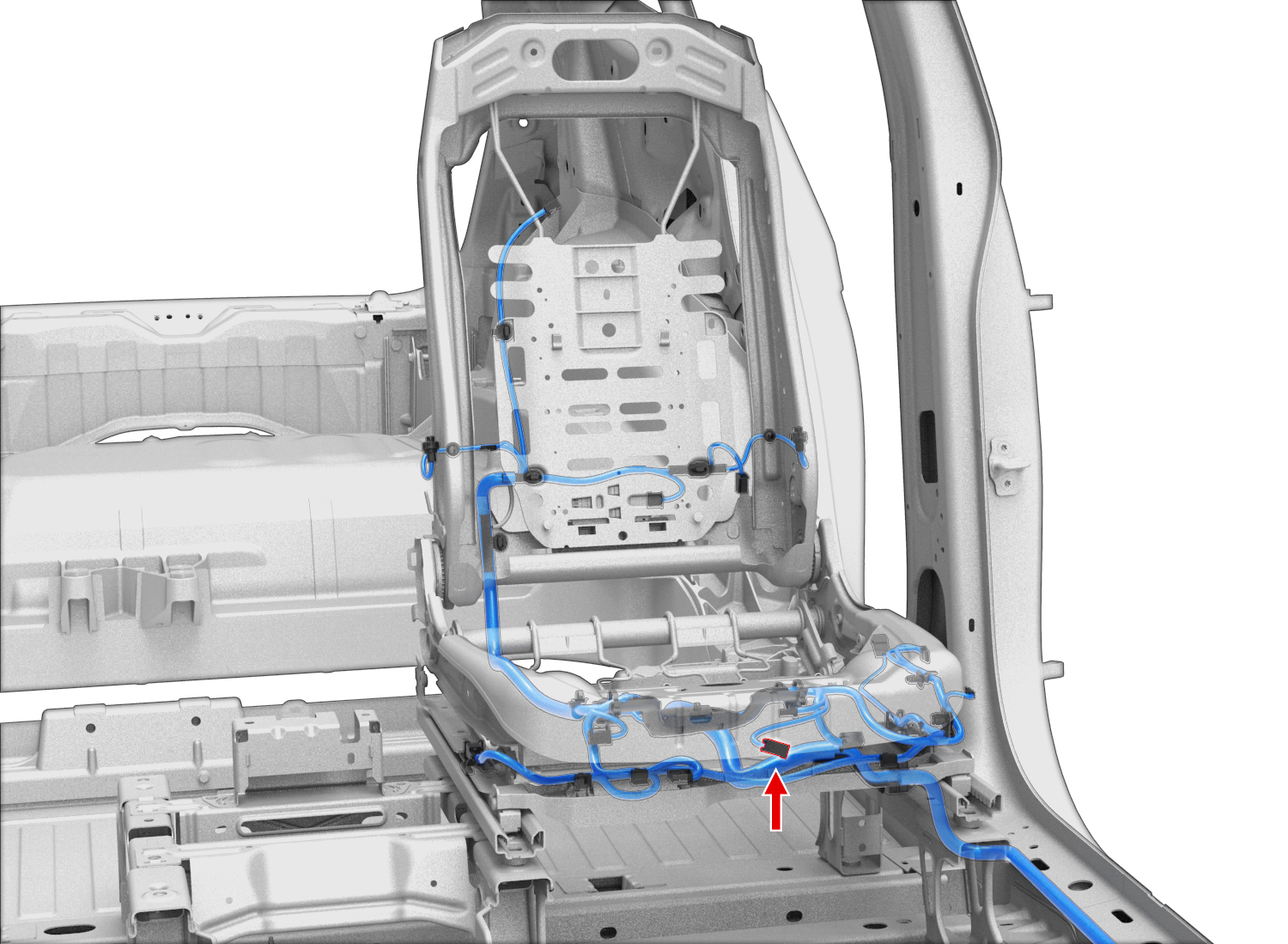

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 968678-2 | 2.8x0.6F | WH | 0.35 | X032 | 50 | ||
| 2 | AMP | 5-928999-1 | 0.63x0.63F | BN | 0.35 | X032 | 17 | ||
| 3 | AMP | 968678-2 | 2.8x0.6F | BU | 0.35 | X032 | 51 | ||
| 4 | AMP | 5-928999-1 | 0.63x0.63F | YE | 0.35 | X032 | 20 |
