X205

Tesla Part Number
1496687-00-A
Connector
DELPHI 35126363
Color
BK

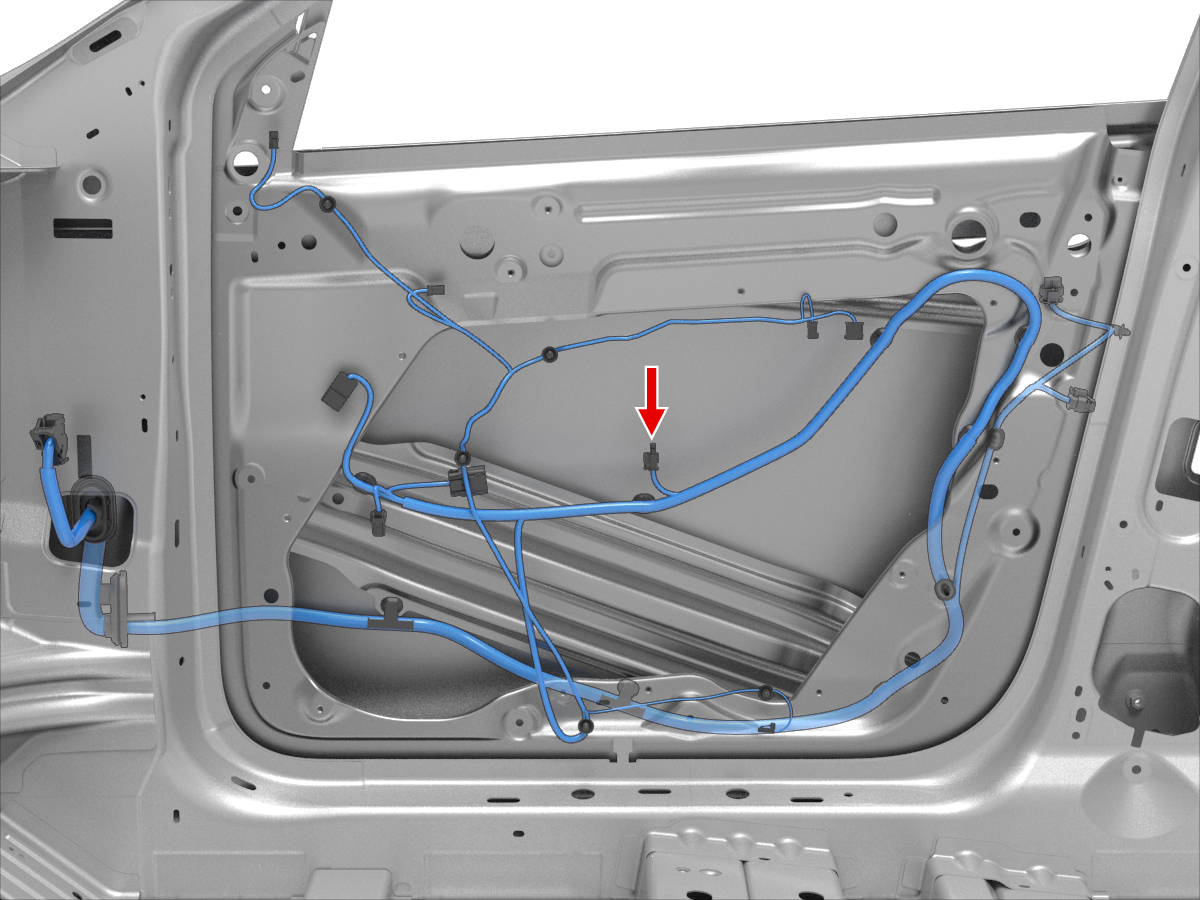

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591181.2x0.6FSTN0.35DELPHI13887349X053B18
2DELPHI139591181.2x0.6FSGN0.35DELPHI13887349X053B19
