X053A

Tesla Part Number

1800524-01-A

Connector

YAZAKI 7287-1673

Color

NA

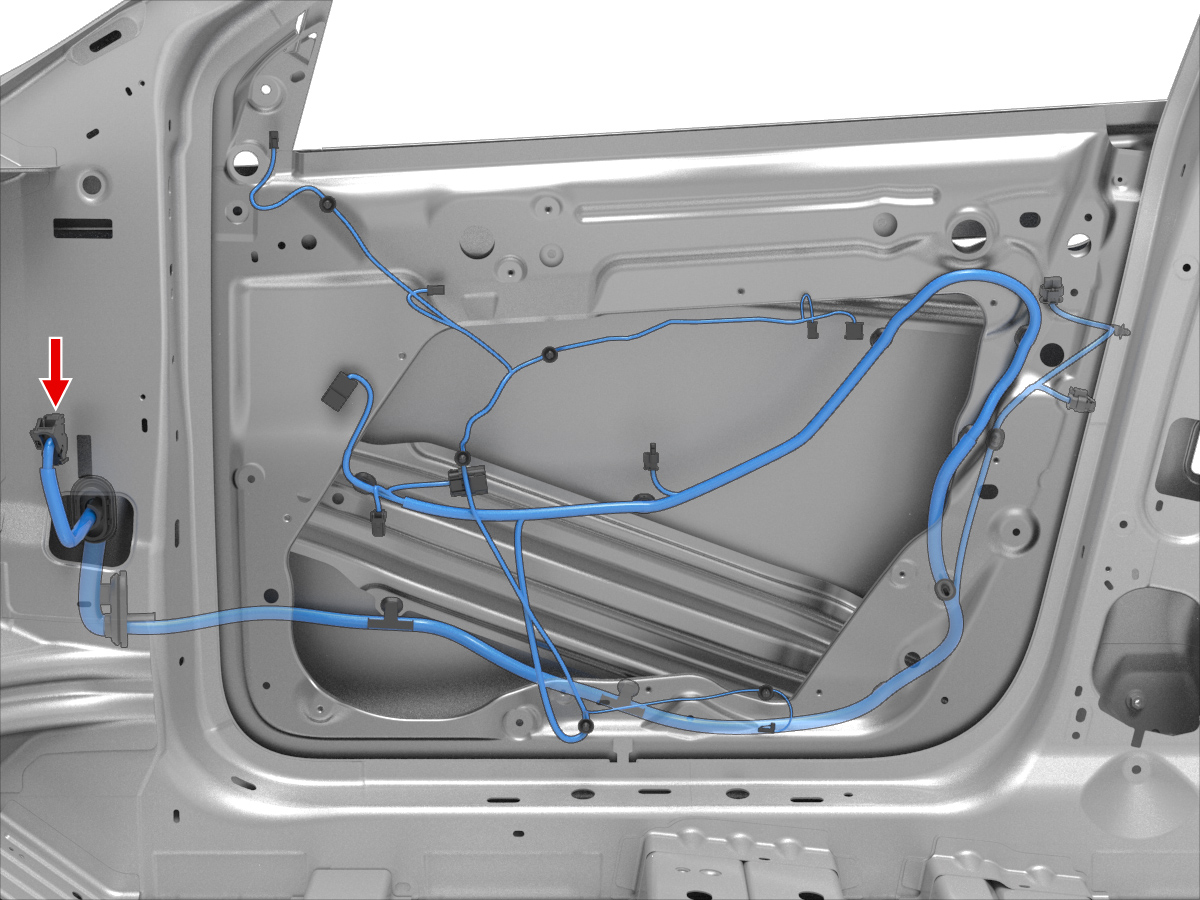

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-5751-02	1.5x0.8F	TN	1.50			X403	3
2	YAZAKI	7116-5751-02	1.5x0.8F	RD	1.50			X403	1
3	YAZAKI	7116-5749-02	1.5x0.8F	BU	0.35			X410	3
4	YAZAKI	7116-5749-02	1.5x0.8F	WH	0.35			X410	4
5	YAZAKI	7116-5750-02	1.5x0.8F	VT	0.75			X575	1
6	YAZAKI	7116-5750-02	1.5x0.8F	BU	0.75			X575	2
7	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X403	4
8	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X401	1
9	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X400	1
10	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X399	2
11	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X395	1
12	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X410	8
13	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X397	2
14	YAZAKI	7116-3153-02	0.64x0.64F	YE	0.35			X409	1
15	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X408	1
16	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X403	5
17	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X406	12
18	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X406	5
19	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X395	4
20	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X395	3
21	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X397	4
22	YAZAKI	7116-3154-02	0.64x0.64F	VT	0.50			X575	1
23	YAZAKI	7116-3154-02	0.64x0.64F	BU	0.50			X575	2
24	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X410	1
