X012

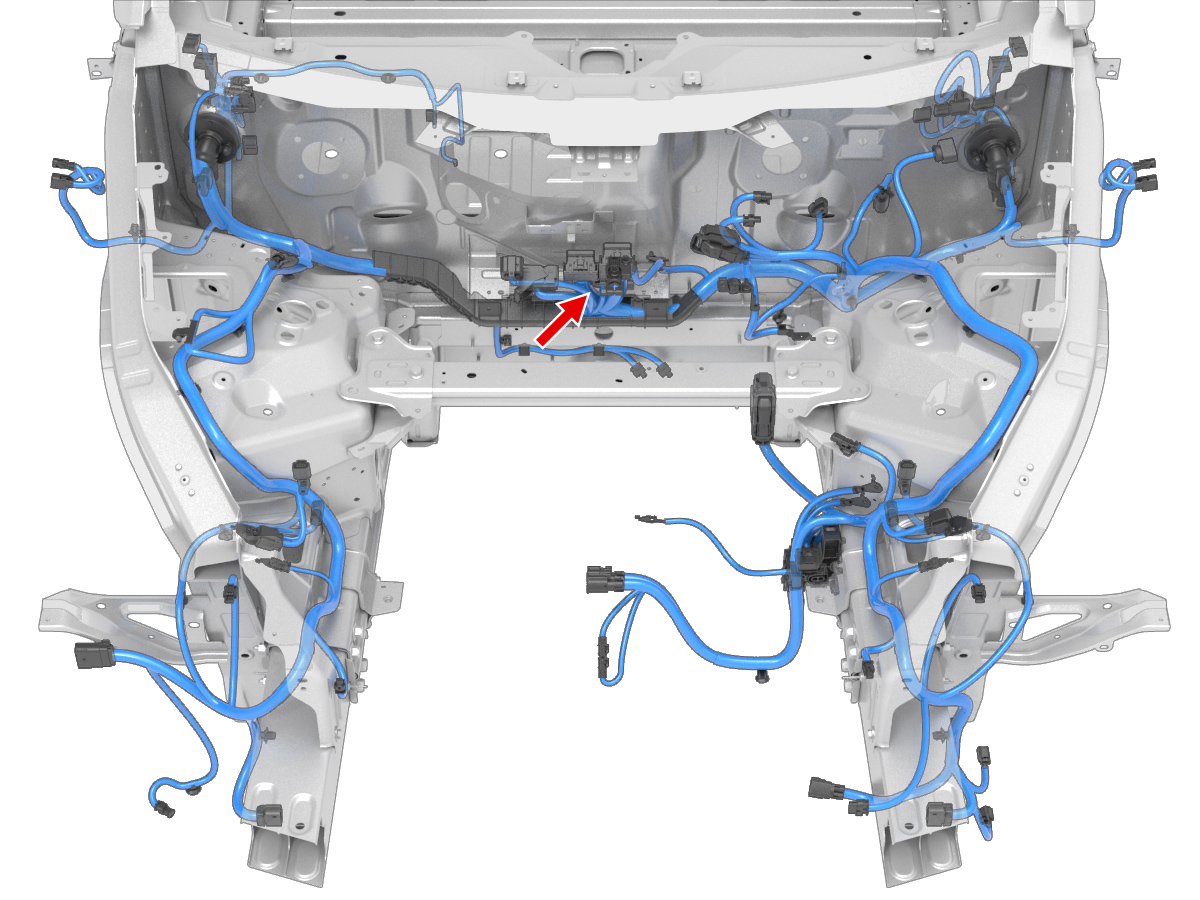

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | unused | ||||||||
| 2 | KSE | K80F60113 | 6.3 | BU | 4.00 | KSE | K60F01413 | X121 | 1 |
| 3 | KSE | K80F60112 | 6.3 | VT | 2.50 | KSE | K60F01412 | X300A | 4 |
| 4 | KSE | K80F60114 | 6.3 | BU | 5.00 | KSE | K60F01413 | X153 | 30 |
| 5 | KSE | K80F60114 | 6.3 | RD | 5.00 | KSE | K60F01413 | X150C | 9 |
| 6 | unused | ||||||||
| 7 | unused | ||||||||
