X420

Tesla Part Number

1080111-01-A

Connector

AMP 1717106-2

Color

BK

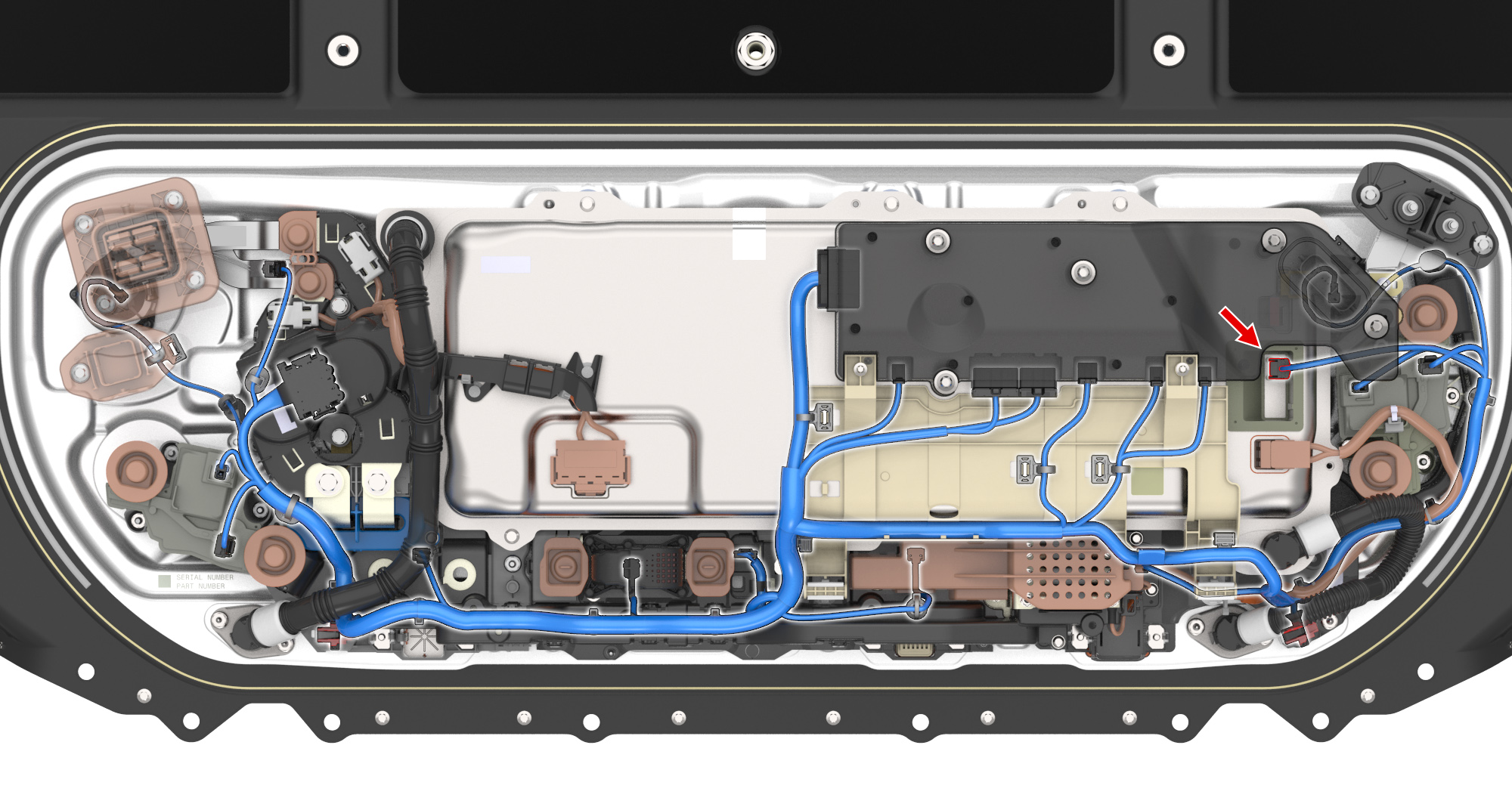

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1674311-7	0.64F	GY	0.35			X479	7
2	unused
3	unused
4	AMP	1674311-7	0.64F	WH	0.35			X479	28
5	AMP	1674311-7	0.64F	BU	0.35			X479	15
6	AMP	1674311-7	0.64F	RD	0.35			X479	27
7	unused
8	unused
9	unused
10	AMP	1674311-7	0.64F	BU	0.35			X479	21
11	AMP	1674311-7	0.64F	WH	0.35			X479	20
12	AMP	1674311-7	0.64F	BN	0.35			X479	10
