X156A

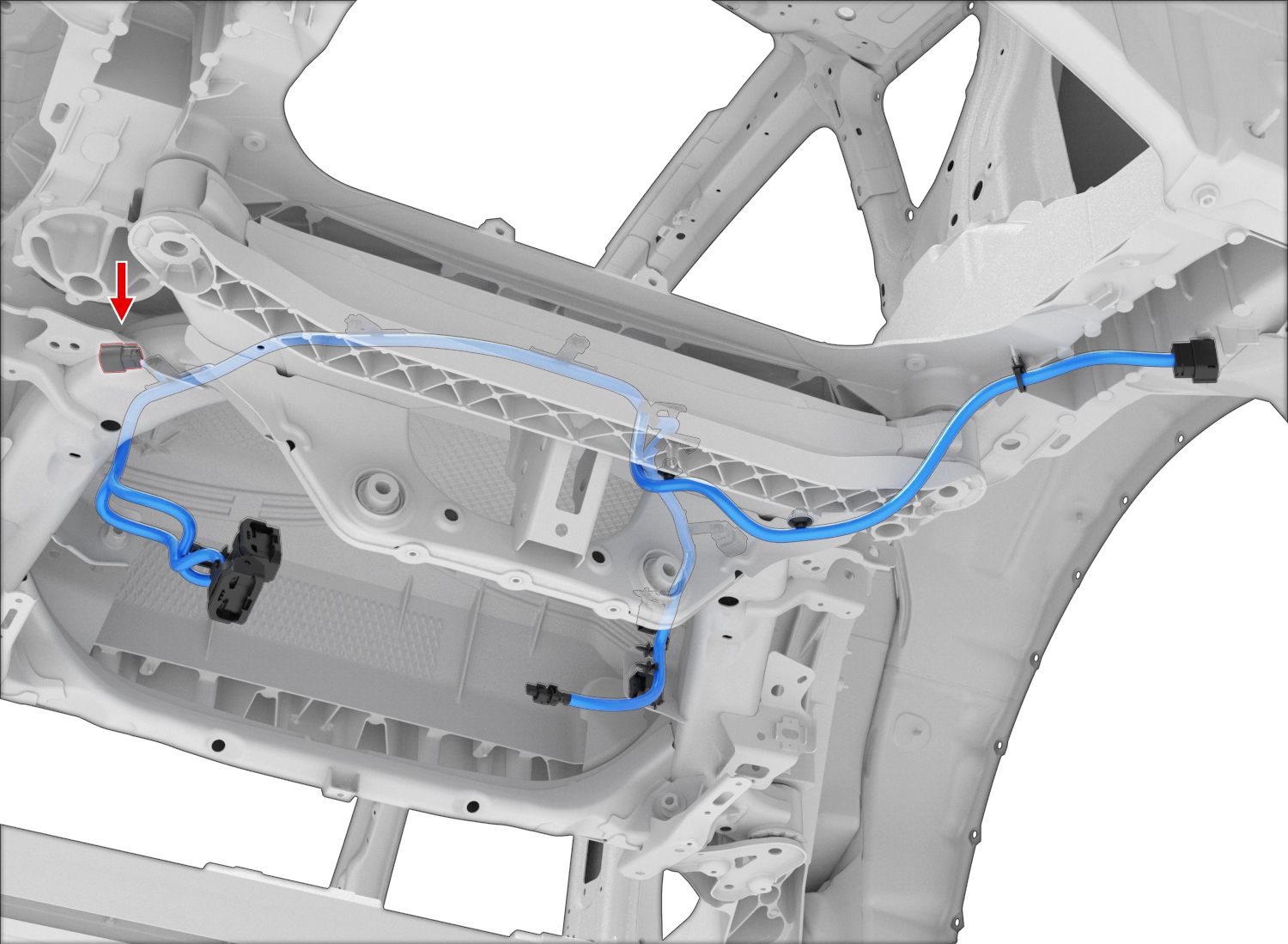

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33012-3004 | 1.5x0.8F | RD | 0.35 | TESLA | MAT-120-240 | X157A | 4 |
| 2 | MOLEX | 33012-3004 | 1.5x0.8F | BU | 0.35 | TESLA | MAT-120-240 | X157A | 3 |
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | MOLEX | 33012-3004 | 1.5x0.8F | TN | 0.35 | TESLA | MAT-120-240 | X952F | 2 |
| 8 | MOLEX | 33012-3004 | 1.5x0.8F | GN | 0.35 | TESLA | MAT-120-240 | X952F | 3 |
