X039

Tesla Part Number

1047432-00-A

Connector

SUMITOMO 6098-4740

Color

WH

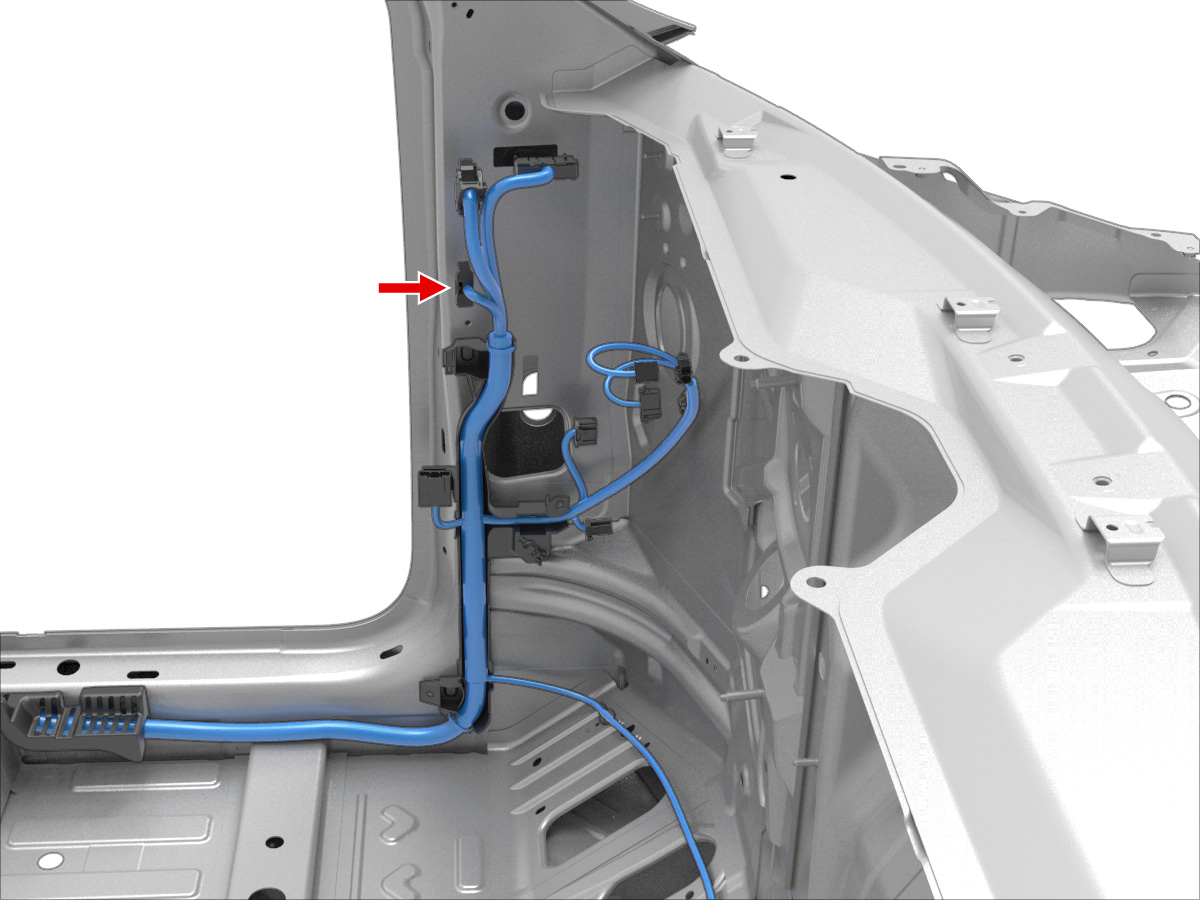

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X680A	3
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X656A	2
4	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X924M	12
5	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X951M	1
6	unused
7	unused
8	unused
9	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X981M	10
10	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X353	2
11	SUMITOMO	8100-3625	0.64x0.64F	BN	0.50			X951M	3
12	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X353	3
13	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X353	4
14	SUMITOMO	8100-3625	0.64x0.64F	BU	0.50			X935F	4
15	SUMITOMO	8100-3625	0.64x0.64F	VT	0.50			X935F	3
16	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X493	6
17	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X493	3
18	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X935F	46
19	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X935F	47
20	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935F	44
21	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X935F	45
22	unused
23	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X935F	59
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X935F	60
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X493	1
26	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X935F	36
27	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X935F	37
28	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X930F	15
29	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X930F	14
30	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X680A	2
31	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X924M	17
32	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X680A	1
33	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X951M	4
34	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X353	1
35	unused
36	unused
