X908M

Tesla Part Number

1849227-00-B

Connector

KSE K30M31111

Color

NA

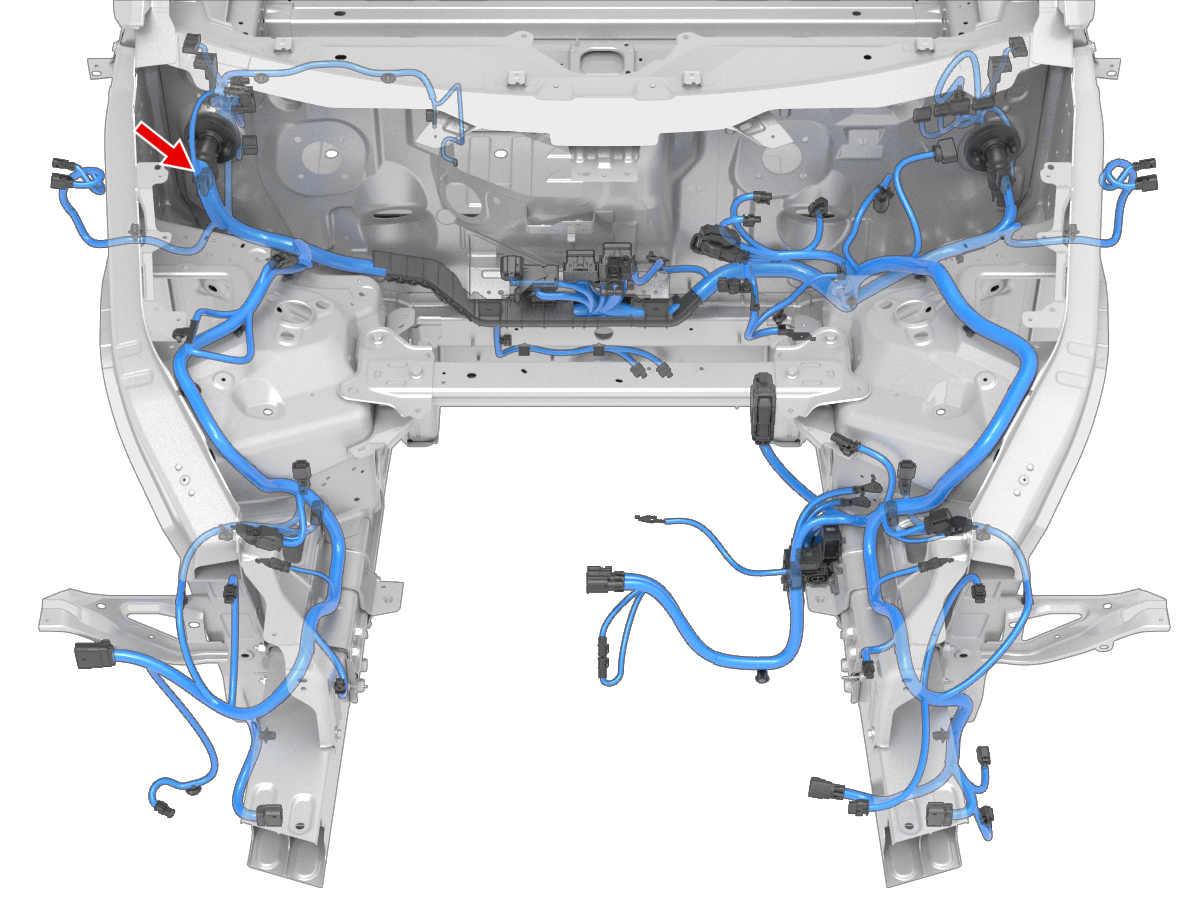

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	TN	2.00			X010	76
2	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X173	7
3	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X057	1
4	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X151	22
5	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X151	37
6	unused
7	unused
8	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X167	6
9	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X167	5
10	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X167	4
11	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X167	1
12	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X167	2
13	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X167	3
14	SUMITOMO	8230-4924	1.5x0.6M	GN	1.00			X602	1
15	unused
16	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X173	4
17	SUMITOMO	8100-3623	0.64x0.64M	DKGN/WH	0.35
18	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35
19	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X037	28
20	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X151	39
21	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X151	23
22	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X541	1
23	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X541	2
24	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X121	17
25	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X121	18
26	SUMITOMO	8230-4924	1.5x0.6M	BU	1.00			X602	2
