X151

Tesla Part Number

2097773-00-A

Connector

AMP 0-2490206-1

Color

BK

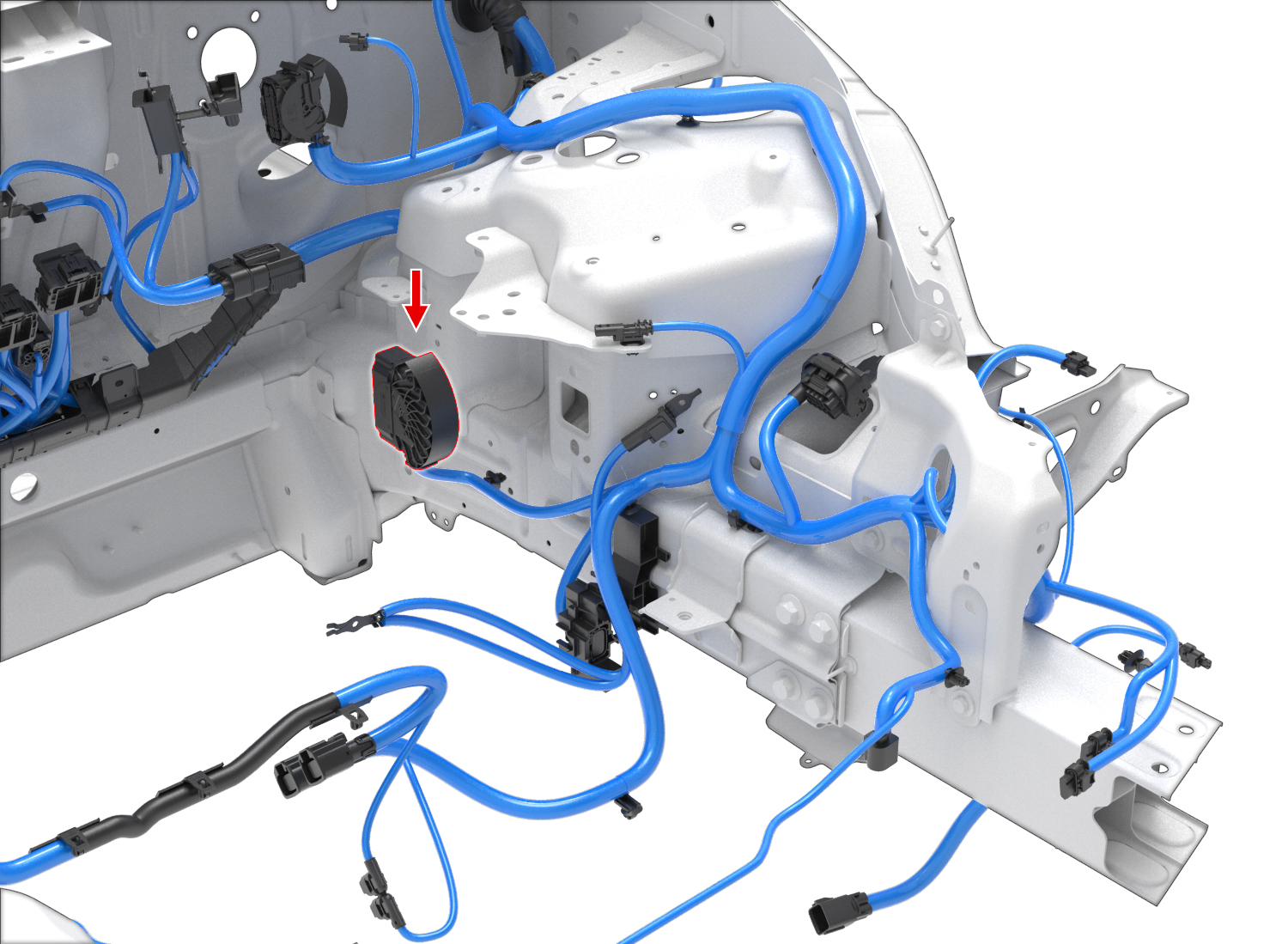

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1241418-4	6.3x0.8F	YE	5	AMP	1719043-2	X011	7
2	unused
3	unused
4	unused
5	AMP	1534594-1	1.2x0.63F	YE/LTBU	0.35	TESLA	MAT-120-240	X010	14
6	unused
7	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X154A	8
8	unused
9	unused
10	unused
11	AMP	1534594-1	1.2x0.63F	DKGN/WH	0.35	TESLA	MAT-120-240	X037	14
12	unused
13	unused
14	AMP	1241418-4	6.3x0.8F	BK	5	AMP	1719043-2	G011	15
15	unused
16	unused
17	unused
18	unused
19	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X010	29
20	unused
21	AMP	1534594-1	1.2x0.63F	BU	0.35	TESLA	MAT-120-240	X155A	7
22	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X908M	4
23	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240	X908M	21
24	AMP	1534594-1	1.2x0.63F	YE	0.35	TESLA	MAT-120-240	X154A	7
25	AMP	1534594-1	1.2x0.63F	GN	0.35	TESLA	MAT-120-240	X037	15
26	AMP	1534594-1	1.2x0.63F	GY	0.35	TESLA	MAT-120-240	X155A	8
27	unused
28	unused
29	unused
30	AMP	1241414-1	6.3x0.8F	WH	2.00	AMP	1394511-1	X010	91
31	unused
32	unused
33	unused
34	unused
35	unused
36	AMP	1534594-1	1.2x0.63F	WH	0.35	TESLA	MAT-120-240	X010	71
37	AMP	1534594-1	1.2x0.63F	VT	0.35	TESLA	MAT-120-240	X908M	5
38	unused
39	AMP	1534594-1	1.2x0.63F	TN	0.35	TESLA	MAT-120-240	X908M	20
40	unused
41	unused
42	unused
43	unused
44	unused
45	unused
46	AMP	1241414-1	6.3x0.8F	BK	2.00	AMP	1394511-1	G011	13
