X030A

Tesla Part Number

1906769-02-A

Connector

DELPHI 35663316

Color

NA

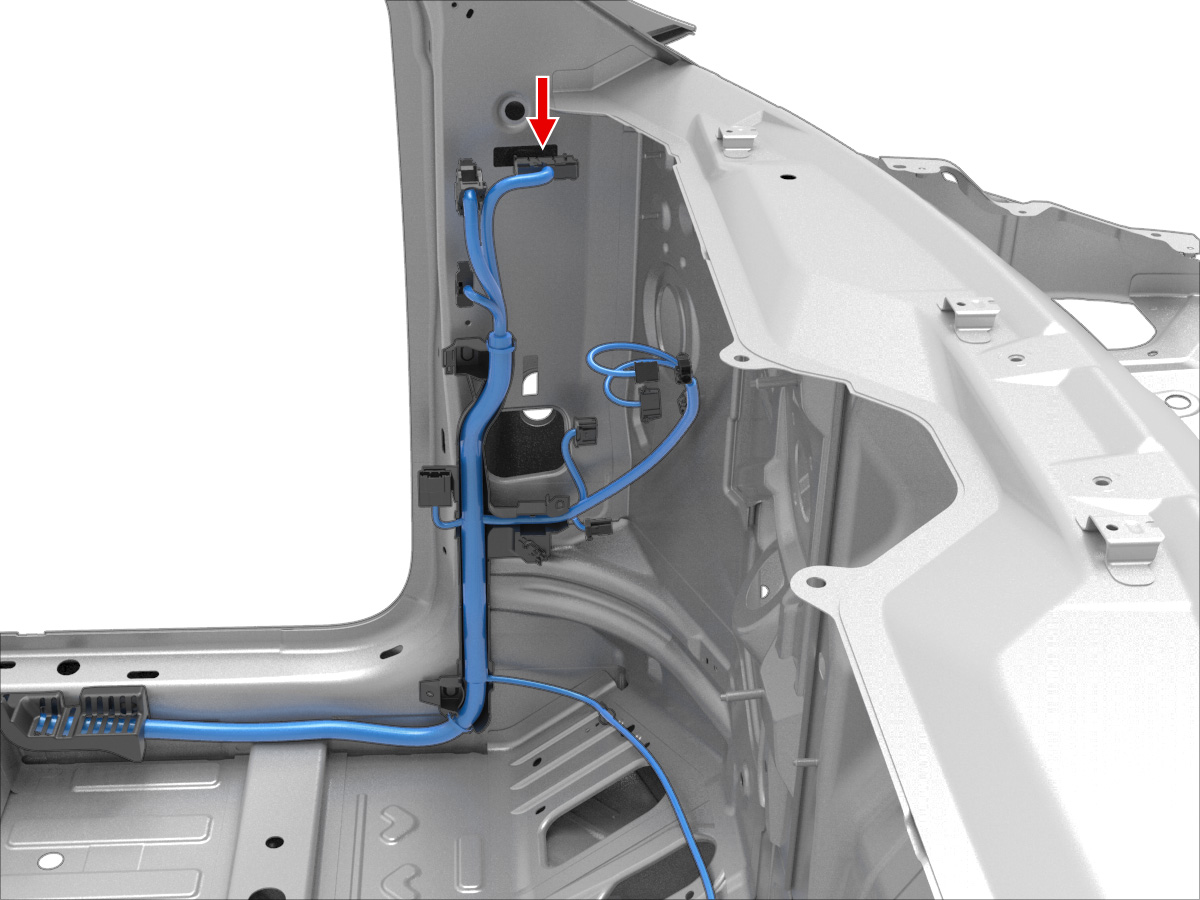

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	unused
2	unused
3	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X201	53
4	SUMITOMO	8100-3625	0.64x0.64F	GN/WH	0.35			X201	54
5	unused
6	SUMITOMO	8100-3625	0.64x0.64F	YE/GN	0.35			X981M	9
7	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X921F	2
8	SUMITOMO	8100-3625	0.64x0.64F	GN	0.35			X924M	11
9	unused
10	unused
11	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X924M	13
12	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X493	2
13	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X924M	8
14	SUMITOMO	8100-3625	0.64x0.64F	TN	0.35			X924M	21
15	SUMITOMO	8100-3625	0.64x0.64F	BN/WH	0.35			X957F	5
16	SUMITOMO	8100-3625	0.64x0.64F	BN	0.35			X957F	6
17	SUMITOMO	8100-3625	0.64x0.64F	GY	0.35			X924M	5
18	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X924M	6
19	unused
20	SUMITOMO	8100-3625	0.64x0.64F	WH	0.50			X935F	54
21	SUMITOMO	8100-3625	0.64x0.64F	YE	0.35			X935F	61
22	SUMITOMO	8100-3625	0.64x0.64F	BU	0.35			X924M	20
23	SUMITOMO	8100-3625	0.64x0.64F	VT	0.35			X924M	22
24	SUMITOMO	8100-3625	0.64x0.64F	WH	0.35			X935F	38
25	SUMITOMO	8100-3625	0.64x0.64F	RD	0.35			X935F	33
26	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X981M	8
27	SUMITOMO	8240-0215	1.5x0.64F	RD	0.35			X935F	48
28	SUMITOMO	8240-0215	1.5x0.64F	TN	0.35			X096	10
29	SUMITOMO	8240-0215	1.5x0.64F	VT	0.50			X935F	52
30	unused
31	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X935F	58
32	SUMITOMO	8240-0215	1.5x0.64F	RD	0.50			X951M	6
