X093

Tesla Part Number

1077101-00-A

Connector

SUMITOMO 6189-6987

Color

GY

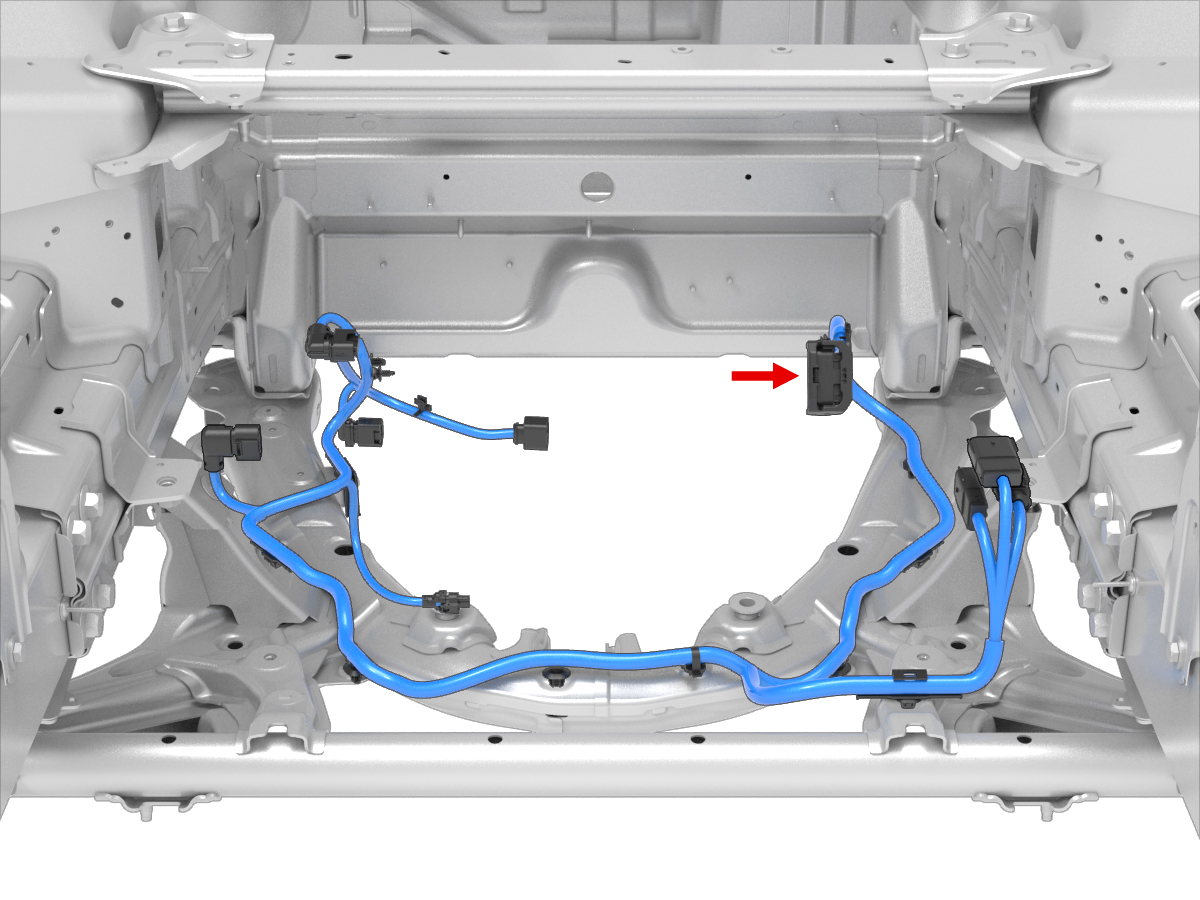

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1
2	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X911M	3
3	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X911M	10
4
5
6
7	SUMITOMO	8100-3456	0.64x0.64FS	RD	0.35	SUMITOMO	7165-1312	X094	9
8	SUMITOMO	8100-3456	0.64x0.64FS	VT	0.35	SUMITOMO	7165-1312	X094	5
9
10	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X095	2
11
12	SUMITOMO	8100-3456	0.64x0.64FS	BU/WH	0.35	SUMITOMO	7165-1312	X911M	2
13	SUMITOMO	8100-3456	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X911M	8
14
15
16	SUMITOMO	8100-3456	0.64x0.64FS	BU	0.35	SUMITOMO	7165-1312	X094	8
17	SUMITOMO	8100-3456	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X094	4
18
19
20
21
22
23
24
25
26	SUMITOMO	8100-3456	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X094	3
27	SUMITOMO	8100-3456	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X094	10
28
29
30
