X935M

Tesla Part Number

1517047-00-A

Connector

YAZAKI 7288-4103-40

Color

GY

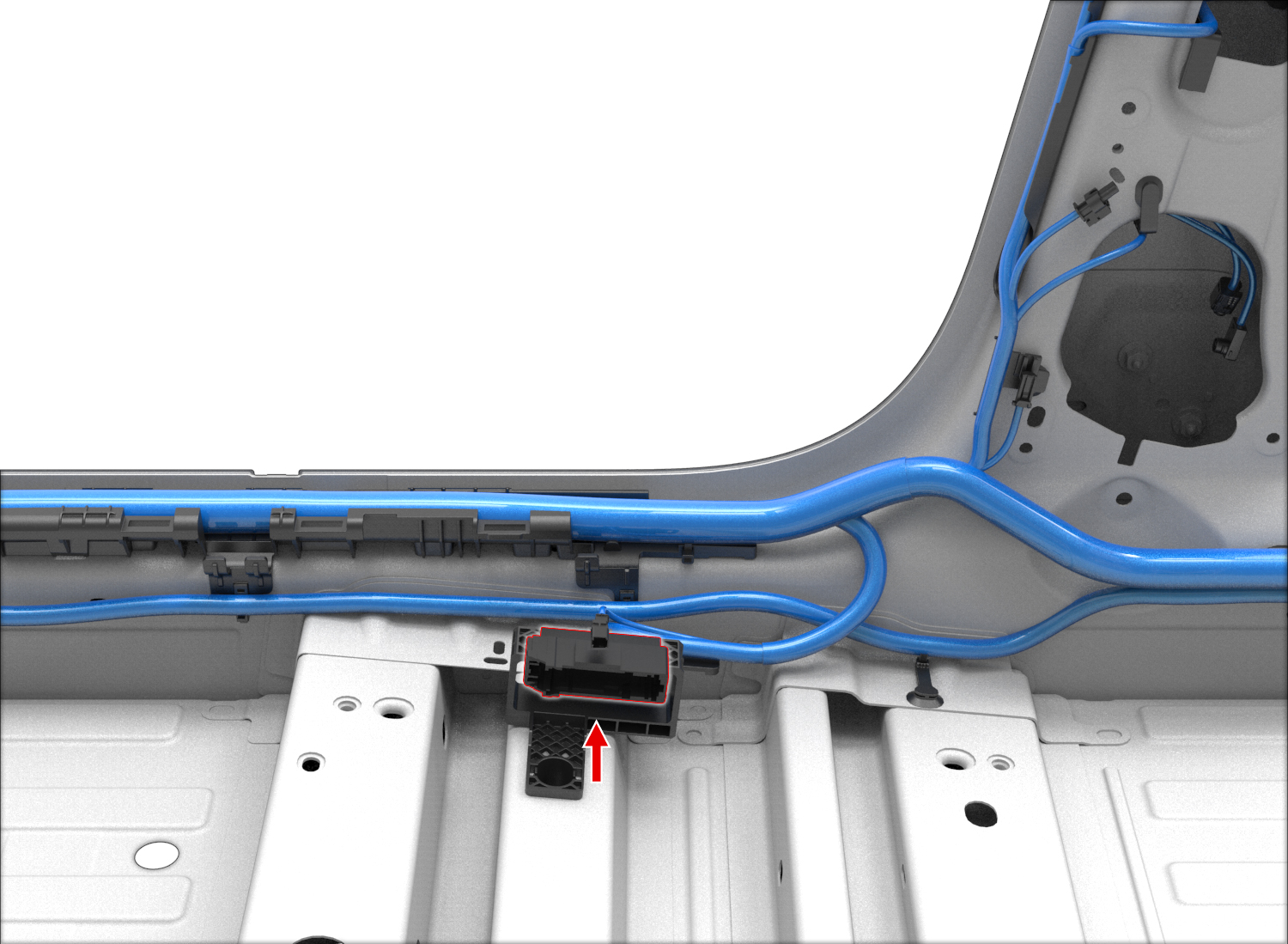

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8230-4923	1.5x0.6M	YE	2.00			X561	8
2	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X561	7
3	SUMITOMO	8230-4925	1.5x0.6M	VT	0.50			X171	6
4	SUMITOMO	8230-4925	1.5x0.6M	BU	0.50			X171	5
5	SUMITOMO	8230-4925	1.5x0.6M	GN	0.50			X175	13
6	SUMITOMO	8230-4925	1.5x0.6M	GY	0.50			X175	14
7	unused
8	SUMITOMO	8230-4925	1.5x0.6M	WH	0.50			X171	3
9	SUMITOMO	8230-4925	1.5x0.6M	BN	0.50			X171	4
10	SUMITOMO	8230-4925	1.5x0.6M	RD	0.50			X560	2
11	SUMITOMO	8230-4925	1.5x0.6M	BK	0.50			X560	1
12	unused
13	unused
14	SUMITOMO	8230-4925	1.5x0.6M	GN	0.35			X222	1
15	SUMITOMO	8230-4925	1.5x0.6M	WH	0.35			X222	2
16	SUMITOMO	8230-4923	1.5x0.6M	GN	2.00			X560	9
17	SUMITOMO	8230-4923	1.5x0.6M	VT	2.00			X560	10
18	SUMITOMO	8230-4925	1.5x0.6M	BU	0.35			X059	35
19	SUMITOMO	8230-4925	1.5x0.6M	BN	0.35			X059	36
20	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X926M	18
21	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X926M	19
22	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X226	2
23	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X226	1
24	SUMITOMO	8100-3623	0.64x0.64M	GN	0.50			X171	16
25	SUMITOMO	8100-3623	0.64x0.64M	BN	0.50			X171	15
26	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X207	1
27	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X207	2
28	SUMITOMO	8100-3623	0.64x0.64M	BK	0.35			X098	6
29	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X098	7
30	SUMITOMO	8100-3623	0.64x0.64M	YE/LTBU	0.35			X051	14
31	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X051	30
32	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X098	11
33	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X949M	6
34	unused
35	unused
36	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X949M	1
37	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X949M	2
38	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X949M	11
39	unused
40	SUMITOMO	8230-4925	1.5x0.6M	GY	0.35			X954M	3
41	SUMITOMO	8230-4925	1.5x0.6M	RD	0.35			X954M	9
42	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X220	1
43	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X220	2
44	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X494	6
45	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X494	3
46	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X490	1
47	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X490	3
48	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X952M	15
49	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X098	10
50	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X098	13
51	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X961M	5
52	SUMITOMO	8100-3623	0.64x0.64M	VT	0.50			X961M	4
53	unused
54	SUMITOMO	8100-3623	0.64x0.64M	WH	0.50			X165A	3
55	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X218	1
56	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X218	2
57	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X961M	7
58	SUMITOMO	8100-3623	0.64x0.64M	RD	0.50			X961M	6
59	SUMITOMO	8100-3623	0.64x0.64M	GY	0.35			X949M	14
60	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X949M	15
61	SUMITOMO	8230-4925	1.5x0.6M	YE	0.35			X490	2
62	SUMITOMO	8230-4923	1.5x0.6M	RD	2.00			X165A	4
63	SUMITOMO	8230-4923	1.5x0.6M	BU	2.00			X165A	1
