X400

Tesla Part Number
1015004-01-A
Connector
AMP 2-1718333-1
Color
WH

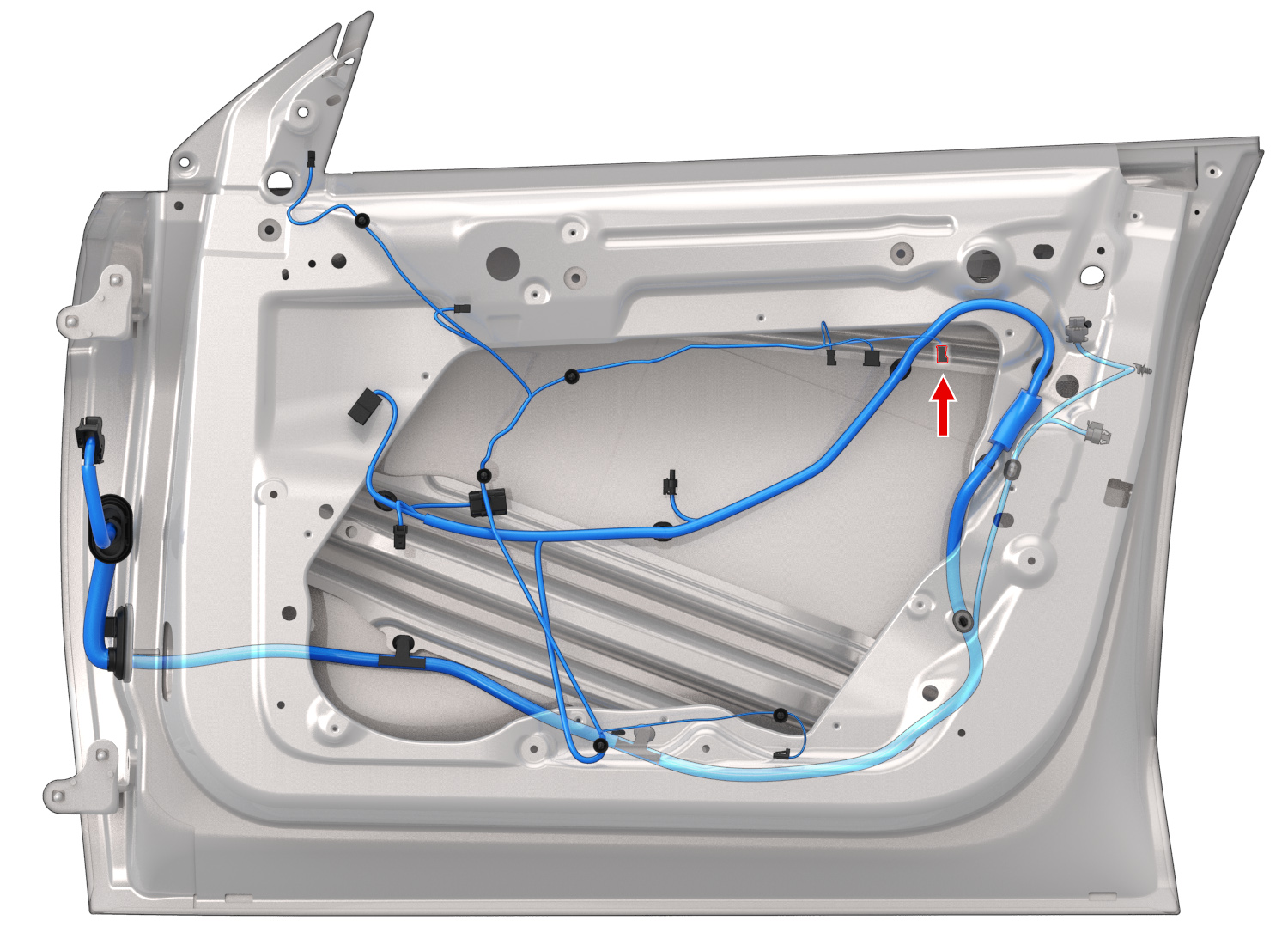

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP5-928999-10.63x0.63FRD0.35X053A9
2AMP5-928999-10.63x0.63FBN0.35
