X924F

Tesla Part Number

1848860-00-C

Connector

KSE K20F01021

Color

WH

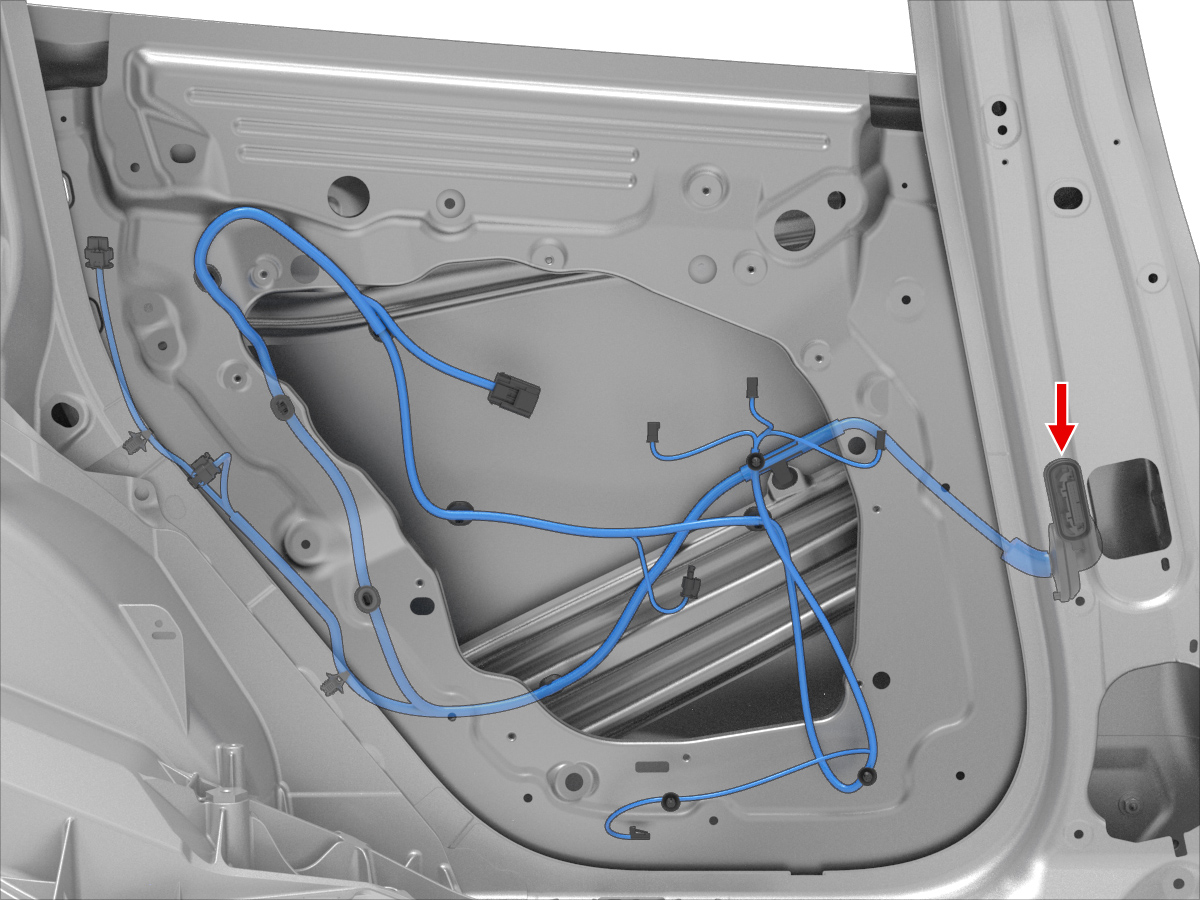

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7116-5751-02	1.5x0.8F	WH	1.50			X433	1
2	YAZAKI	7116-5751-02	1.5x0.8F	GN	1.50			X433	3
3	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X435	1
4	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X432	1
5	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X433	4
6	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X433	5
7	YAZAKI	7116-3153-02	0.64x0.64F	RD	0.35			X436	1
8	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X427	1
9	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X427	4
10	YAZAKI	7116-3153-02	0.64x0.64F	GY	0.35			X427	3
11	YAZAKI	7116-5749-02	1.5x0.8F	GN	0.35			X434	3
12	YAZAKI	7116-5749-02	1.5x0.8F	YE	0.35			X427	8
13	YAZAKI	7116-5749-02	1.5x0.8F	GY	0.35			X426	3
14	unused
15	YAZAKI	7116-5749-02	1.5x0.8F	BN	0.50
16	unused
17	YAZAKI	7116-3153-02	0.64x0.64F	WH	0.35			X434	1
18	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X208	1
19	YAZAKI	7116-3153-02	0.64x0.64F	BN	0.35			X208	2
20	YAZAKI	7116-3153-02	0.64x0.64F	BU	0.35			X425	2
21	YAZAKI	7116-3153-02	0.64x0.64F	TN	0.35			X432	2
22	YAZAKI	7116-3153-02	0.64x0.64F	VT	0.35			X425	4
23	YAZAKI	7116-5749-02	1.5x0.8F	WH	0.35			X426	2
24	YAZAKI	7116-5749-02	1.5x0.8F	RD	0.50			X586	1
25	YAZAKI	7116-5749-02	1.5x0.8F	BK	0.50			X586	2
