X867

Tesla Part Number
1681341-00-A
Connector
ROSENBERGER 59K2RK-1M4A4-A
Color
BK

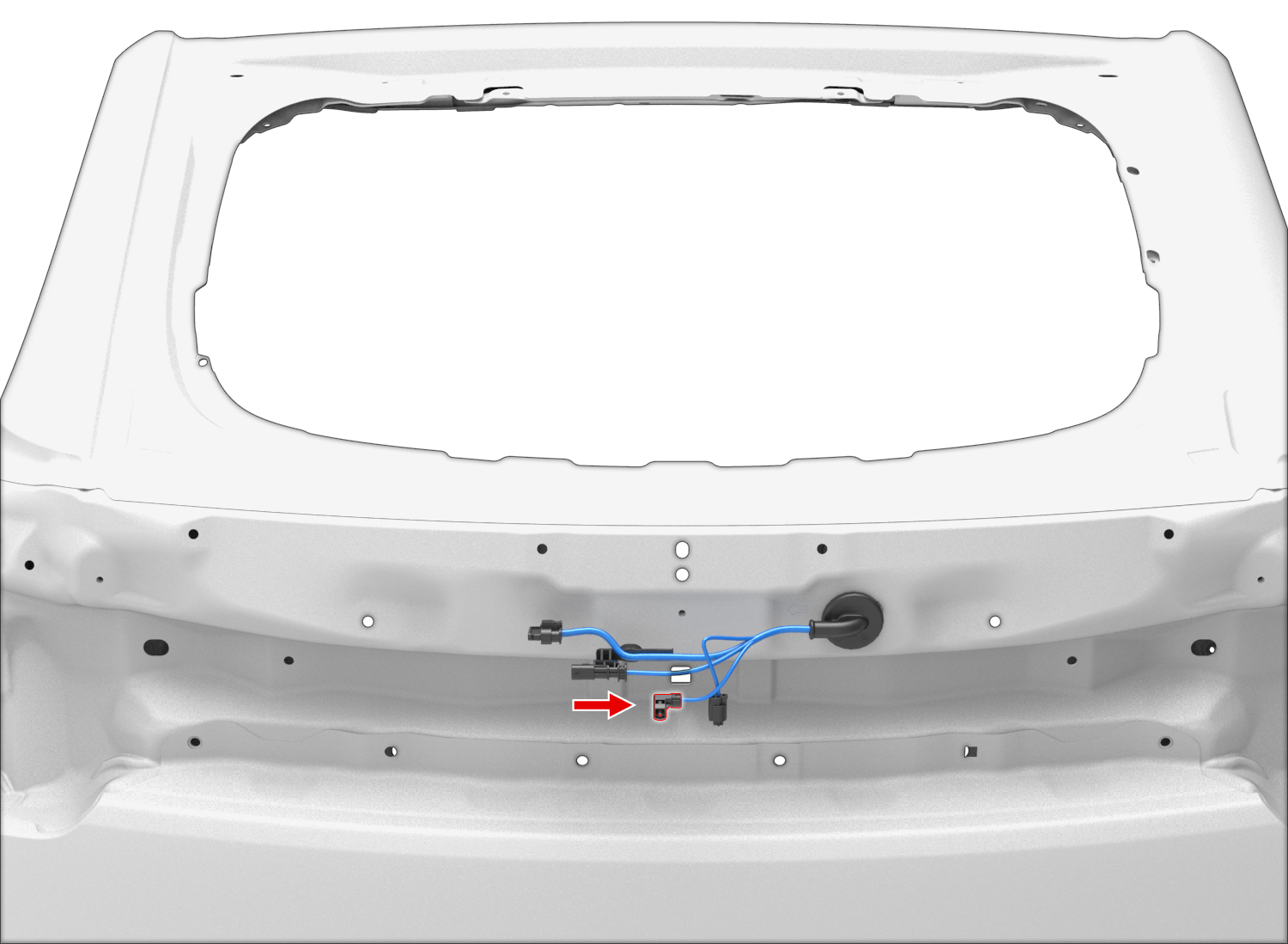

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-COAX-LCOAXBKD302PIAPIA-SEALX865F1
