X471

Tesla Part Number
1122868-01-C
Connector
ROSENBERGER L99-T01-1230
Color
VT

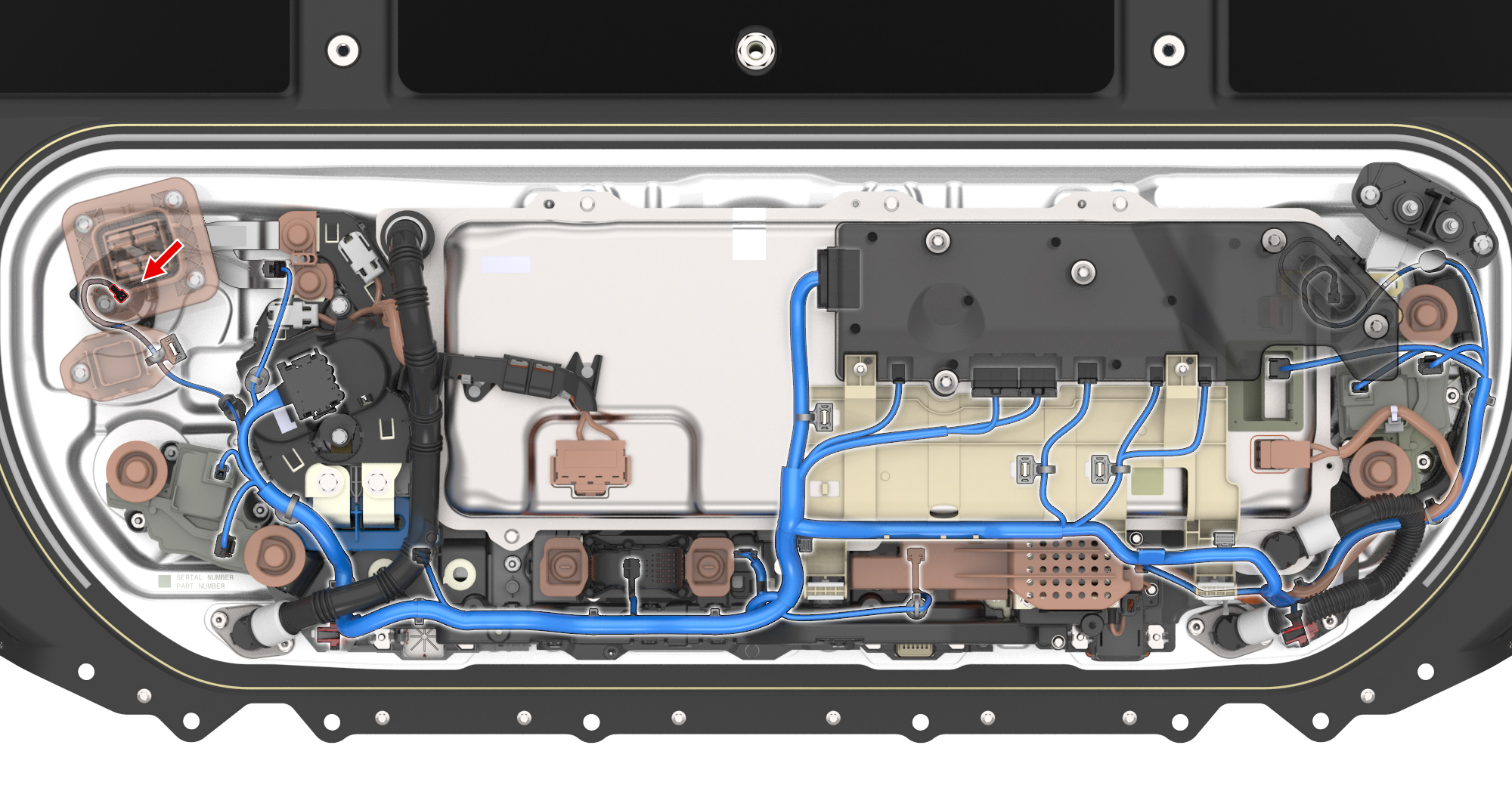

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1GENPIA-AU-26PIAGN0.13X4821
2GENPIA-AU-26PIAWH0.13X4822
