X949M

Tesla Part Number

2131965-00-A

Connector

MOLEX 33482-9001

Color

GY

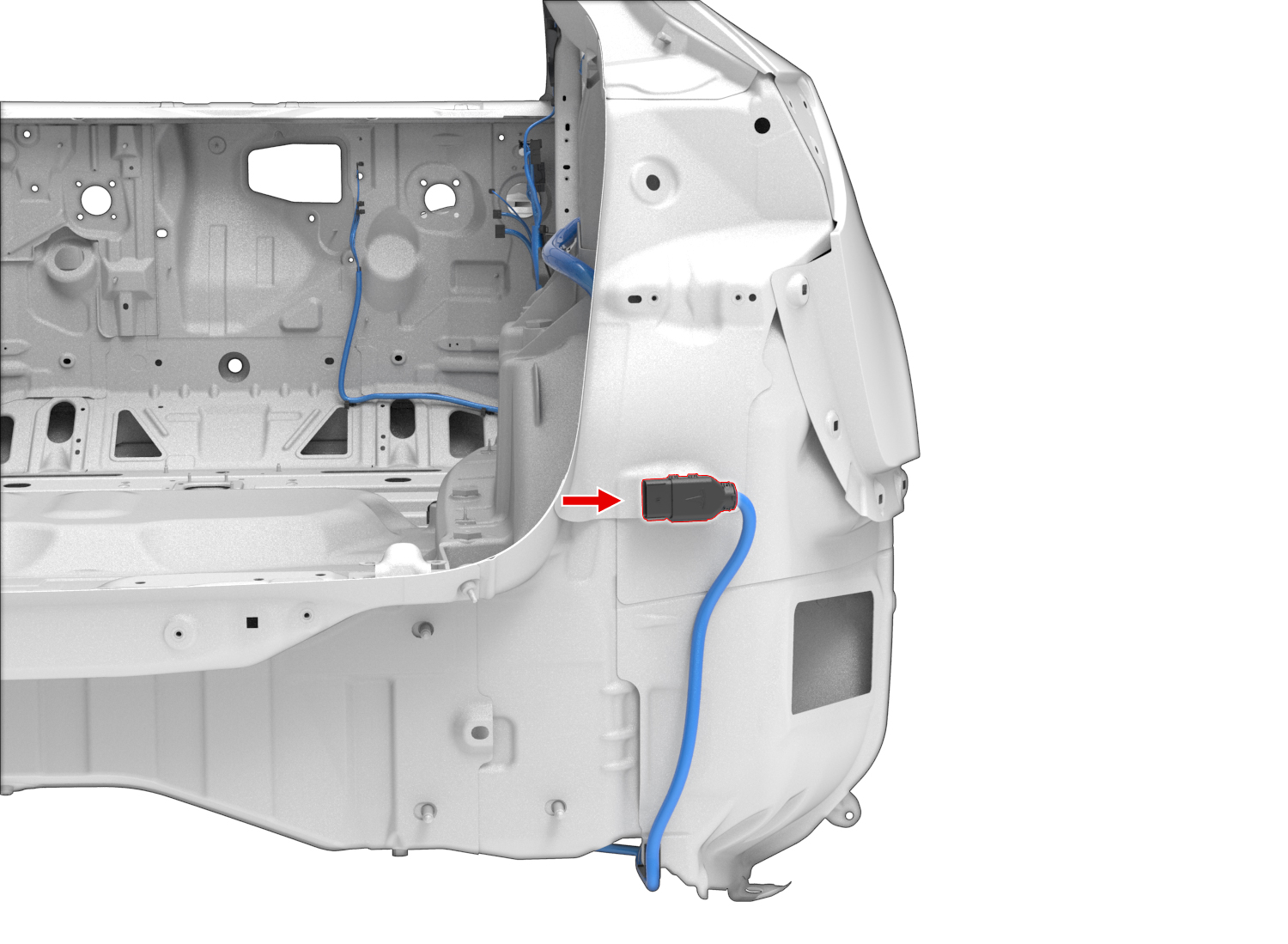

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X935M	36
2	MOLEX	33000-0004	1.5x0.8M	GN	0.35	TESLA	MAT-120-240	X935M	37
3	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X059	10
4	MOLEX	33000-0004	1.5x0.8M	YE	0.35	TESLA	MAT-120-240	X051	39
5	unused
6	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X935M	33
7	MOLEX	33000-0002	1.5x0.8M	BK	0.75	TESLA	MAT-120-240	G042	15
8	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X051	38
9	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X051	24
10	MOLEX	33000-0004	1.5x0.8M	VT	0.35	TESLA	MAT-120-240	X051	41
11	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X935M	38
12	MOLEX	33000-0004	1.5x0.8M	BU	0.35	TESLA	MAT-120-240	X051	9
13	unused
14	MOLEX	33000-0004	1.5x0.8M	GY	0.35	TESLA	MAT-120-240	X935M	59
15	MOLEX	33000-0004	1.5x0.8M	WH	0.35	TESLA	MAT-120-240	X935M	60
16	MOLEX	33000-0004	1.5x0.8M	RD	0.35	TESLA	MAT-120-240	X050	47
