X887F

Tesla Part Number
1930762-00-A
Connector
AMP 2-2312192-1
Color
BK

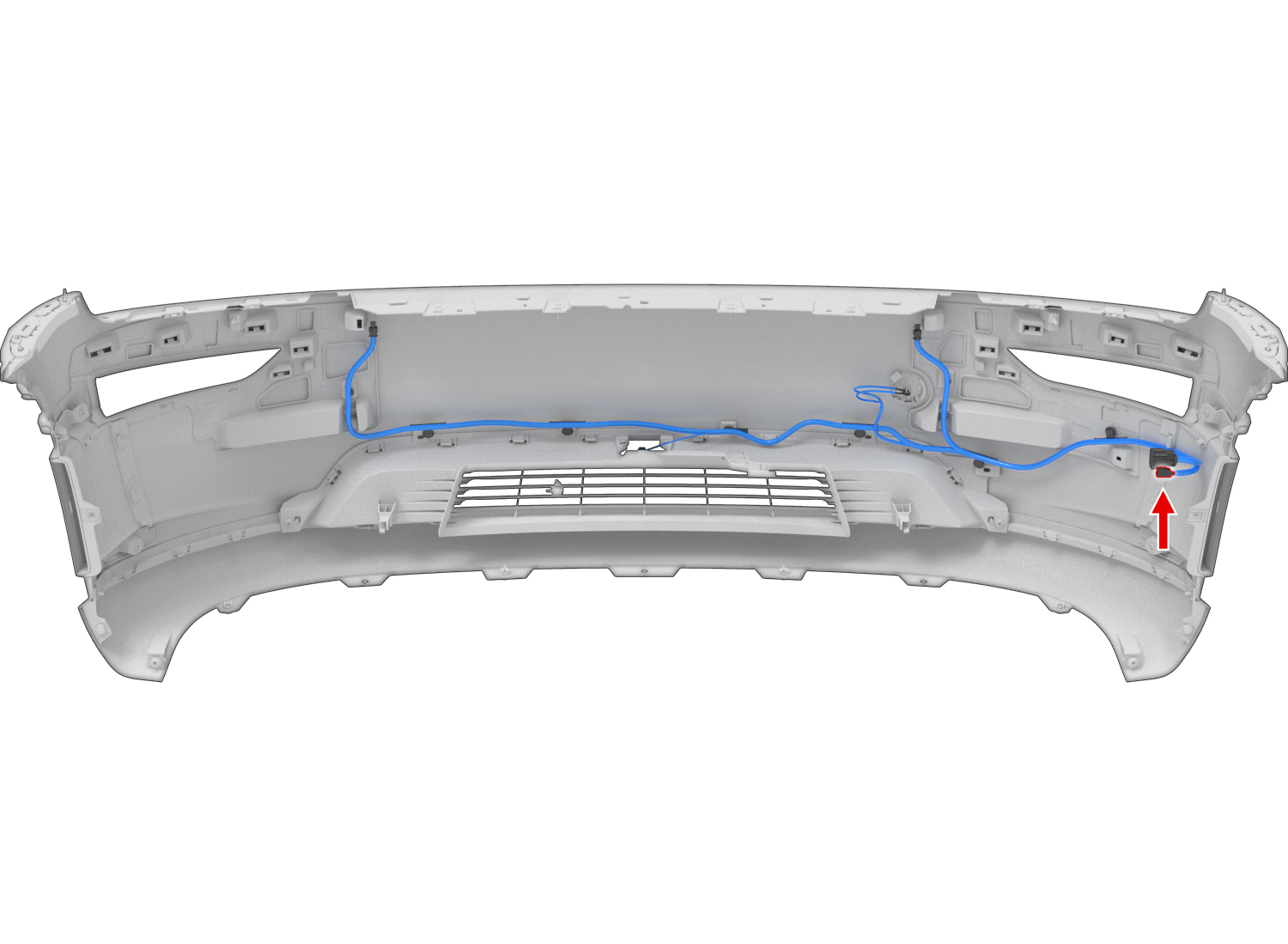

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1AMP2298488-1COAXBKD302PIAPIA-SEALX8951
