X030B

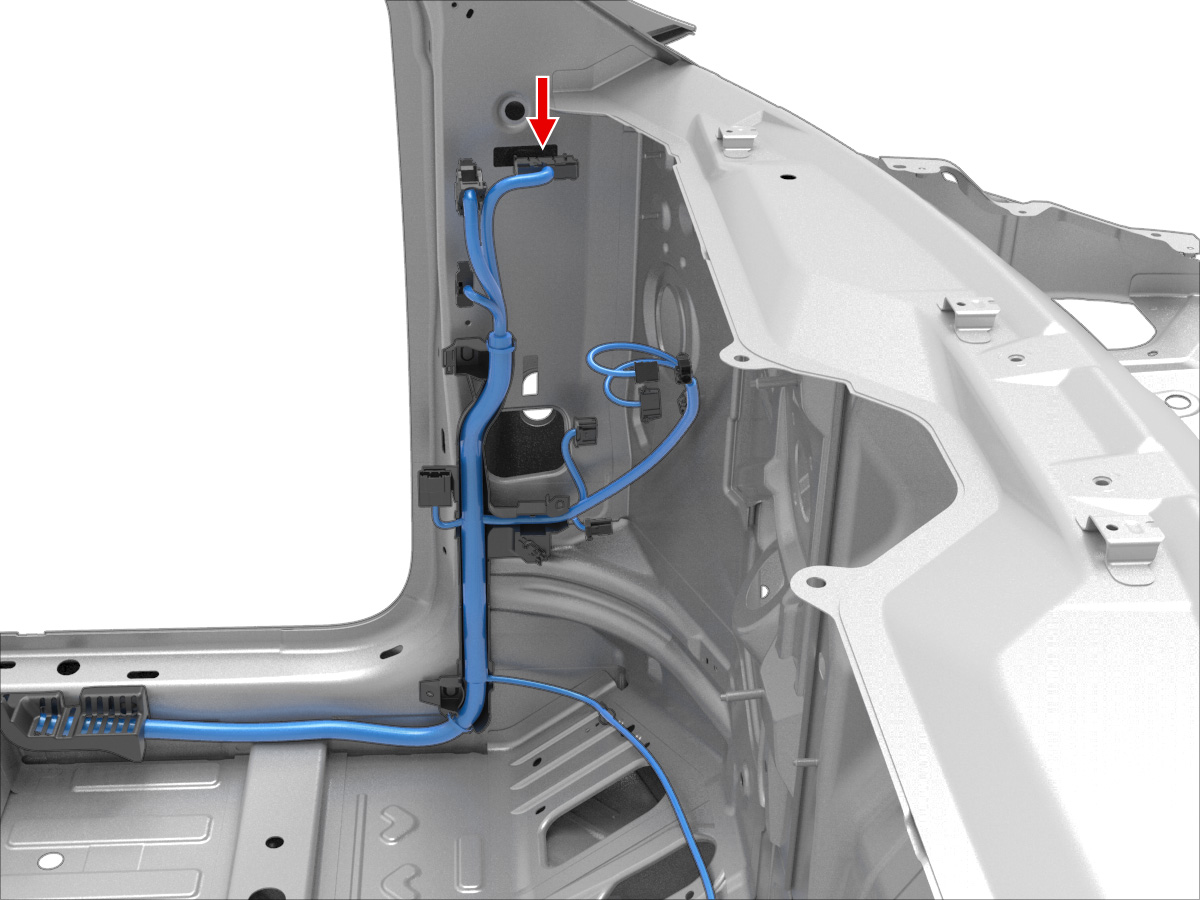

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X957F | 11 | ||
| 2 | unused | ||||||||
| 3 | SUMITOMO | 8240-0214 | 1.5x0.64F | BN | 2.00 | X194 | 1 | ||
| 4 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X194 | 2 | ||
| 5 | unused | ||||||||
| 6 | SUMITOMO | 8240-0214 | 1.5x0.64F | GY | 2.00 | X951M | 12 | ||
| 7 | SUMITOMO | 8240-0214 | 1.5x0.64F | YE | 2.00 | X951M | 11 | ||
| 8 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 1.50 | X921F | 3 | ||
| 9 | unused | ||||||||
| 10 | SUMITOMO | 8240-0214 | 1.5x0.64F | RD | 2.00 | X165 | 4 | ||
| 11 | SUMITOMO | 8240-4932 | 4.8x0.8F | RD | 3.00 | X921F | 8 | ||
