X098

Tesla Part Number

1092471-00-A

Connector

SUMITOMO 6189-7077

Color

GY

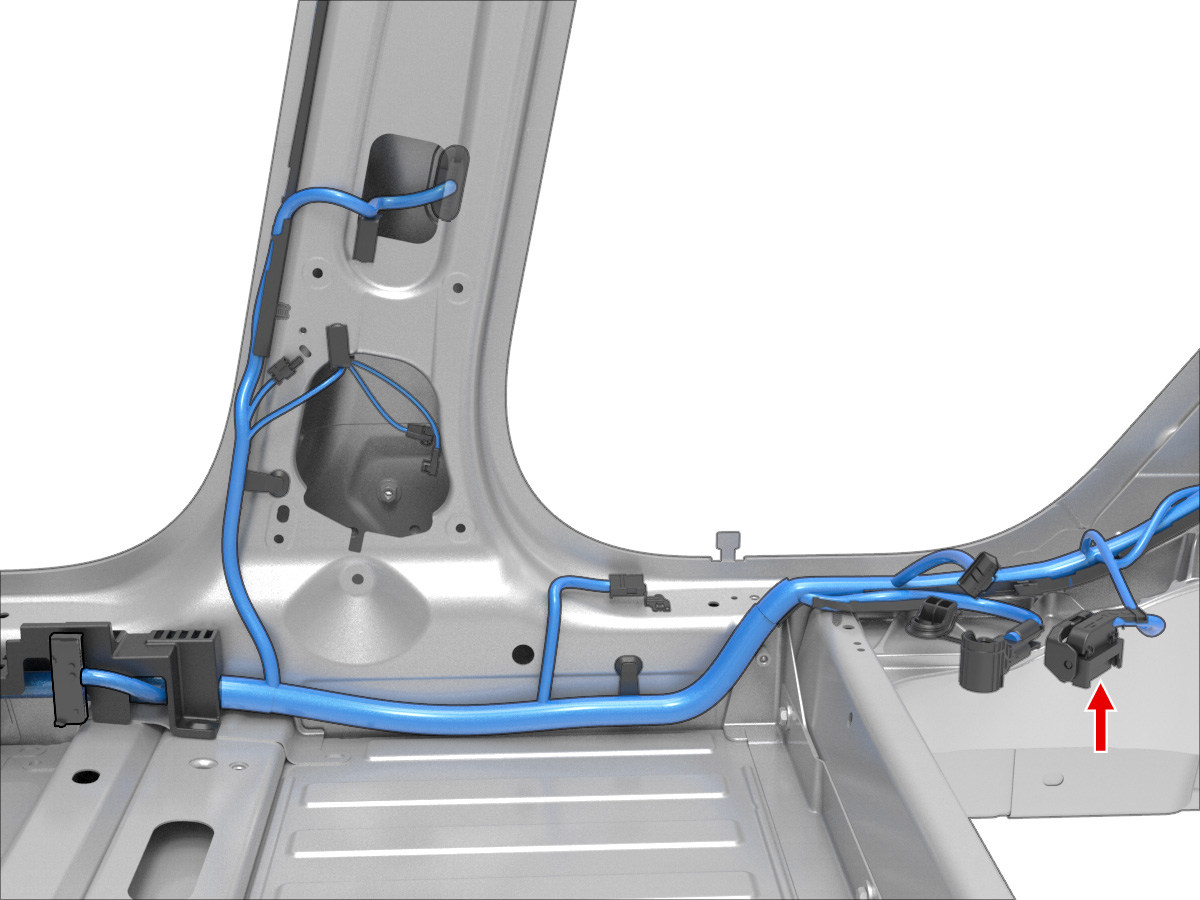

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3455	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X908F	22
2	unused
3	SUMITOMO	8100-3455	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X908F	23
4	unused
5	unused
6	SUMITOMO	8100-3455	0.64x0.64FS	BK	0.35	SUMITOMO	7165-1312	X935M	28
7	SUMITOMO	8100-3455	0.64x0.64FS	GN	0.35	SUMITOMO	7165-1312	X935M	29
8	SUMITOMO	8100-0461	2.3x0.64FS	BU	0.75	SUMITOMO	7165-0342	X050	39
9	SUMITOMO	8100-0461	2.3x0.64FS	BK	0.75	SUMITOMO	7165-0342	G032	13
10	SUMITOMO	8100-3455	0.64x0.64FS	YE	0.35	SUMITOMO	7165-1312	X935M	49
11	SUMITOMO	8100-3455	0.64x0.64FS	TN	0.35	SUMITOMO	7165-1312	X935M	32
12	SUMITOMO	8240-0287	0.64x0.64FS	GY	0.50	SUMITOMO	7165-1198	X051	42
13	SUMITOMO	8100-3455	0.64x0.64FS	WH	0.35	SUMITOMO	7165-1312	X935M	50
14	unused
15	SUMITOMO	8100-3455	0.64x0.64FS	BN	0.35	SUMITOMO	7165-1312	X050	33
16	SUMITOMO	8100-3455	0.64x0.64FS	BN/WH	0.35	SUMITOMO	7165-1312	X050	34
17	unused
18	SUMITOMO	8100-0461	2.3x0.64FS	TN	1.00	SUMITOMO	7165-0343	X050	19
19	unused
20	unused
21	unused
22	unused
23	unused
24	unused
25	unused
26	unused
