X479

Tesla Part Number

2097770-00-A

Connector

AMP 1-2188225-2

Color

BK

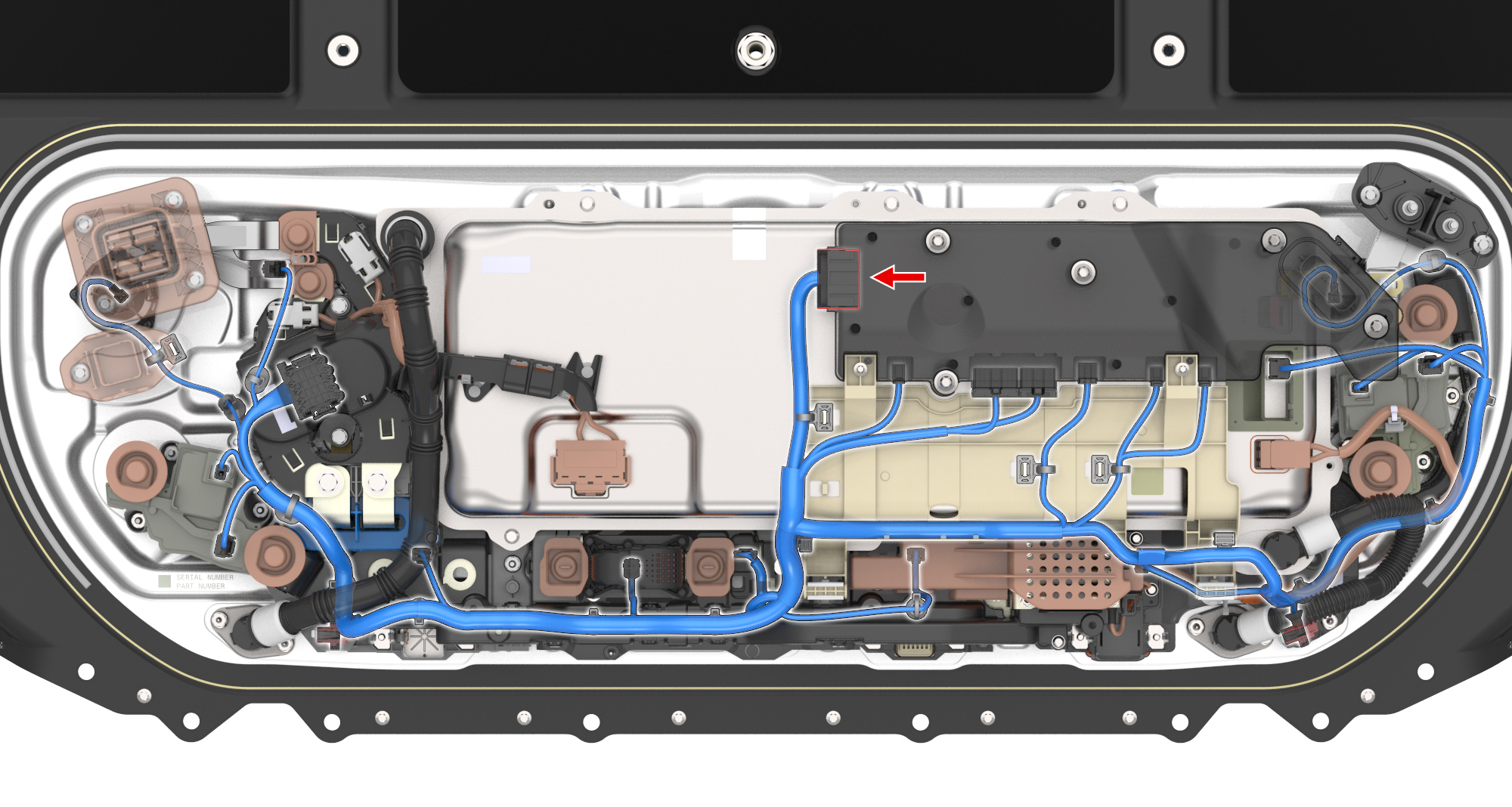

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	2109006-2	1.5x0.64F	RD	0.75			X477	4
2	AMP	2109006-2	1.5x0.64F	WH	0.75			X477	3
3	AMP	2109006-2	1.5x0.64F	BN	0.75			X476	2
4	AMP	2109006-2	1.5x0.64F	YE	0.75			X476	1
5	AMP	2219299-1	0.50x0.40F	RD	0.35			X423	2
6	unused
7	AMP	2219299-1	0.50x0.40F	GY	0.35			X420	1
8	unused
9	AMP	2219299-1	0.50x0.40F	RD	0.35			X477	2
10	AMP	2219299-1	0.50x0.40F	BN	0.35			X420	12
11	unused
12	AMP	2109006-2	1.5x0.64F	WH	0.75			X474	1
13	AMP	2109006-2	1.5x0.64F	YE	0.75			X474	2
14	AMP	2109006-1	1.5x0.64F	BN	0.35			X424	3
15	AMP	2109006-1	1.5x0.64F	BU	0.35			X420	5
16	AMP	2109006-2	1.5x0.64F	YE	0.75			X477	8
17	AMP	2109006-2	1.5x0.64F	RD	0.75			X477	7
18	unused
19	unused
20	AMP	2219299-1	0.50x0.40F	WH	0.35			X420	11
21	AMP	2219299-1	0.50x0.40F	BU	0.35			X420	10
22	AMP	2219299-1	0.50x0.40F	RD	0.35			X424	2
23	AMP	2219299-1	0.50x0.40F	BN	0.35			X477	5
24	AMP	2219299-1	0.50x0.40F	YE	0.35			X477	9
25	AMP	2109006-1	1.5x0.64F	WH	0.35			X421	3
26	AMP	2109006-1	1.5x0.64F	YE	0.35			X477	6
27	AMP	2109006-1	1.5x0.64F	RD	0.35			X420	6
28	AMP	2109006-1	1.5x0.64F	WH	0.35			X420	4
