X911M

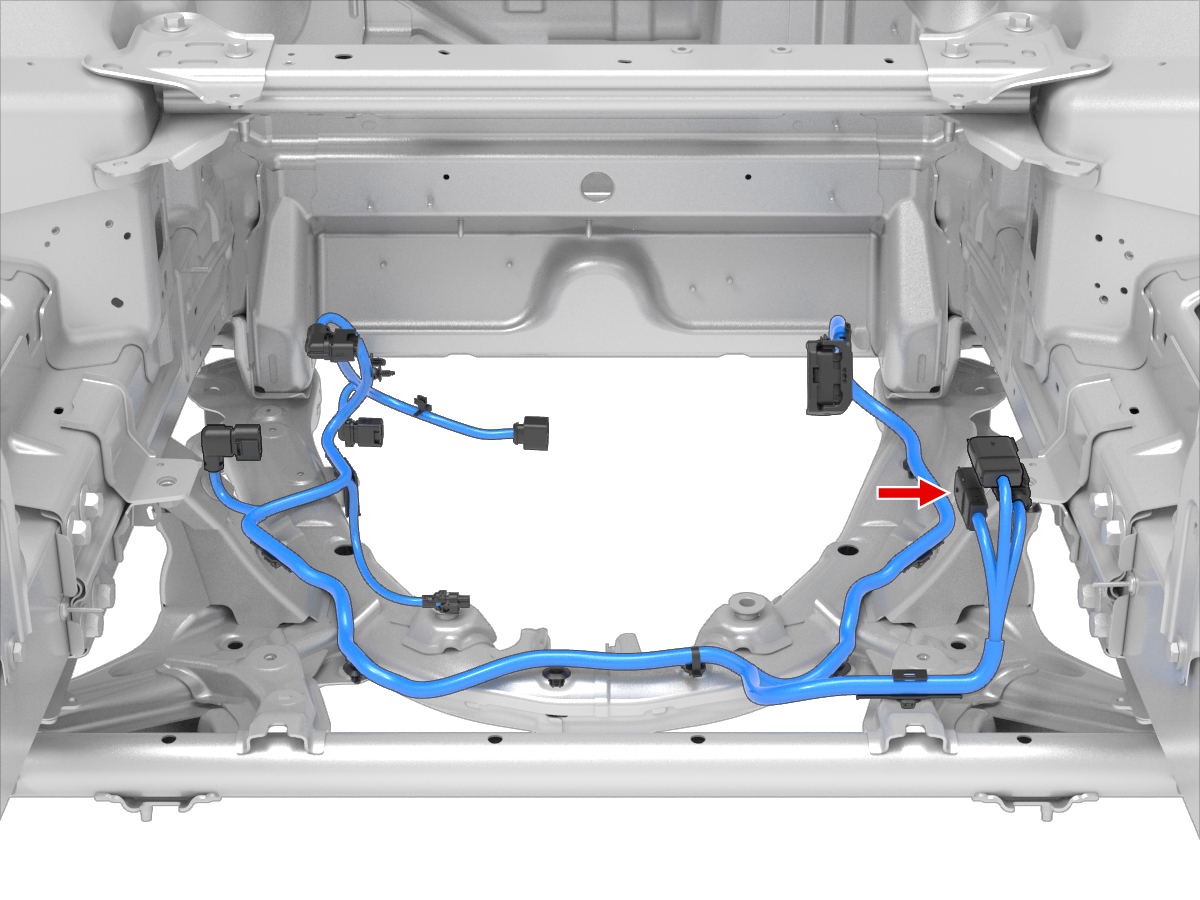

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0002 | 1.5x0.8M | VT | 1.00 | TESLA | MAT-120-240 | X095 | 1 |
| 2 | MOLEX | 33000-0004 | 1.5x0.8M | BU/WH | 0.35 | TESLA | MAT-120-240 | X093 | 12 |
| 3 | MOLEX | 33000-0004 | 1.5x0.8M | BU | 0.35 | TESLA | MAT-120-240 | X093 | 2 |
| 4 | unused | ||||||||
| 5 | unused | ||||||||
| 6 | unused | ||||||||
| 7 | unused | ||||||||
| 8 | MOLEX | 33000-0004 | 1.5x0.8M | BK | 0.35 | TESLA | MAT-120-240 | X093 | 13 |
| 9 | MOLEX | 33000-0002 | 1.5x0.8M | BK | 1.00 | TESLA | MAT-120-240 | X095 | 3 |
| 10 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.35 | TESLA | MAT-120-240 | X093 | 3 |
| 11 | unused | ||||||||
| 12 | unused | ||||||||
