X022

Tesla Part Number
1655323-00-A
Connector
FDJ 033404
Color
NA

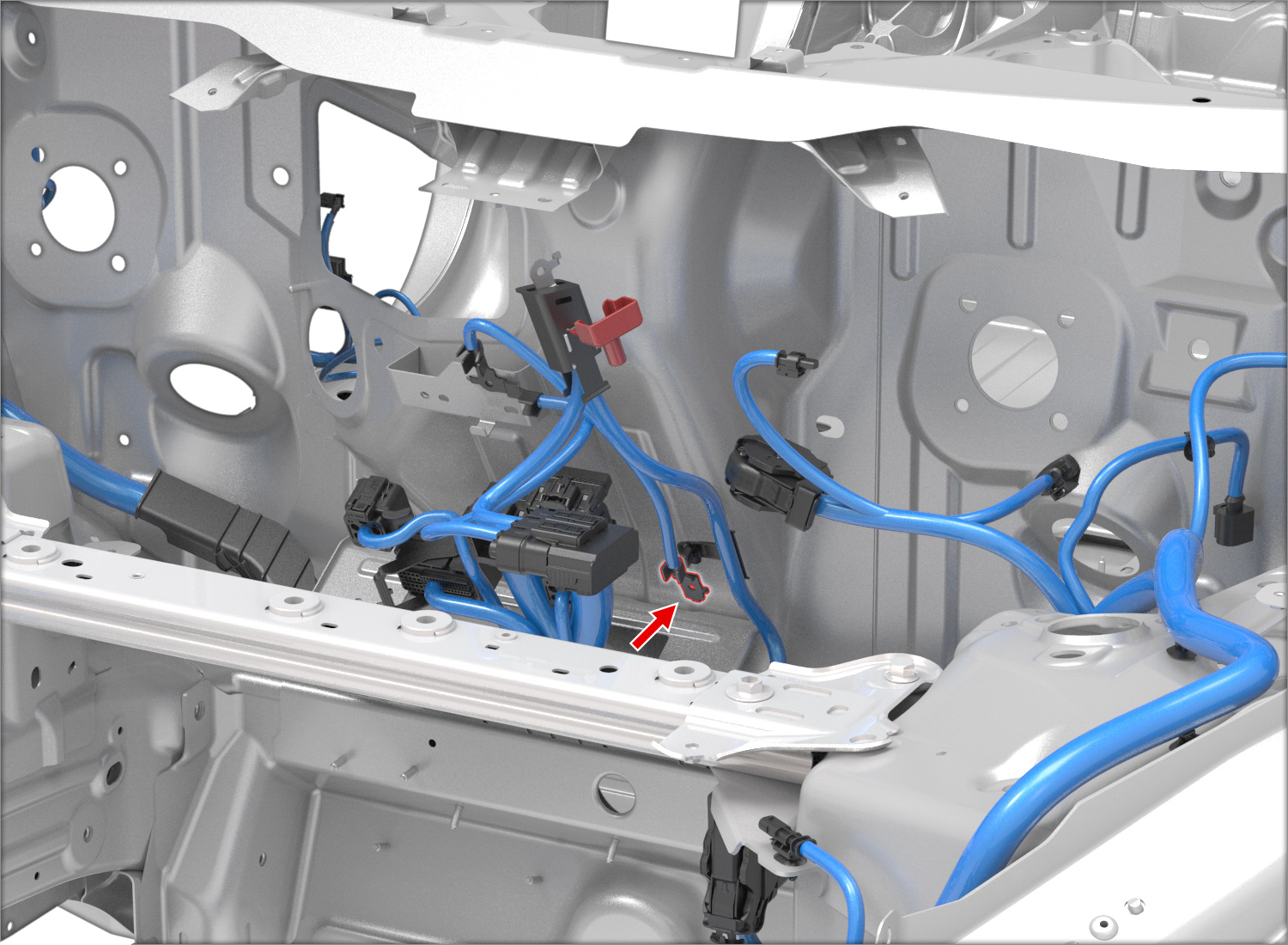

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1PIATERM-RING-SNN/ABK25.00G0012
