X201

Tesla Part Number

1834895-00-C

Connector

SUMITOMO 6189-9406

Color

BK

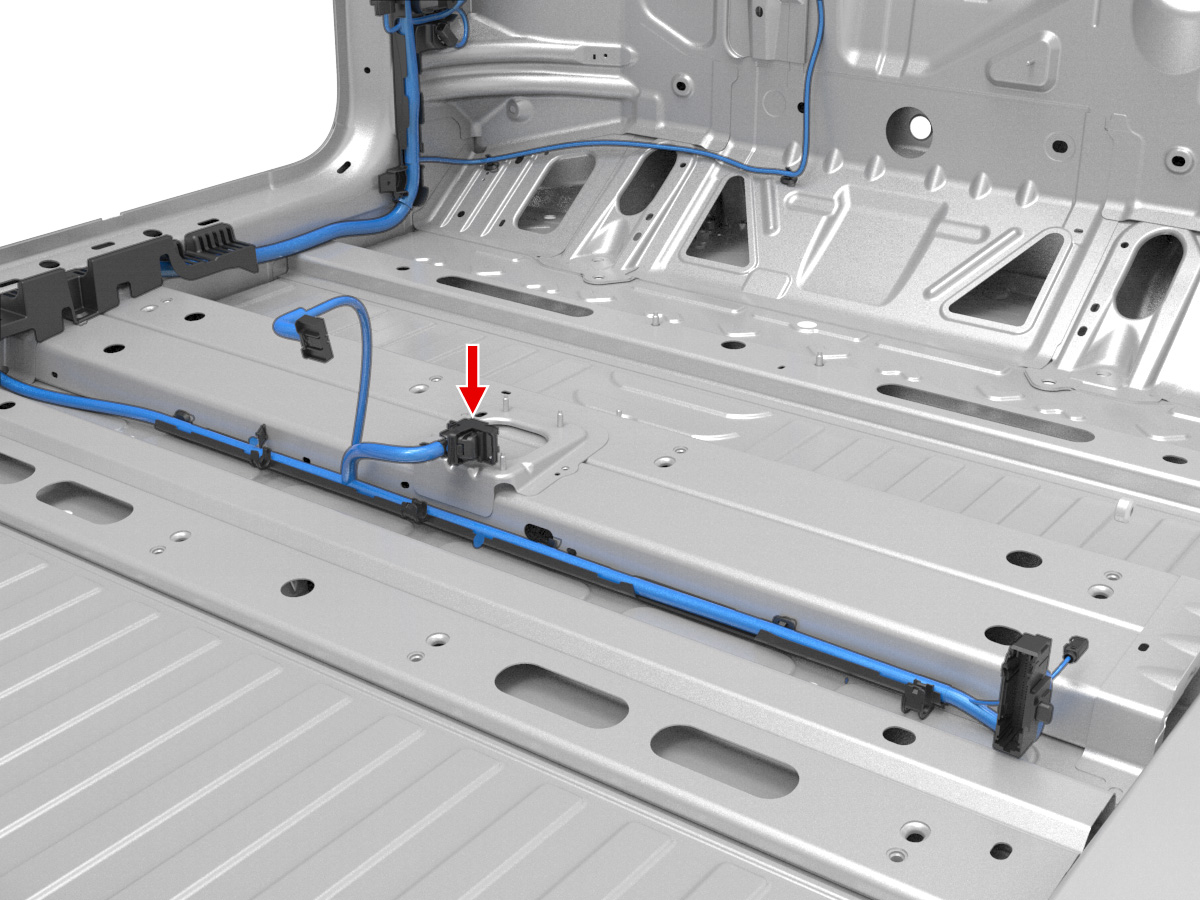

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935F	14
2	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	15
3	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X217	2
4	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X217	1
5	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909F	10
6	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909F	9
7	SUMITOMO	8240-0759	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X909F	6
8	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X909F	5
9	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	23
10	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935F	22
11	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X225	2
12	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X225	1
13
14
15	SUMITOMO	8240-0759	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X935F	56
16	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X935F	55
17	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X221	1
18	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X221	2
19	SUMITOMO	8240-0759	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X935F	42
20	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	43
21	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X219	2
22	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X219	1
23
24
25
26
27
28
29	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X951M	8
30	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X951M	7
31
32
33
34
35	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X951M	9
36	SUMITOMO	8240-0759	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X951M	10
37	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935F	27
38	SUMITOMO	8240-0759	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X935F	26
39	SUMITOMO	8240-0759	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X206	1
40	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X206	2
41	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X935F	21
42	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935F	20
43	SUMITOMO	8240-0759	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X924M	18
44	SUMITOMO	8240-0759	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X924M	19
45	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909F	14
46	SUMITOMO	8240-0759	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X909F	7
47	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909F	1
48	SUMITOMO	8240-0759	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X909F	2
49
50
51
52
53	SUMITOMO	8240-0759	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X030A	3
54	SUMITOMO	8240-0759	0.50x0.40F	GN/WH	0.35	TESLA	MAT-110-130	X030A	4
55	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	12
56	SUMITOMO	8240-0759	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935F	50
57
58
59
60
61
62	SUMITOMO	8240-0759	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	5
63
64
65
66
67
68
69
70
71	SUMITOMO	8240-0759	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X031	45
72	SUMITOMO	8240-0759	0.50x0.40F	YE/DKBU	0.35	TESLA	MAT-110-130	X031	44
