X485

Tesla Part Number
2131901-01-A
Connector
DELPHI 35871010
Color
BK

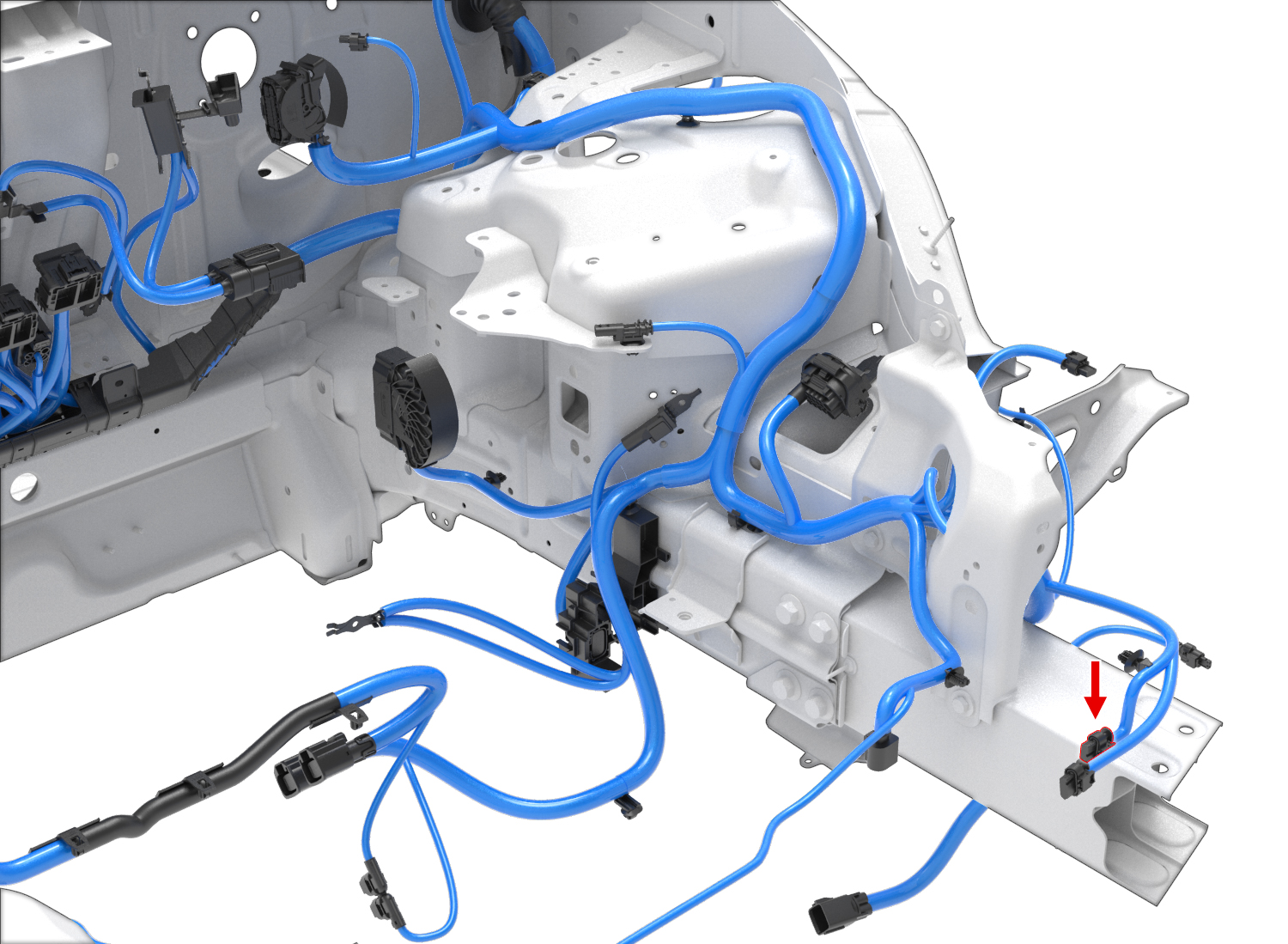

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI139591201.2x0.6FSRD0.35DELPHI13887349X0102
2DELPHI139591201.2x0.6FSBK0.35DELPHI13887349G0118
3DELPHI139591201.2x0.6FSGN0.35DELPHI13887349X01058
4unused
5unused
