X926M

Tesla Part Number

1848859-00-C

Connector

KSE K30M31221

Color

WH

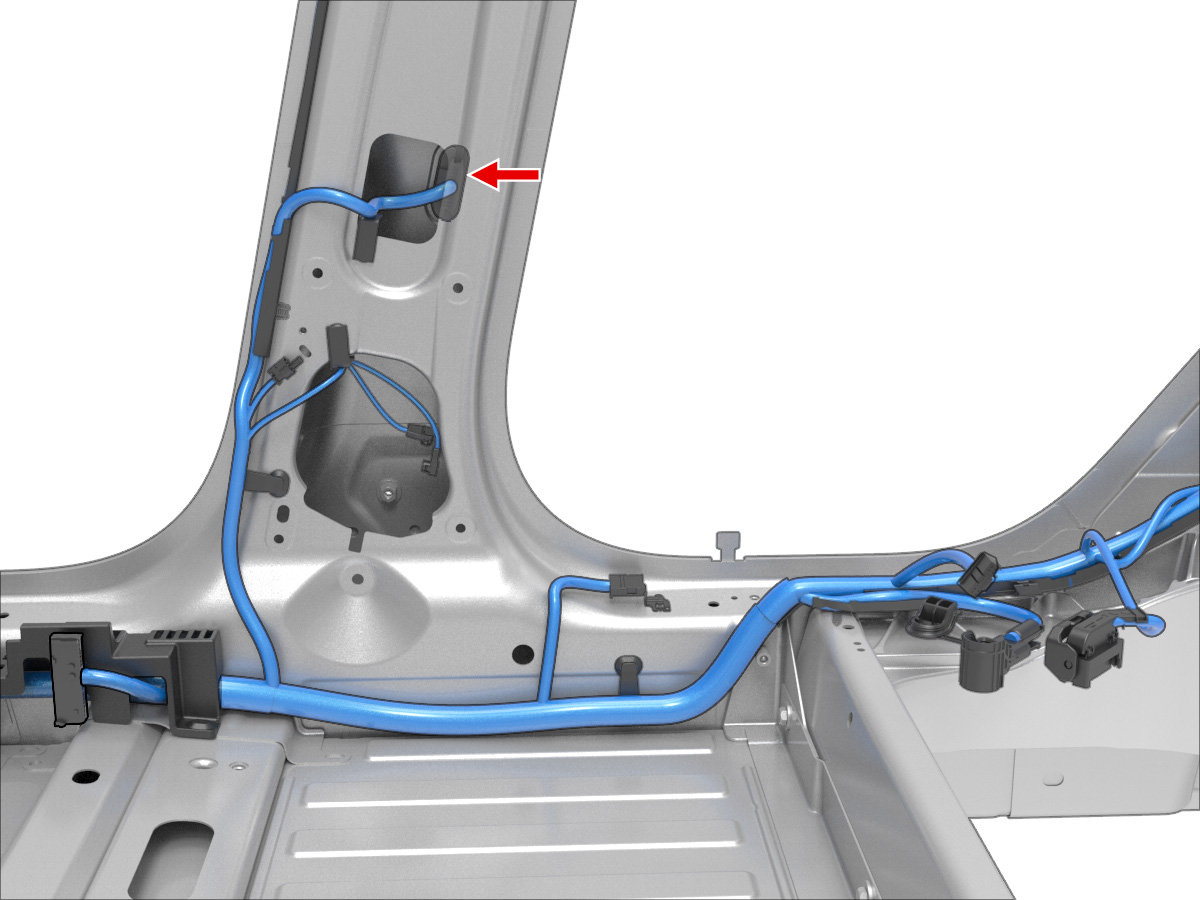

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	YAZAKI	7114-5748-02	1.5x0.64M	WH	1.50			X051	2
2	YAZAKI	7114-5748-02	1.5x0.64M	GN	1.50			X051	1
3	YAZAKI	7114-4729-02	0.64x0.64M	RD	0.35			X051	6
4	YAZAKI	7114-4729-02	0.64x0.64M	BU	0.35			X051	22
5	YAZAKI	7114-4729-02	0.64x0.64M	GY	0.35			X050	48
6	YAZAKI	7114-4729-02	0.64x0.64M	WH	0.35			X050	25
7	YAZAKI	7114-4729-02	0.64x0.64M	RD	0.35			X051	25
8	YAZAKI	7114-4729-02	0.64x0.64M	VT	0.35			X050	30
9	YAZAKI	7114-4729-02	0.64x0.64M	WH	0.35			X050	31
10	YAZAKI	7114-4729-02	0.64x0.64M	GY	0.35			X050	54
11	YAZAKI	7114-5746-02	1.5x0.64M	GN	0.35			X051	23
12	YAZAKI	7114-5746-02	1.5x0.64M	YE	0.35			X059	27
13	YAZAKI	7114-5746-02	1.5x0.64M	GY	0.35			X050	29
14	unused
15	YAZAKI	7114-5746-02	1.5x0.64M	BN	0.50			X050	15
16	unused
17	YAZAKI	7114-4729-02	0.64x0.64M	WH	0.35			X051	44
18	YAZAKI	7114-4729-02	0.64x0.64M	GN	0.35			X935M	20
19	YAZAKI	7114-4729-02	0.64x0.64M	RD	0.35			X935M	21
20	YAZAKI	7114-4729-02	0.64x0.64M	BU	0.35			X051	27
21	YAZAKI	7114-4729-02	0.64x0.64M	TN	0.35			X050	53
22	YAZAKI	7114-4729-02	0.64x0.64M	VT	0.35			X051	11
23	YAZAKI	7114-5746-02	1.5x0.64M	WH	0.35			X051	21
24	YAZAKI	7114-5746-02	1.5x0.64M	RD	0.50			X560	3
25	YAZAKI	7114-5746-02	1.5x0.64M	BK	0.50			X560	4
