U 型夹 - 制动器（拆卸和更换）

校正代码 33253102 0.18 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：执行下述程序时，请参阅人员保护确认已穿戴适当的个人防护装备 (PPE)。

拆卸

  1. Open the LH front door.
  2. Lower the LH front window.
  3. Move the LH front seat backwards.
  4. Disconnect LV power. See 低压电源（断开和连接）.
  5. Remove the driver footwell cover. See 盖板 - 脚部空间 - 驾驶位（拆卸和更换）.
  6. Remove the driver knee airbag. See 膝部气囊 - 驾驶位（拆卸和更换）.

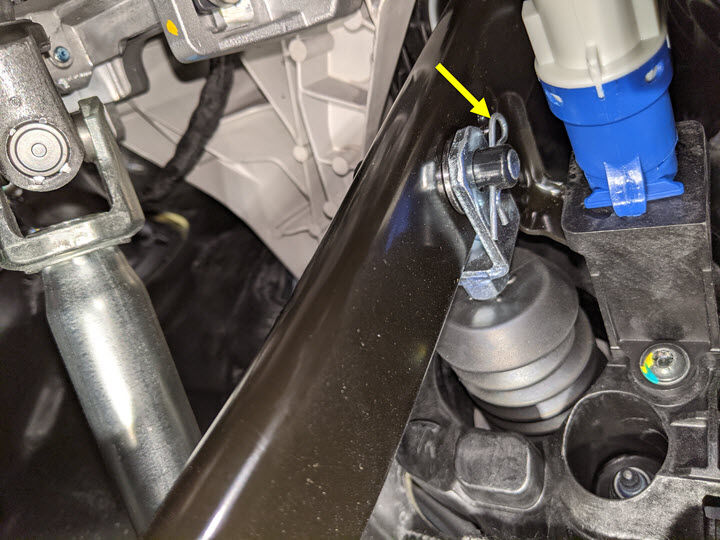

  7. Release the cotter clip that attaches the brake clevis clip pin to the pedal assembly.
    注
    Remove the cotter clip by hand.

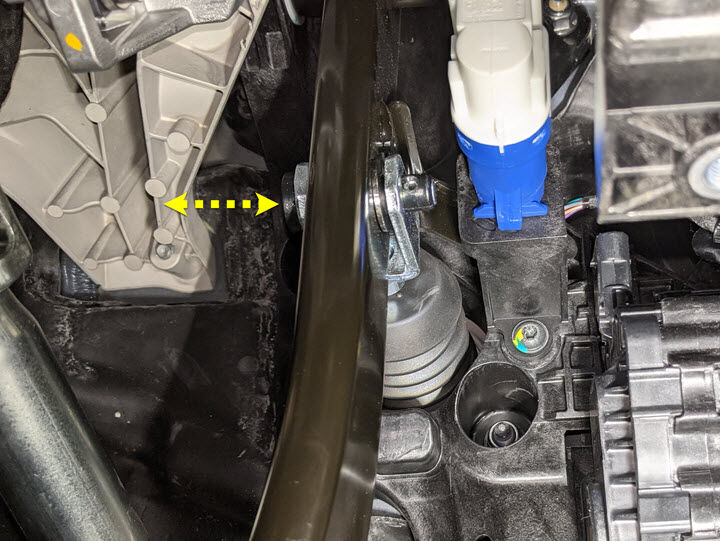

  8. Remove the brake clevis clip pin from the brake pedal assembly, and then release the clevis clip from the pedal.
    注
    Wiggle the brake pedal to aid in pin removal.
    提示
    推荐使用以下工具：
    • Plastic trim tool

安装

  1. Align the brake pedal with the iBooster rod, and then install the brake clevis clip pin that attaches the clevis clip to the brake pedal assembly.
  2. Install the cotter clip that attaches the brake clevis clip pin to the pedal assembly.
    注
    Move all parts to original position. Replace the cotter clip if damaged.
  3. Install the driver knee airbag. See 膝部气囊 - 驾驶位（拆卸和更换）.
  4. Install the driver footwell cover. See 盖板 - 脚部空间 - 驾驶位（拆卸和更换）.
  5. Connect LV power. See 低压电源（断开和连接）.
  6. Move the LH front seat to original position.
  7. Raise the LH front window.
  8. Close the LH front door.
