Brake Pads - Front (Ceramic Brakes) ((拆卸和更换))

校正代码 33010732 0.88 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

  • 2026-01-22: Released new procedure.

Procedure

  1. Prepare the vehicle for raising. See 举升车辆 - 双柱举升机.
    注
    Set air suspension to "Jack Mode".
  2. Open the LH front door and lower the window.
  3. Remove the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  4. Place absorbent material underneath the brake reservoir area.
  5. Clean area around the brake fluid reservoir and remove the brake reservoir cap.
  6. Remove both front wheels. See 轮毂总成（拆卸和安装）.

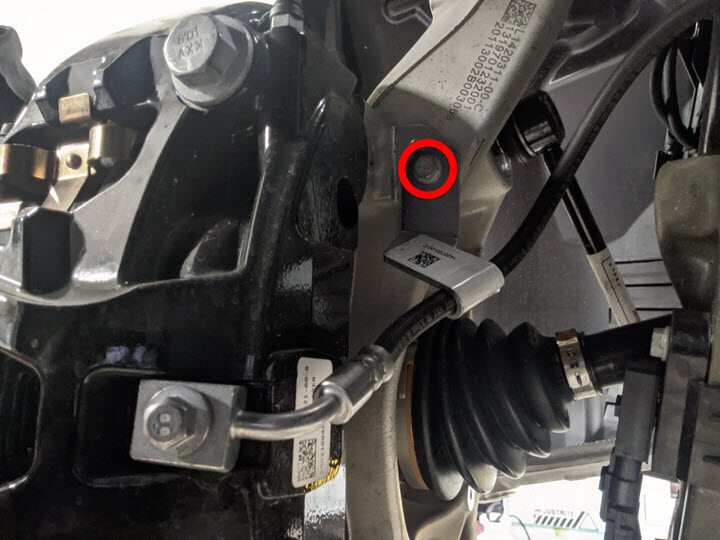

  7. Remove the bolt that attaches the LH front brake hose bracket to the LH front knuckle.

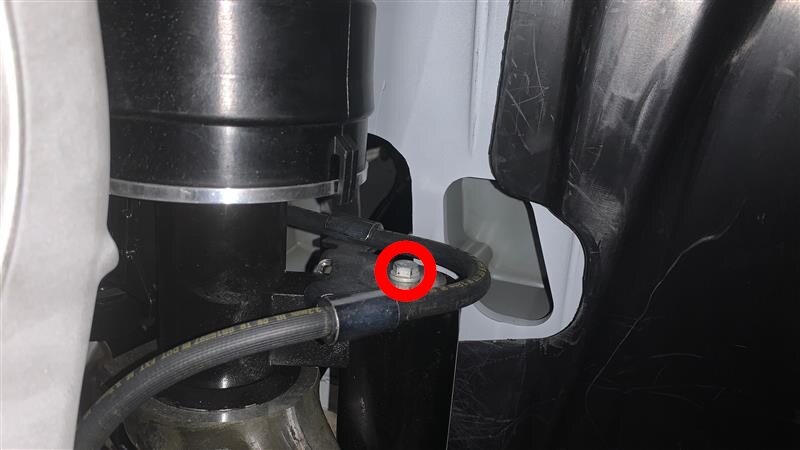

  8. Remove the bolt that attaches the LH front brake line to the LH front air spring module.

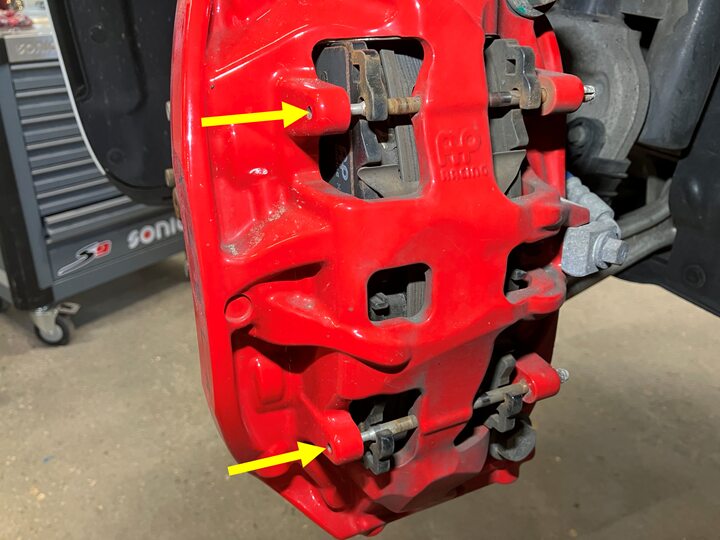

  9. Remove and discard the LH front brake pad retaining pins.

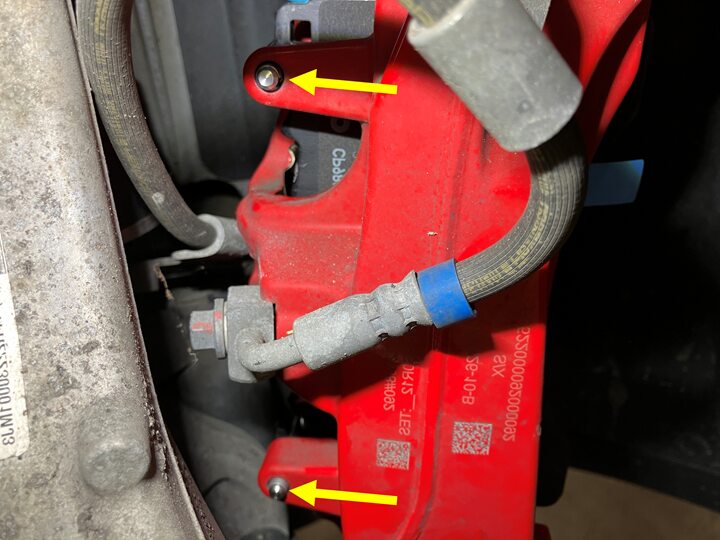

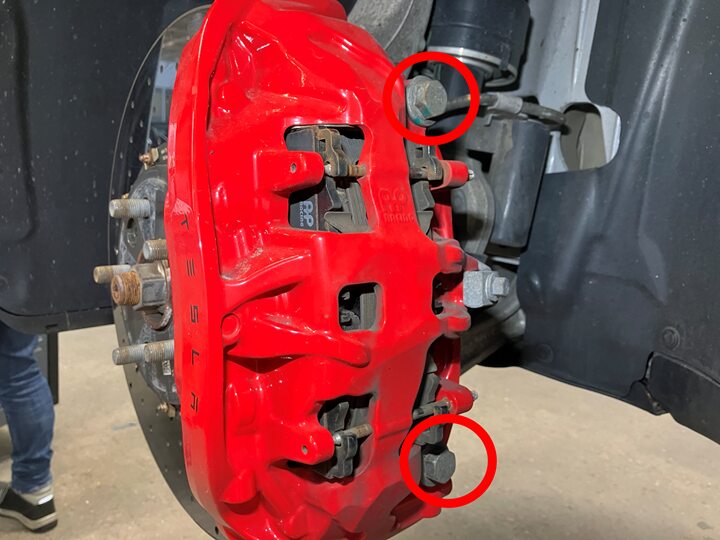

  10. Remove the bolts the attach the LH front brake caliper to the the knuckle.
    注

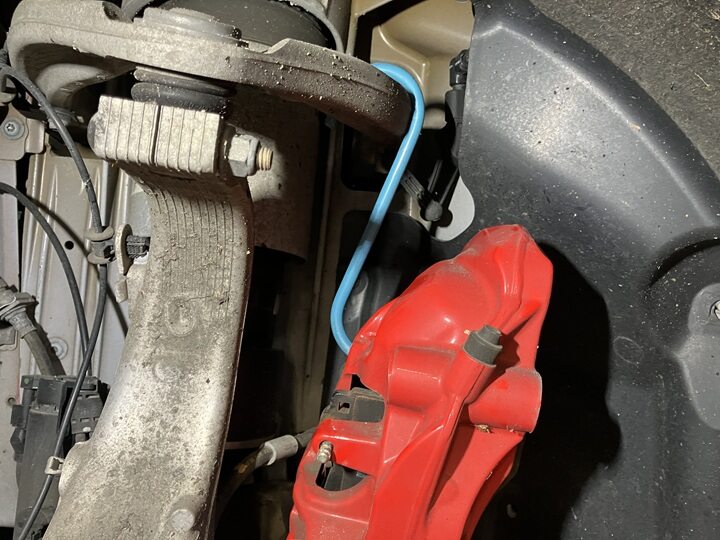

    Hang the caliper to the upper control arm with an S-hook.

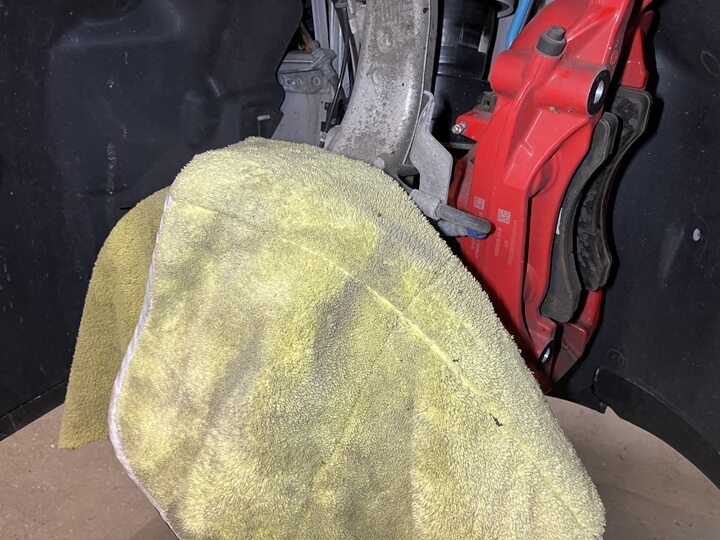

  11. Install a shop rag onto the LH front brake disk.

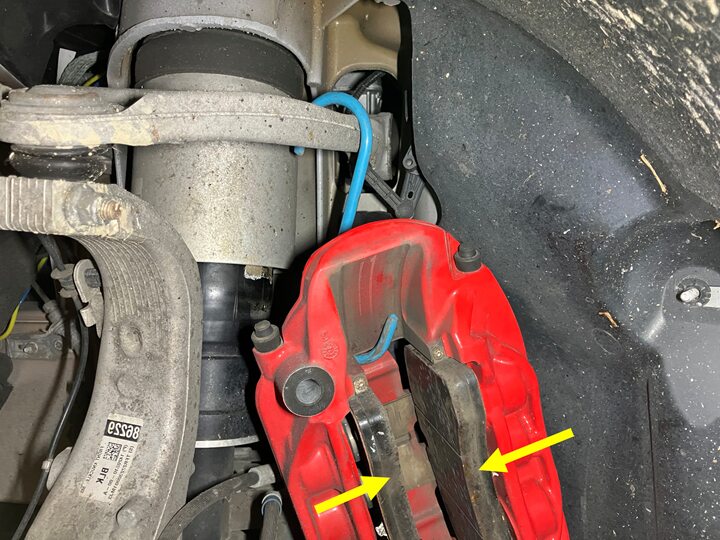

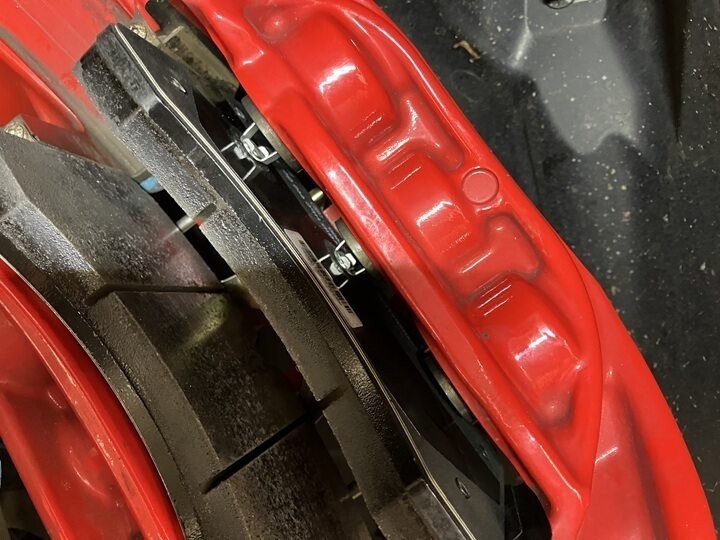

  12. Remove the brake pads from the LH front caliper.

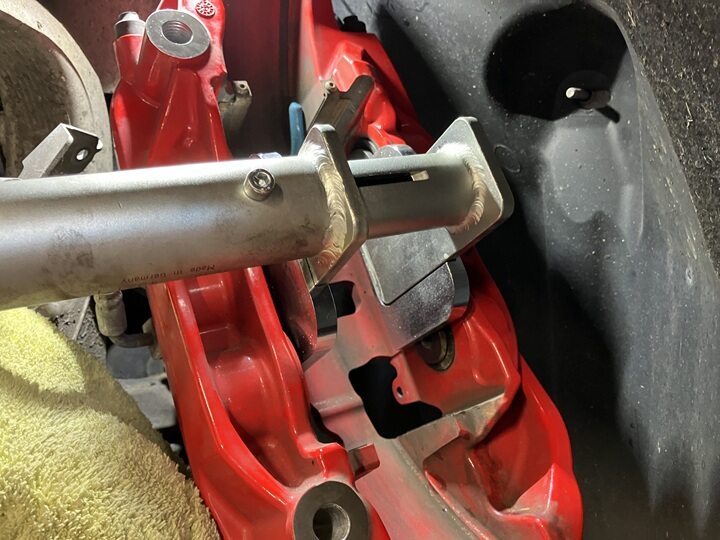

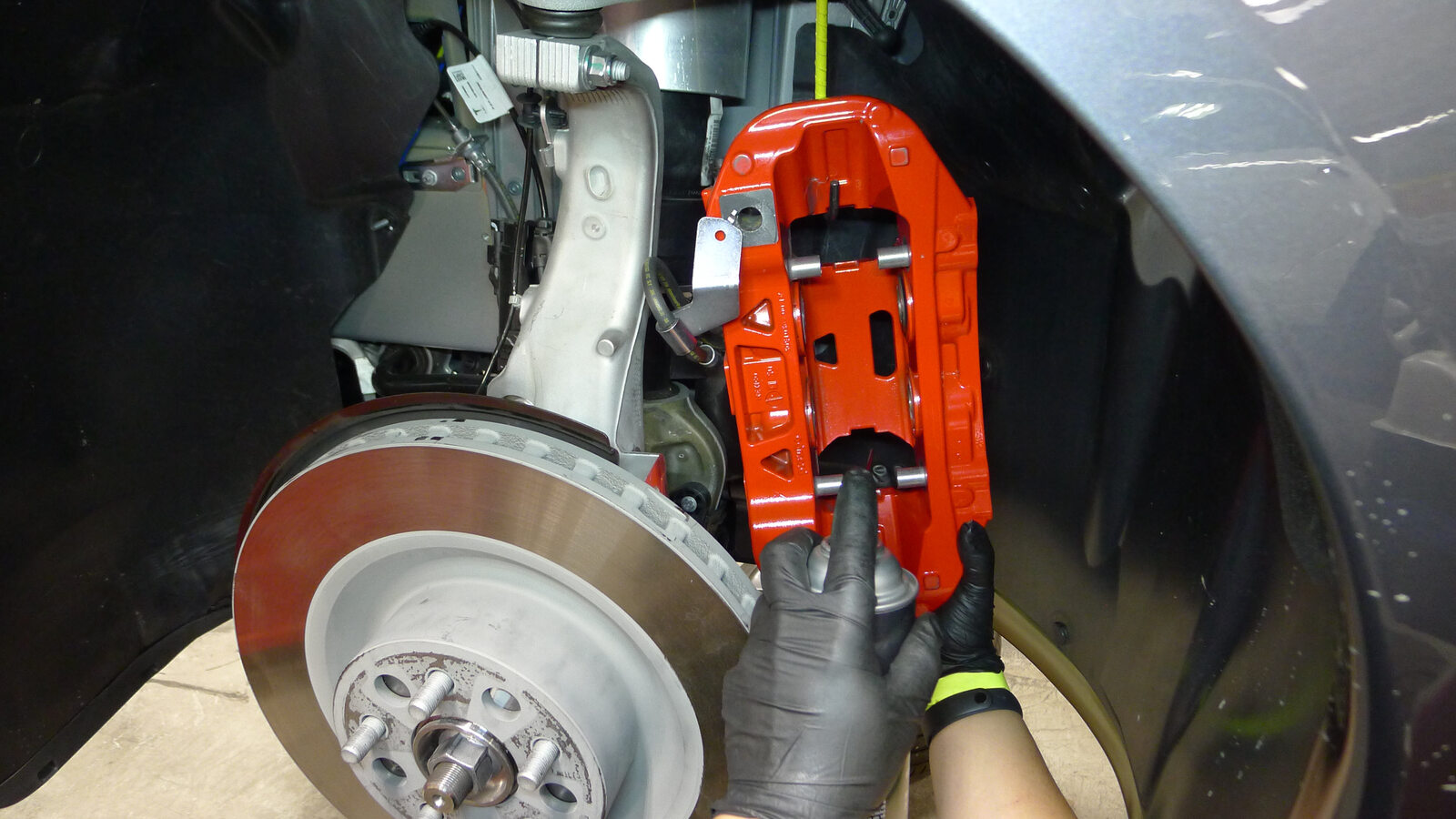

  13. Fully push the pistons back into the LH front brake caliper.

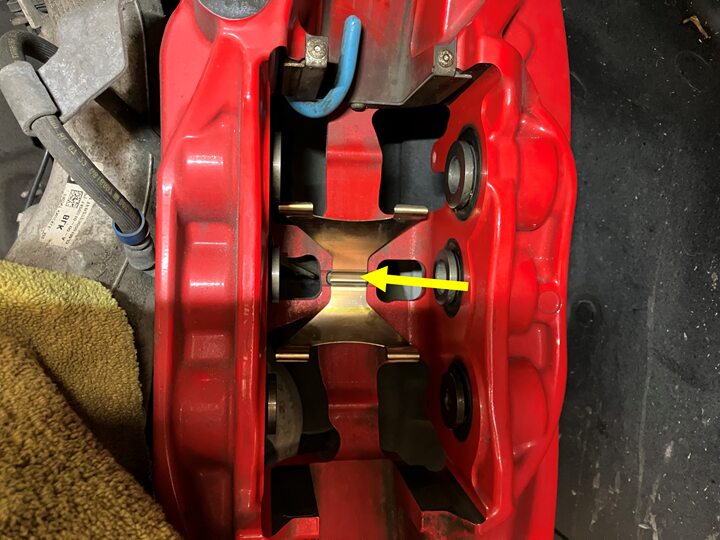

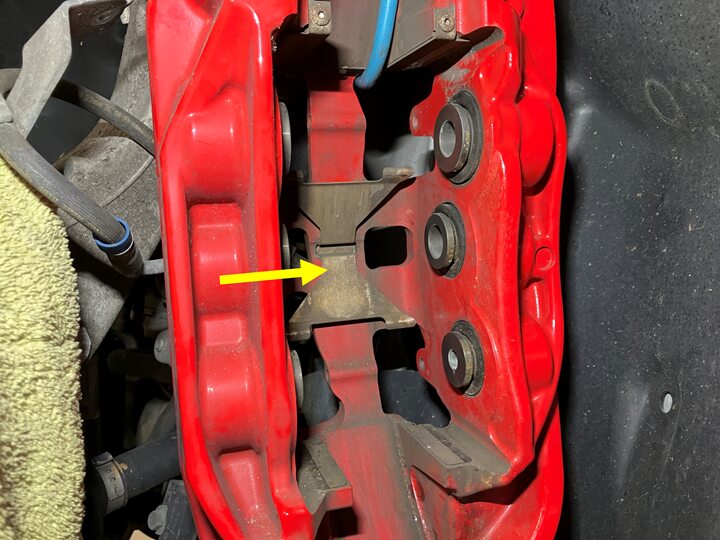

  14. Remove the brake pad anti-rattle clip from the LH front brake caliper.
  15. Clean the LH front brake caliper.
    注
    If necessary, only use nylon brush.

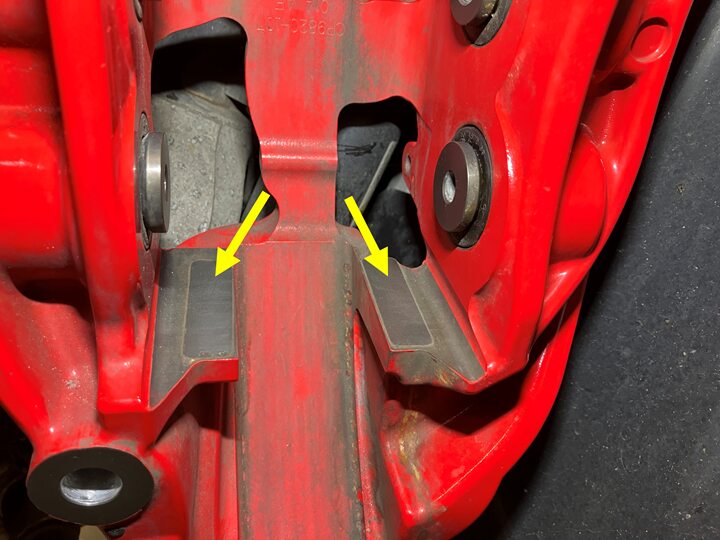

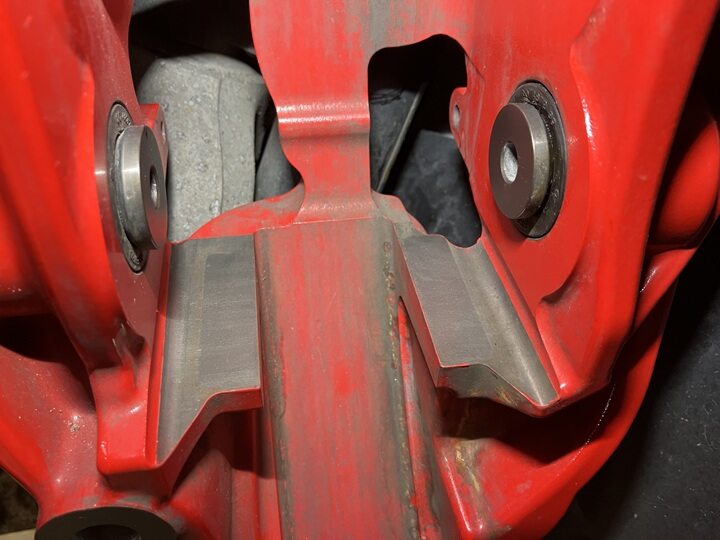

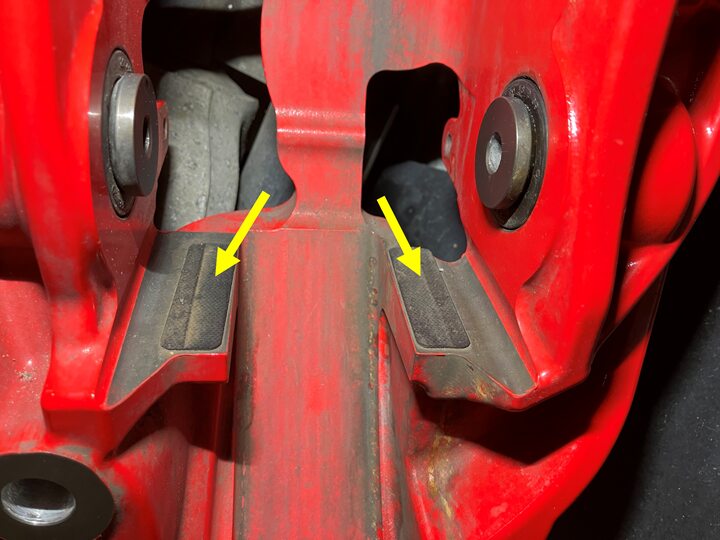

  16. Remove the abutment pads (x2) from the LH front brake caliper.
  17. Clean the abutment pads area on the LH front brake caliper.
    注
    Use IPA wipes to clean the area, allow 1 minute dry time.

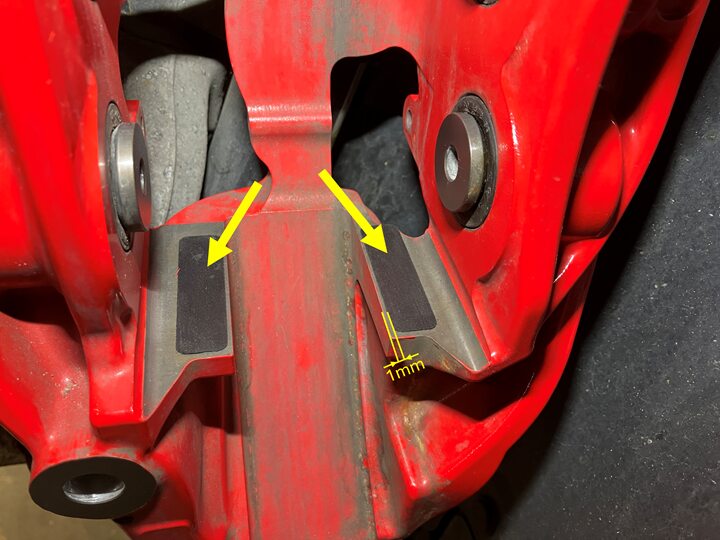

  18. Install the abutment pads (x2) to the LH front brake caliper.
    注
    Peel off the backing and install the pads with approximately 1 mm distance to the edge. Make sure double sided tape mates onto the caliper.
  19. Clean the front brake pads.
    注
    Clean the back side of the pads with IPA and allow 1 minute dry time. Make sure pads are on a clean surface.

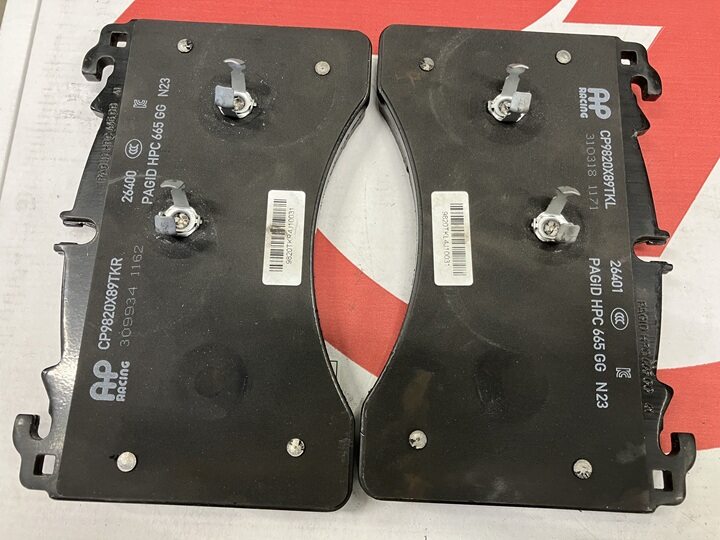

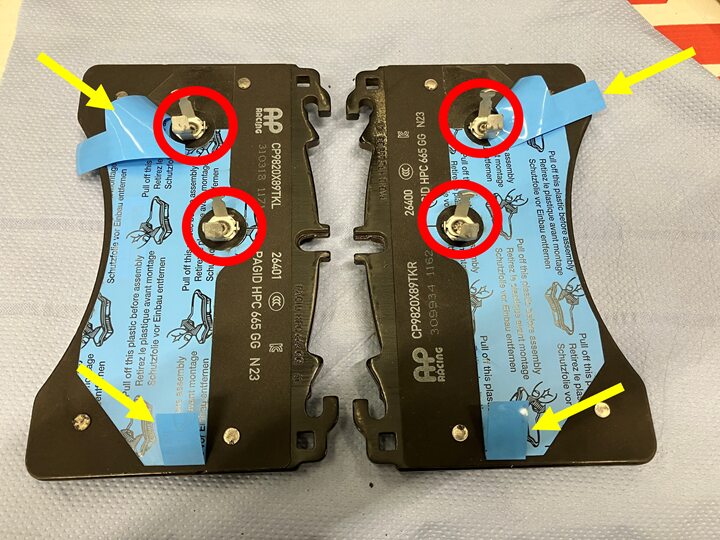

  20. Install Sticky Shim Kit onto the front brake pads.
    注
    Peel off the backing prior to installation, center out the clips to the sticky shim. Make sure double sided tape mates onto the brake pad.

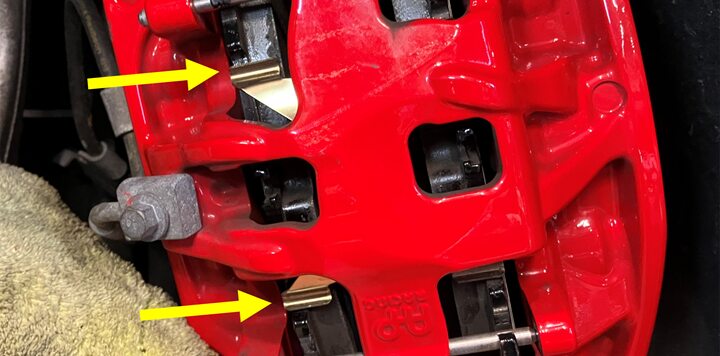

  21. Install a new brake pad anti-rattle clip onto the LH front brake caliper.

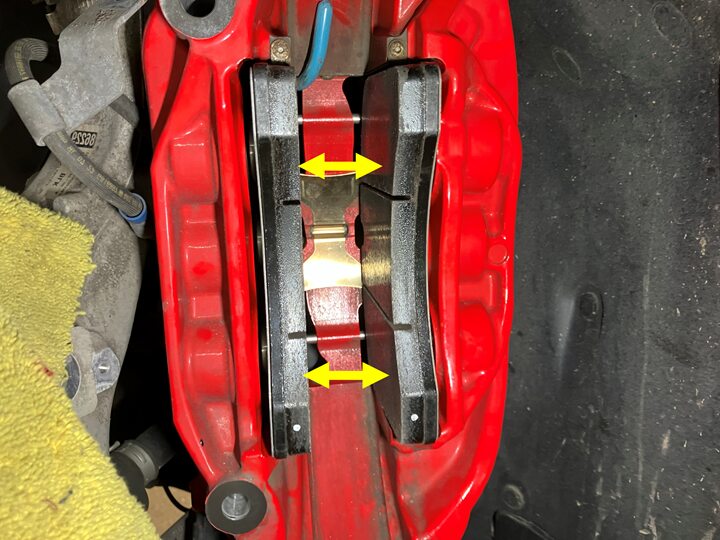

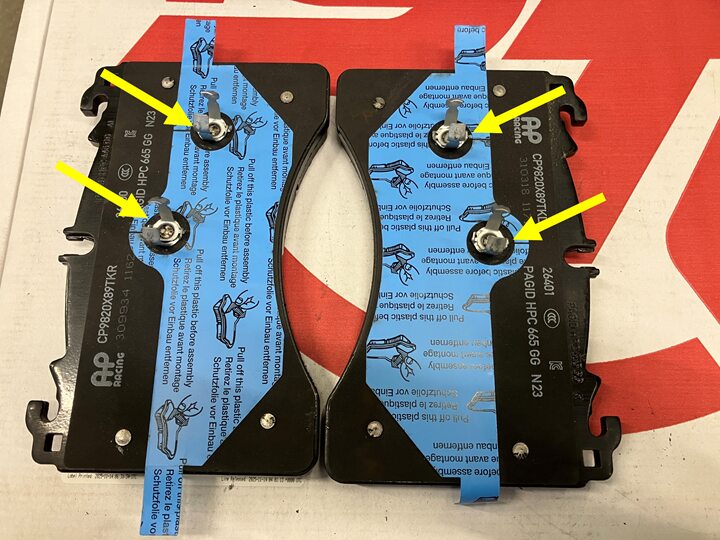

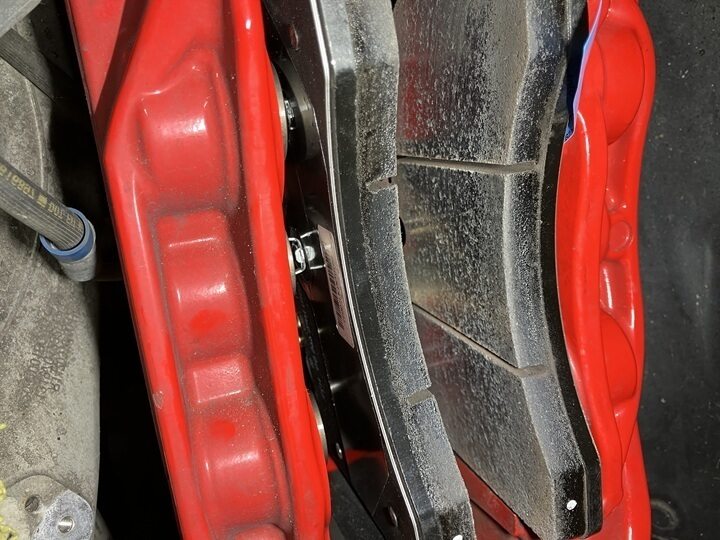

  22. Position the front brake pads into the LH front brake caliper.
    注
    Fold tips of the backing, position pad clips onto pistons. Do not fully press, and do not apply any lubricant.
  23. Position the LH front brake pad retaining pins.
    注
    Fully push the pins by hand, don't use tools. Do not apply any lubricant.

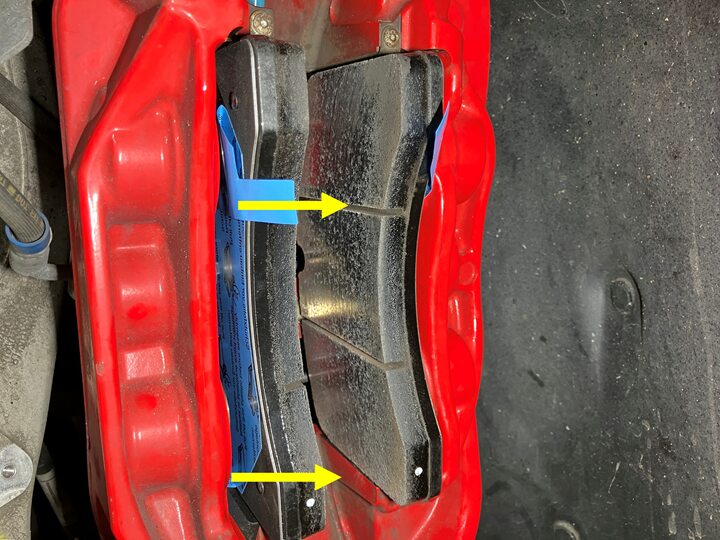

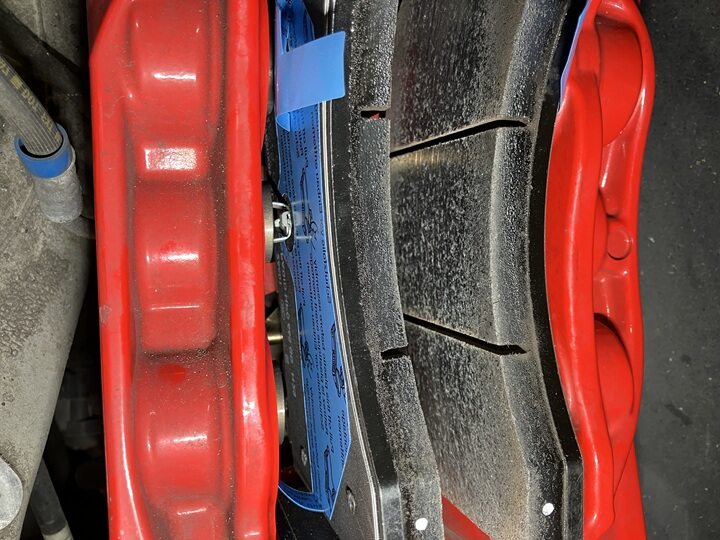

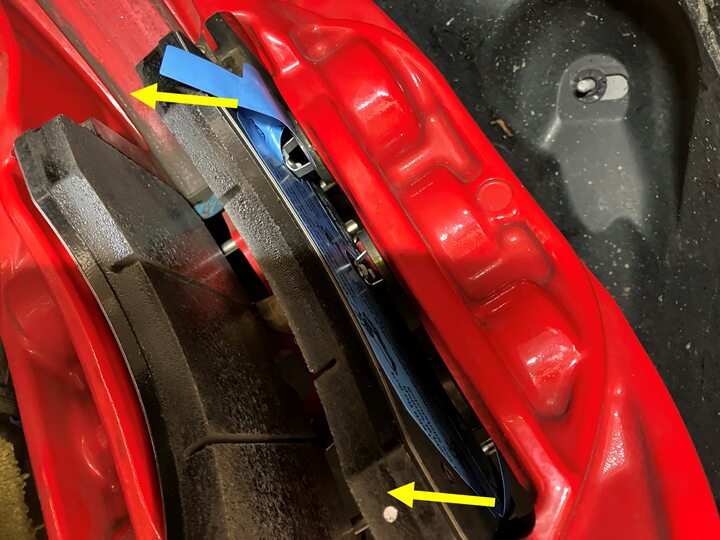

  24. Install the front brake pads to LH front brake caliper.
    注
    Peel off the backing and verify Sticky Shim has not moved from the pads. Push pads onto the pistons. Make sure that the anti-rattle clip is installed correctly.
  25. Remove the shop rag from the LH front brake disk.

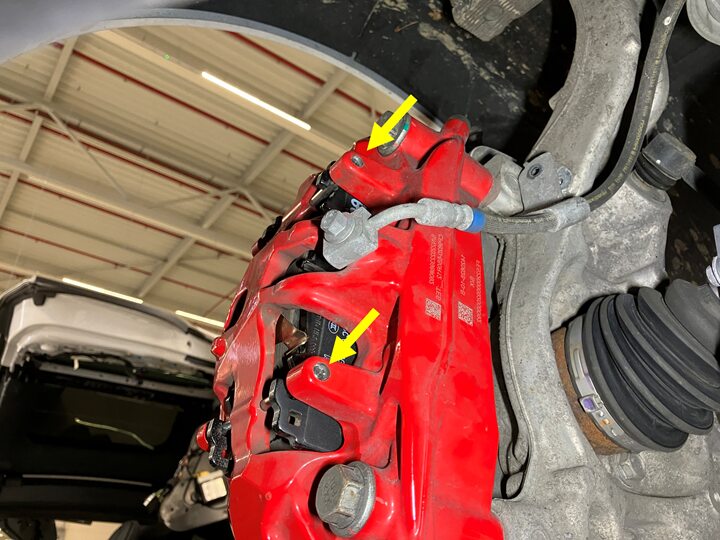

  26. Install the bolts (x2) that attach the LH front brake caliper to the LH front knuckle.
    135 Nm (99.6 lbs-ft)
    注
    Take care not to damage the brake disk.
  27. Install the LH front brake pad retaining pins.
  28. Install the bolt that attaches the LH front brake line to LH front air spring module.
    6 Nm (4.4 lbs-ft)
  29. Install the bolt that attaches the brake hose bracket to the LH front knuckle.
    6 Nm (4.4 lbs-ft)
  30. Repeat steps 7 to 29 on the front RH side of the vehicle.
  31. Torque the LH and RH front wheel nuts.
    175 Nm (129.1 lbs-ft)
  32. Install the LH and RH front arachnid lug nut covers.
    注
    Align cap with the valve stem.
  33. Pump the brake pedal a few times to ensure pedal feels normal.
  34. Check the brake fluid level and top off the reservoir as necessary.
  35. Install the brake fluid reservoir cap.
  36. Remove absorbent material from underneath the brake reservoir area.
  37. Install the rear underhood apron. See 前备箱挡板 - 后部（拆卸和更换）.
  38. Exit Service Mode. See 维护模式（启用和禁用）.
  39. Burnish the brakes and verify proper brake pedal feel and performance.
    注
    Add correction code 33013010 as a separate activity to the Service Visit.
