LH Clevis Motor Mount and RH Bushing Carrier - Set ((拆卸和更换))

校正代码 39010102302 FRT 6.40 注意：除非本程序中另有明确规定，否则上文所列校正代码及相关 FRT 反映的是执行本程序（包括关联程序）所需的所有工作。除非明确要求，否则请勿堆叠校正代码。 注意：请参阅平均维修工时深入了解 FRT 及其创建方式。 注意：请参阅人员保护确保在执行以下程序时穿戴适当的个人防护装备 (PPE)。 注意：请参阅人体工程学注意事项查看安全健康的作业规程。

警告
本程序为“草案”。虽已通过验证，但可能仍有“警告”和“注意”事项缺失。请遵守安全要求，处理或靠近高压系统和部件时，请谨慎操作。
  • 2026-03-06: Released new procedure.

拆卸

  1. Remove the front drive unit. See 驱动电机 - 前（拆卸和安装）

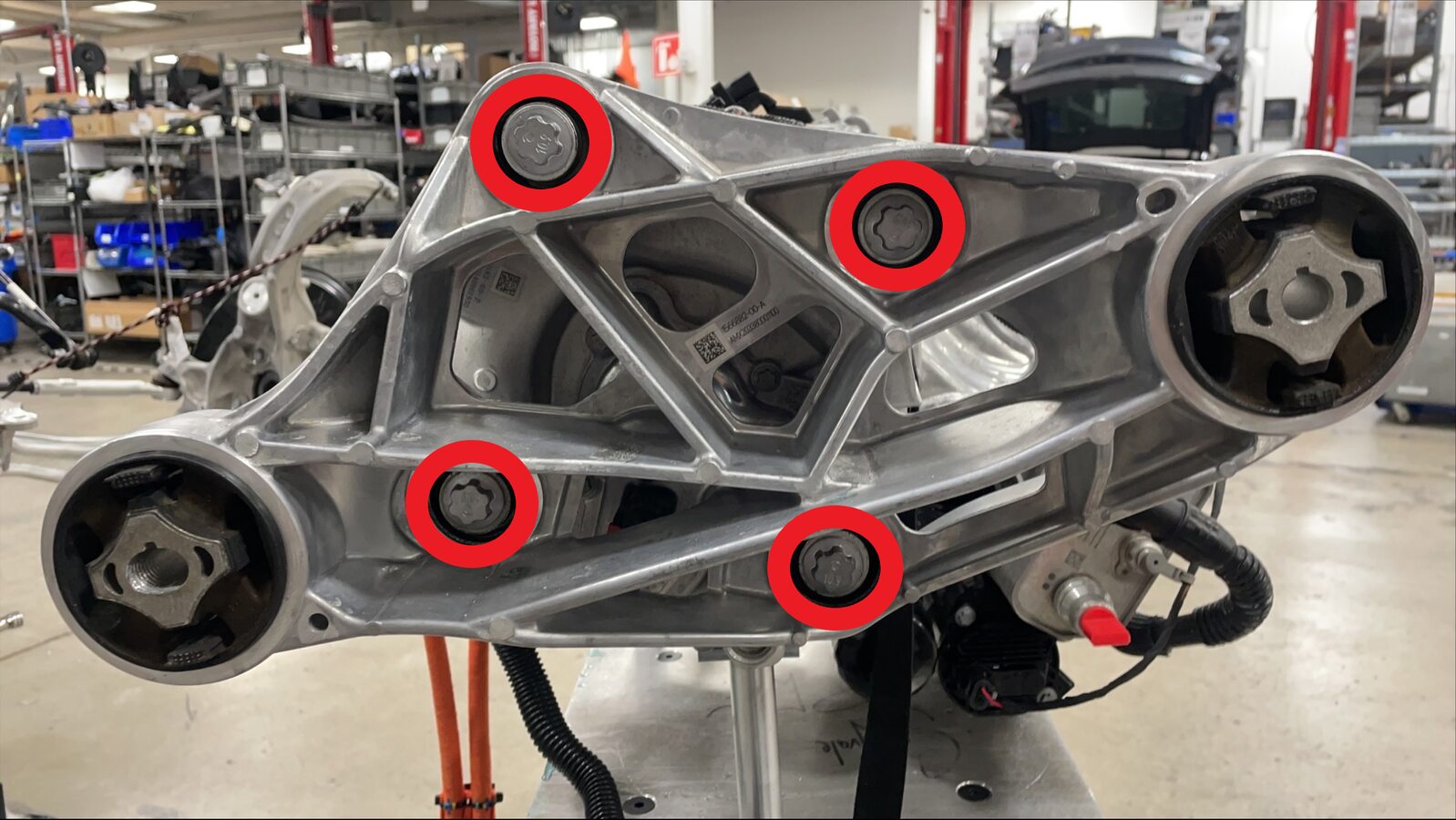

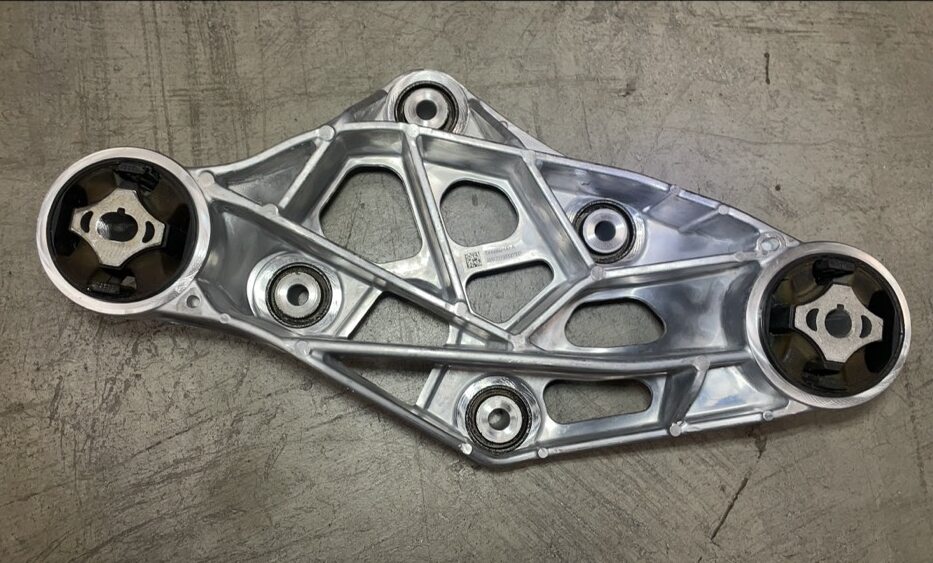

  2. Release bolts securing RHS bushing carrier and remove assembly
    注
    4x bolts, EP20, 60 Nm + 50 Degrees, Verify FDU strap is secured properly, Recommend assistance to prevent unit from tilting
  3. Install RHS bushing carrier and secure bolts
    注
    4x bolts, EP20, 60 Nm + 50, Verify FDU strap is secured properly, Recommend assistance to prevent unit from tilting, Torque bolts down in the sequence shown

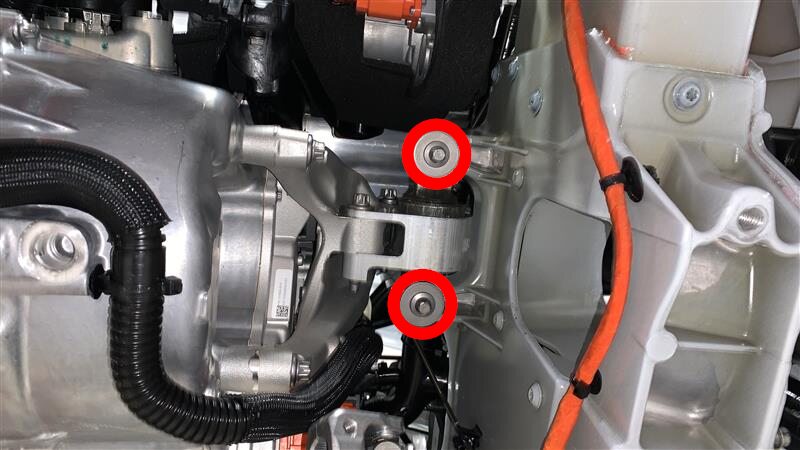

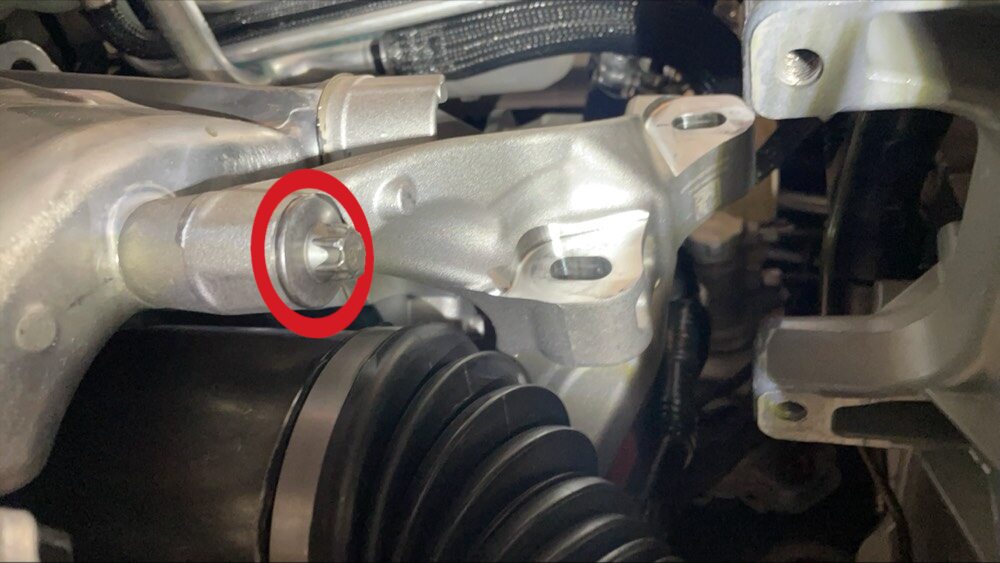

  4. Remove bolts from LH FDU clevis mount to body
    注
    2x bolts, E14, 65 Nm

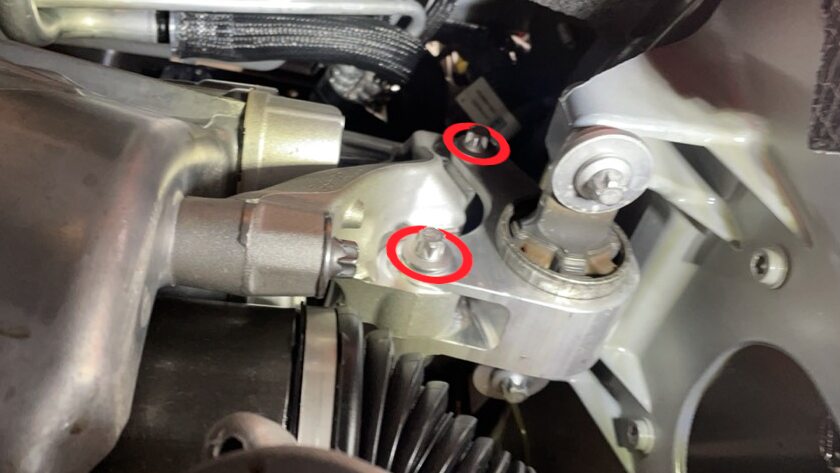

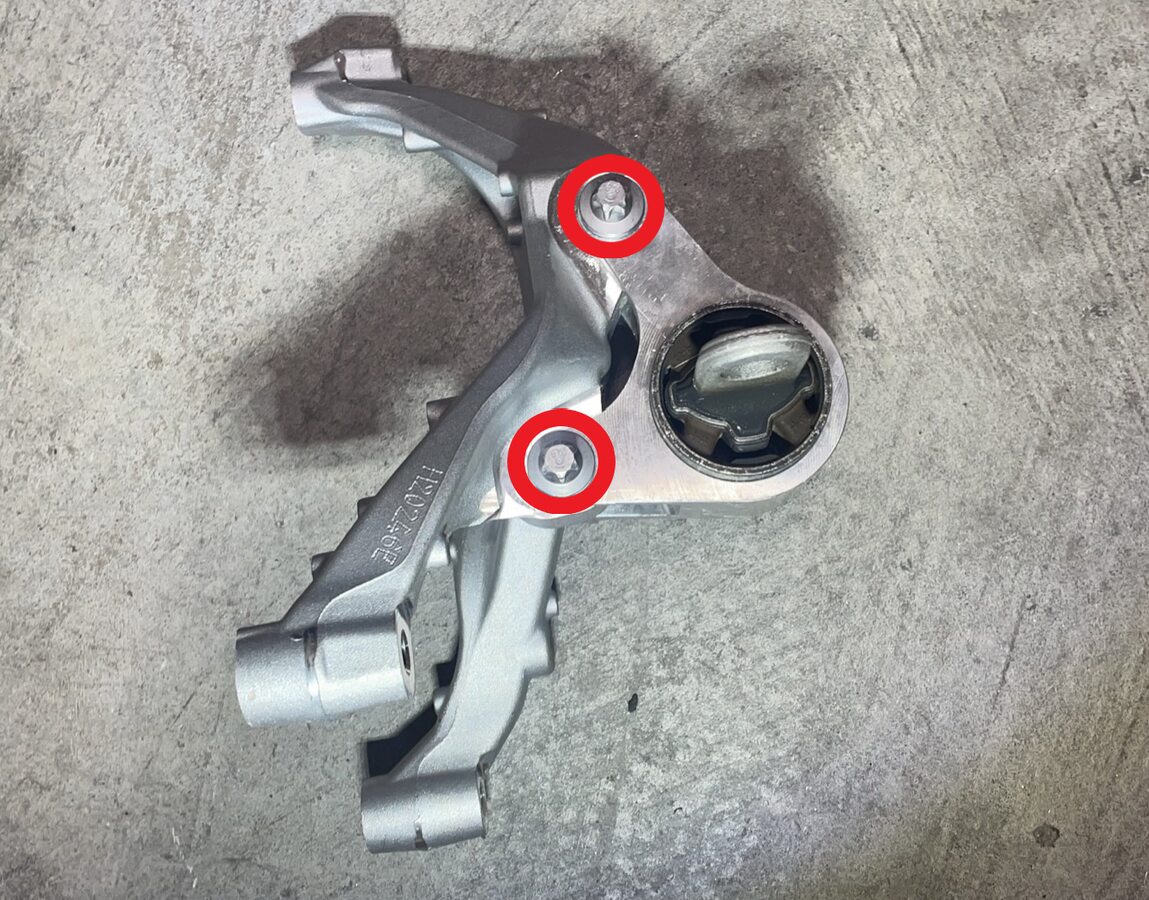

  5. Release bolts securing clevis to LH motor mount assembly
    注
    2x bolts, E14, 92 Nm

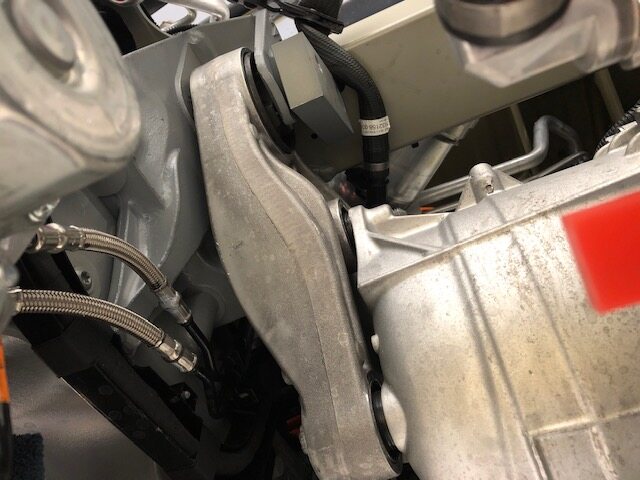

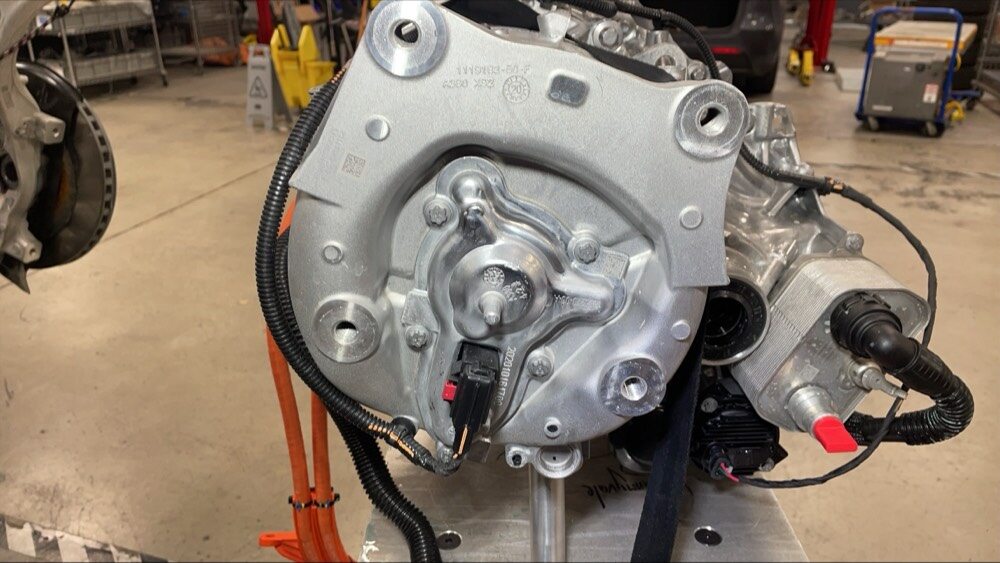

  6. Release bolts securing LH motor mount assembly to FDU
    注
    3x bolts, E14, 35 Nm + 55 degrees

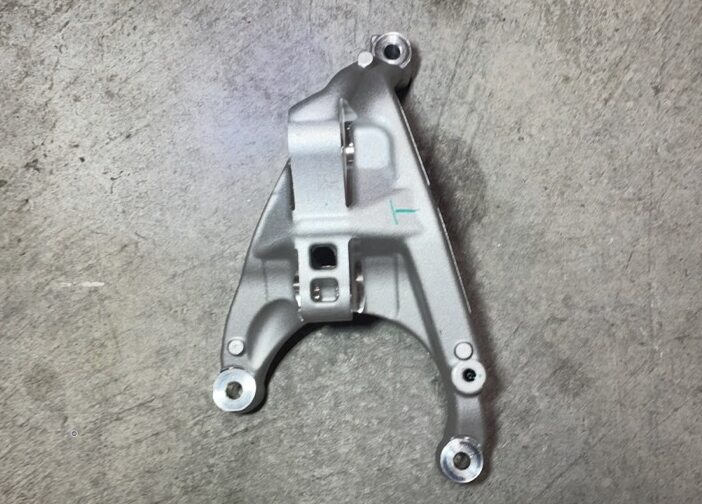

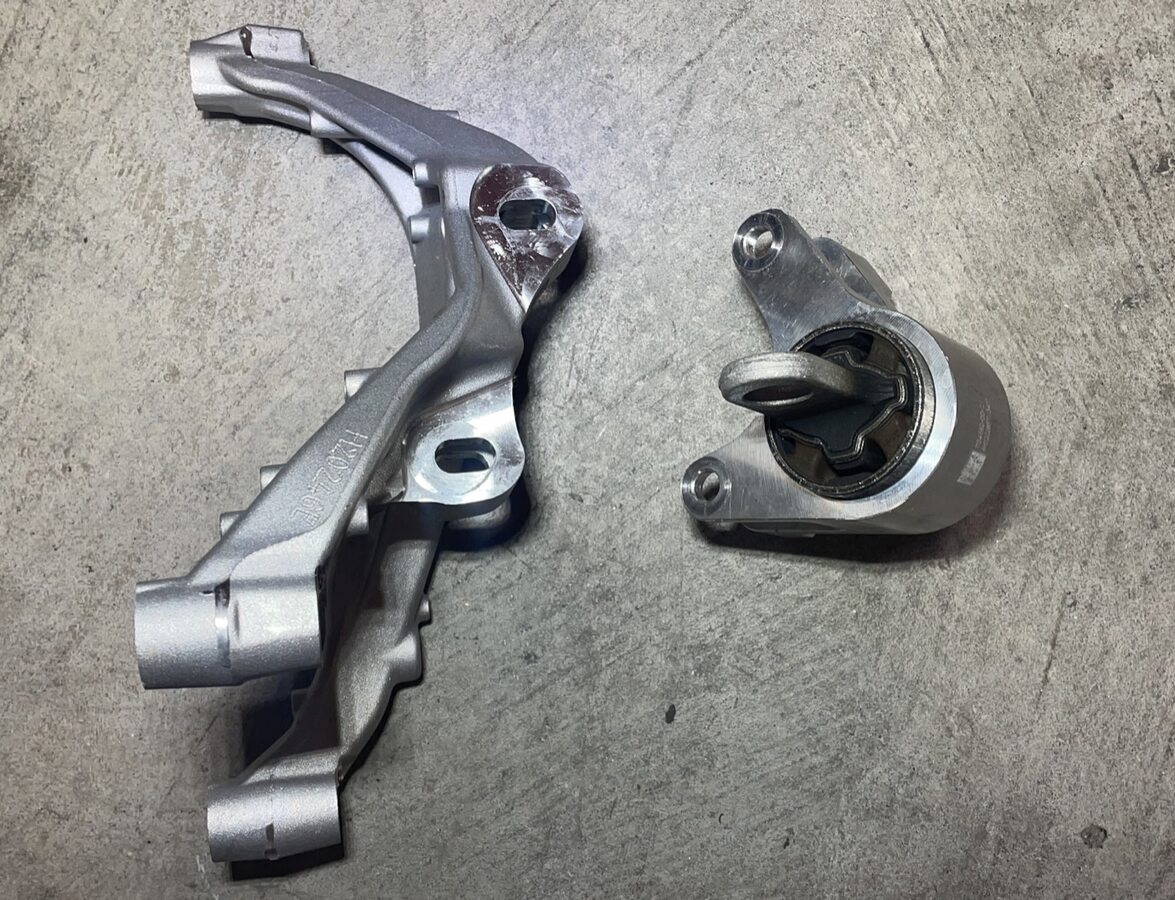

  7. Separate clevis mount from LH motor mount assembly
    注
    2x bolts, E14, 92 Nm

安装

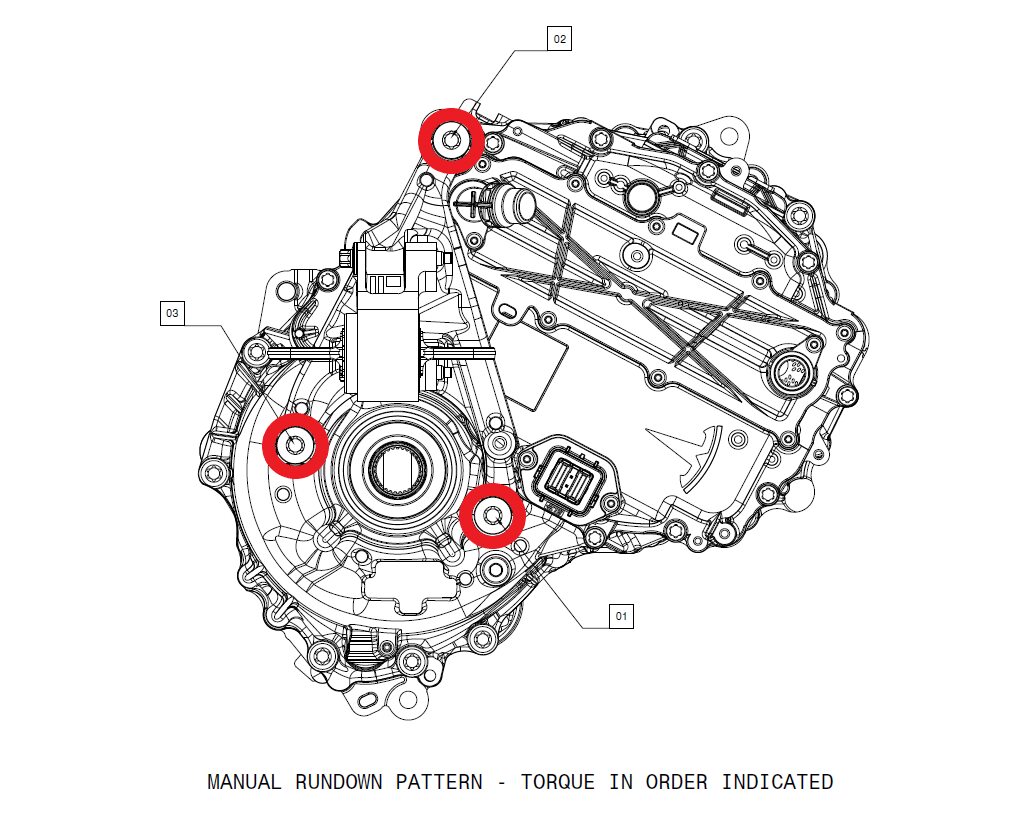

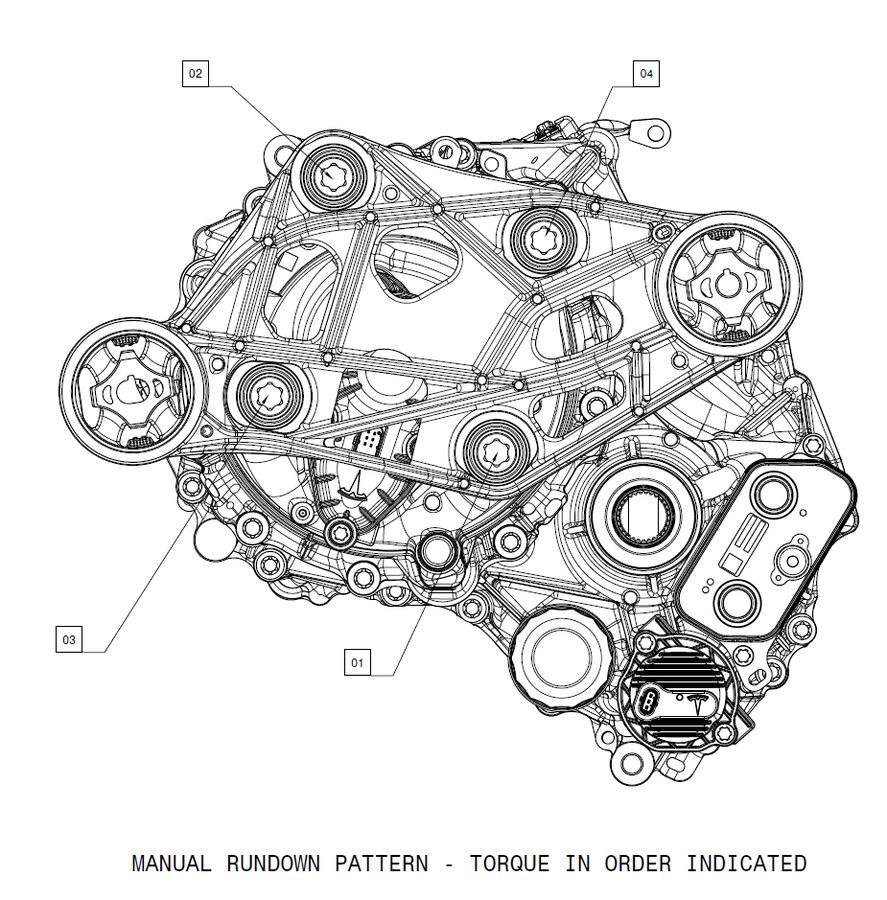

  1. Install bolts securing LH motor mount assembly to FDU
    注
    3x bolts, E14, 35 Nm + 55 degrees, Install bolts and perform final torque in the sequence shown

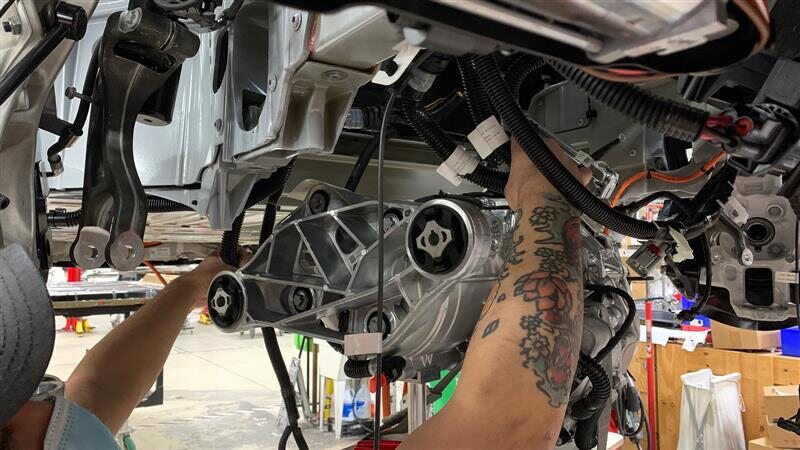

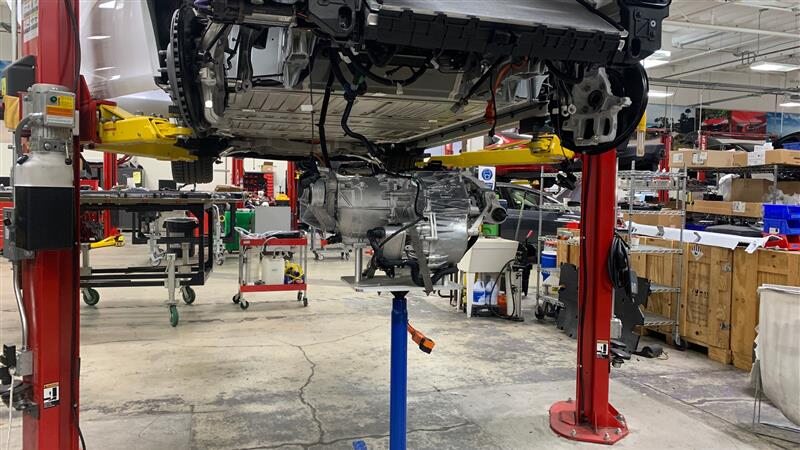

  2. Position the FDU assembly under the vehicle for installation
  3. Raise the FDU into the vehicle
    注
    Recommend assistance, Keep harnesses and hoses clear of FDU during install
  4. Loosely install bolts securing LH FDU mount to body
    注
    2x bolts, E14, 65 Nm
  5. Install bolts securing clevis to LH motor mount assembly
    注
    2x bolts, E14, 92 Nm, Center clevis mount and torque bolts

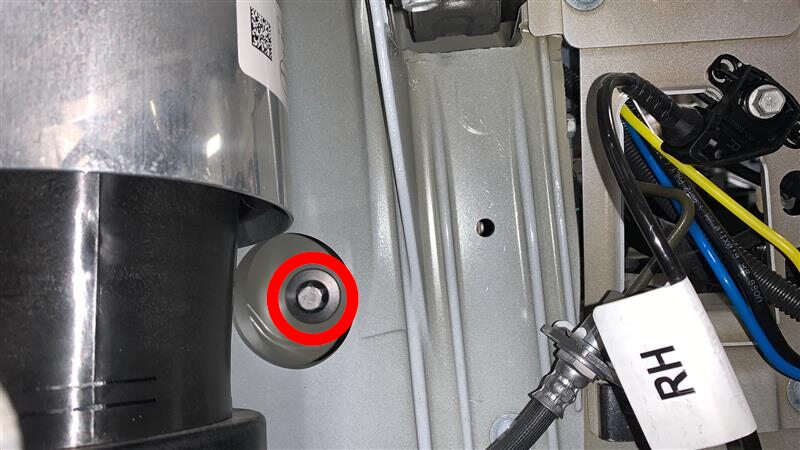

  6. Raise the FDU until the front fastener securing RH FDU mount to the body can be installed
    注
    Visually inspect holes are aligned

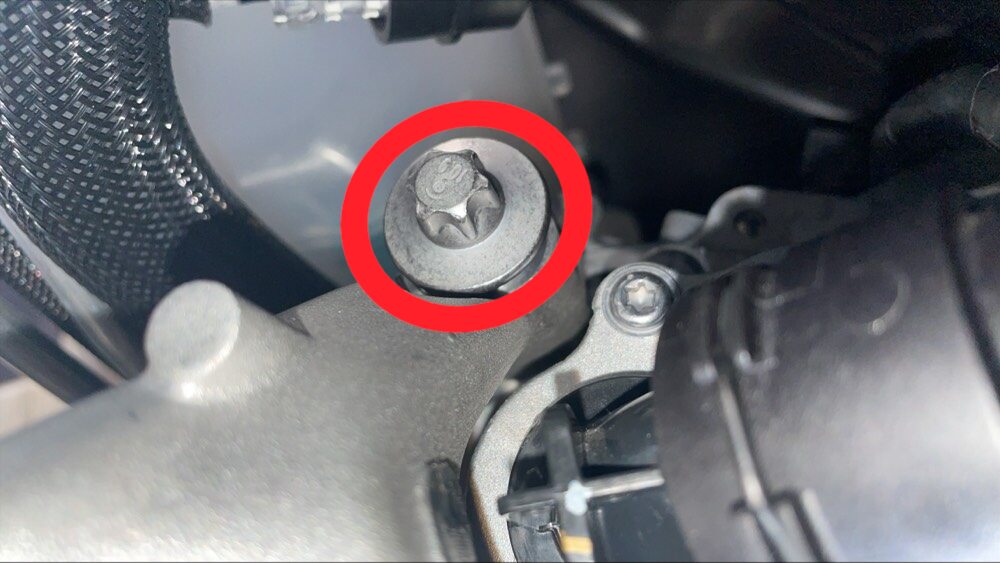

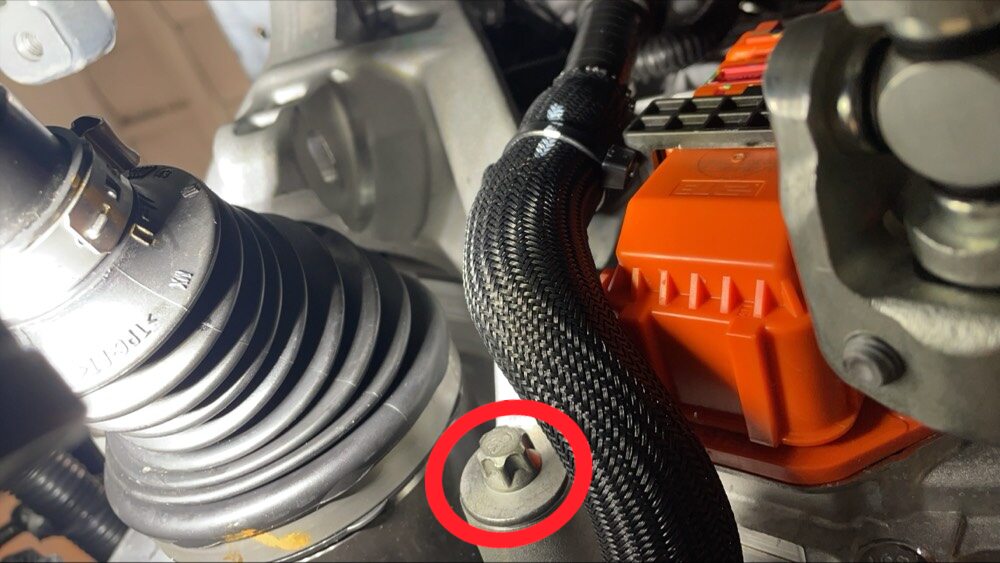

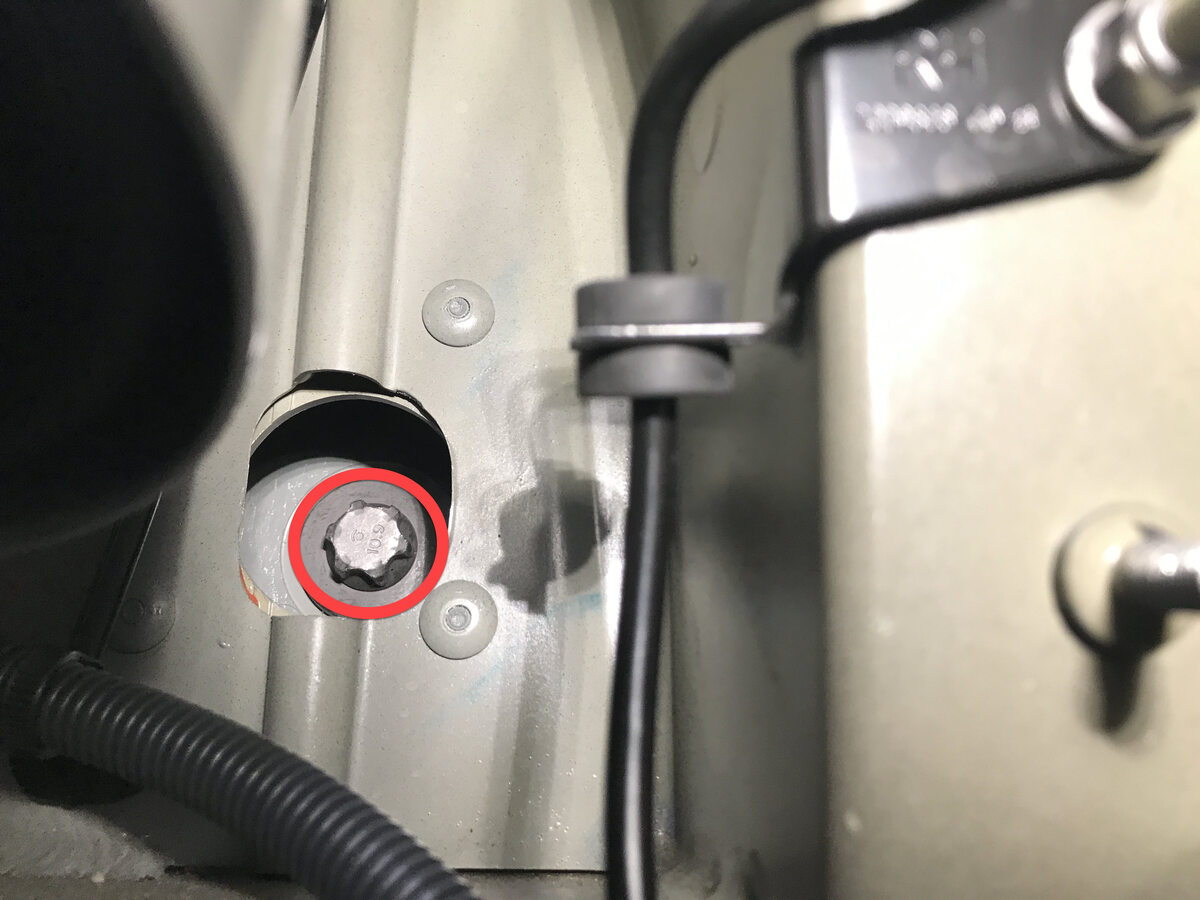

  7. Loosely install the front fastener securing the RH FDU mount to the body
    注
    1x bolt, EP20, 120 Nm, Torque at later step

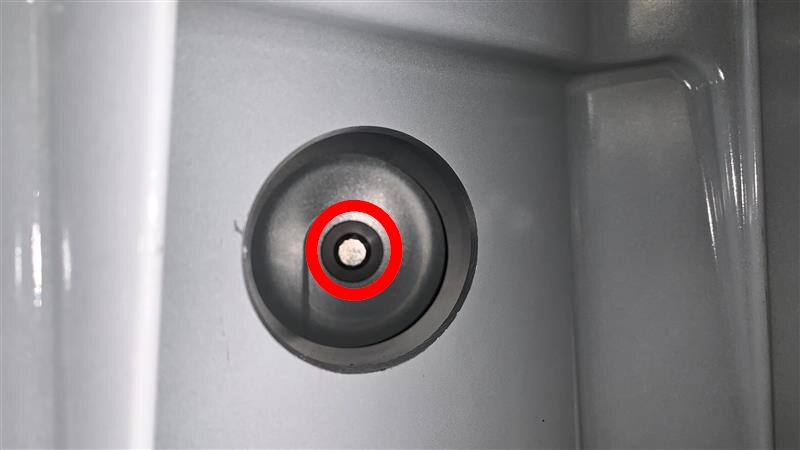

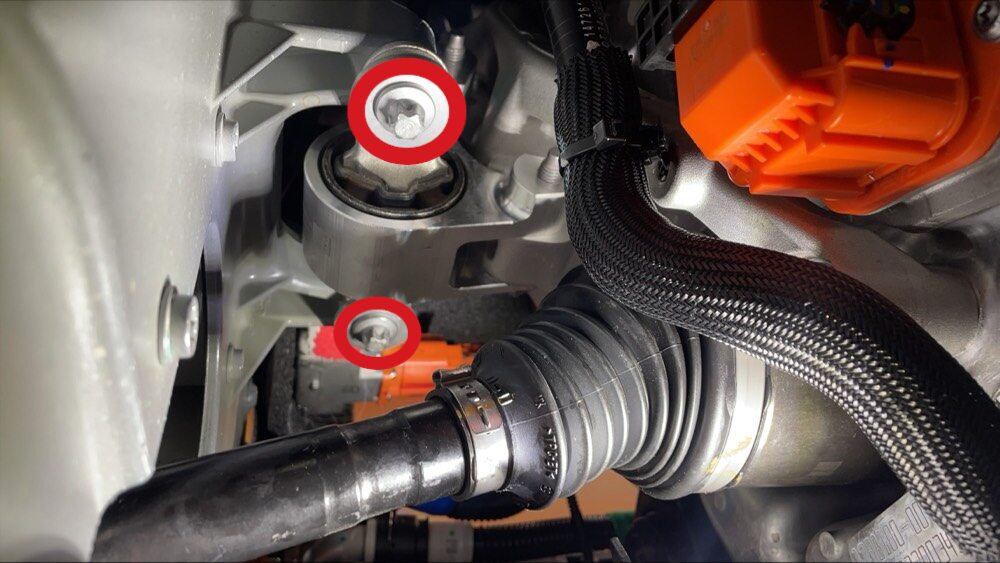

  8. Install bolt securing rear of RH FDU mount
    注
    1x bolt, EP20, 120 Nm
  9. Torque bolt securing front of RH FDU mount to body
    注
    1x bolt, EP20, 120 Nm
  10. Fully secure bolts securing LH FDU mount to body
    注
    2x bolts, E14, 65 Nm
  11. Install the front drive unit. See 驱动电机 - 前（拆卸和安装）
