X909M

Tesla Part Number

1097117-00-A

Connector

DELPHI 33245685

Color

WH

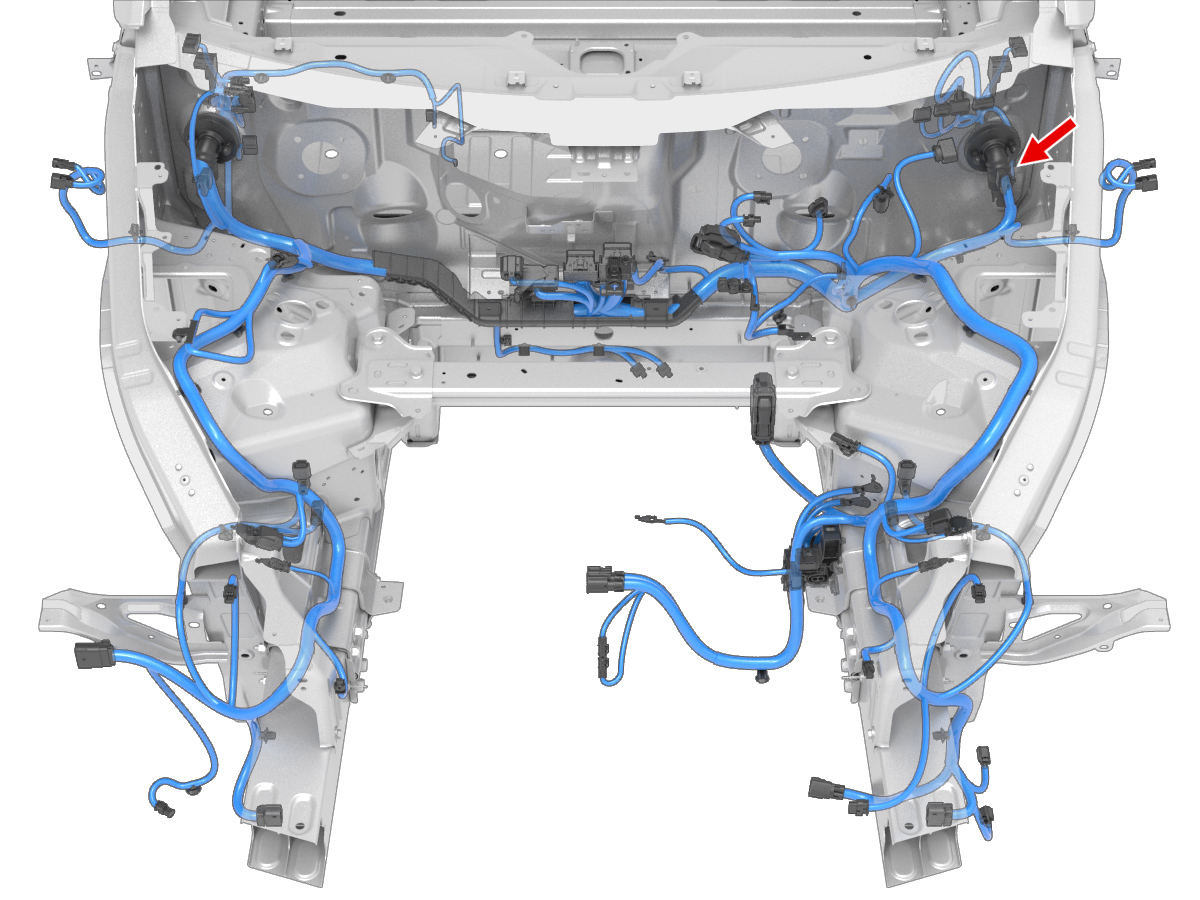

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X603A	1
2	SUMITOMO	8100-3623	0.64x0.64M	GN	0.35			X603A	2
3
4
5	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X172	3
6	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X172	4
7	SUMITOMO	8100-3623	0.64x0.64M	TN	0.35			X905F	5
8	SUMITOMO	8100-3623	0.64x0.64M	YE	0.35			X905F	6
9
10
11
12	SUMITOMO	8100-3623	0.64x0.64M	WH	0.35			X905F	11
13	SUMITOMO	8100-3623	0.64x0.64M	RD	0.35			X905F	12
14
15	SUMITOMO	8100-3623	0.64x0.64M	BN	0.35			X906F	9
16	SUMITOMO	8100-3623	0.64x0.64M	BU	0.35			X010	15
17	SUMITOMO	8100-3623	0.64x0.64M	VT	0.35			X010	30
18
19
20
21
22
