X168

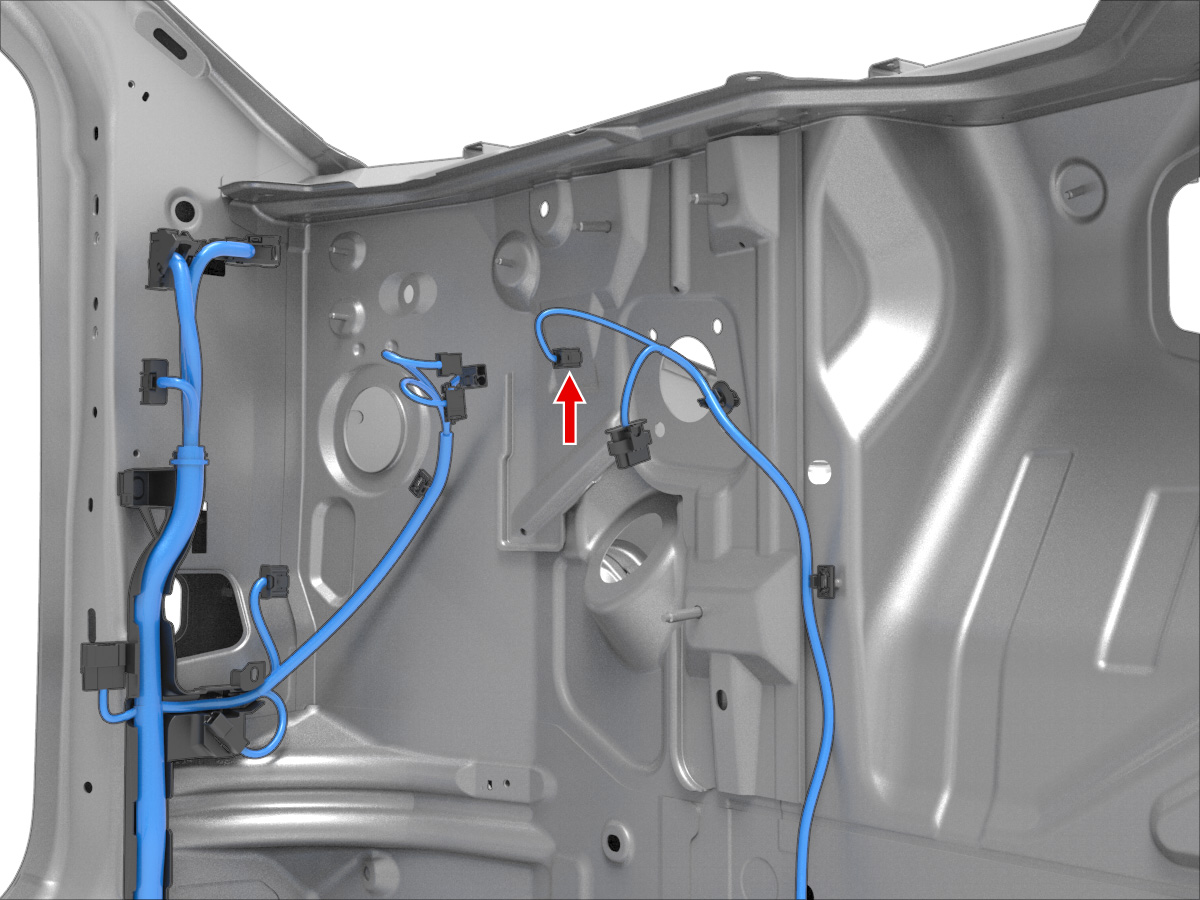

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMP | 1123343-1 | 0.64x0.64F | BK | 0.35 | G031 | 10 | ||
| 2 | AMP | 1123343-1 | 0.64x0.64F | RD | 0.35 | X031 | 25 | ||
| 3 | unused | ||||||||
| 4 | unused | ||||||||
