X201

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

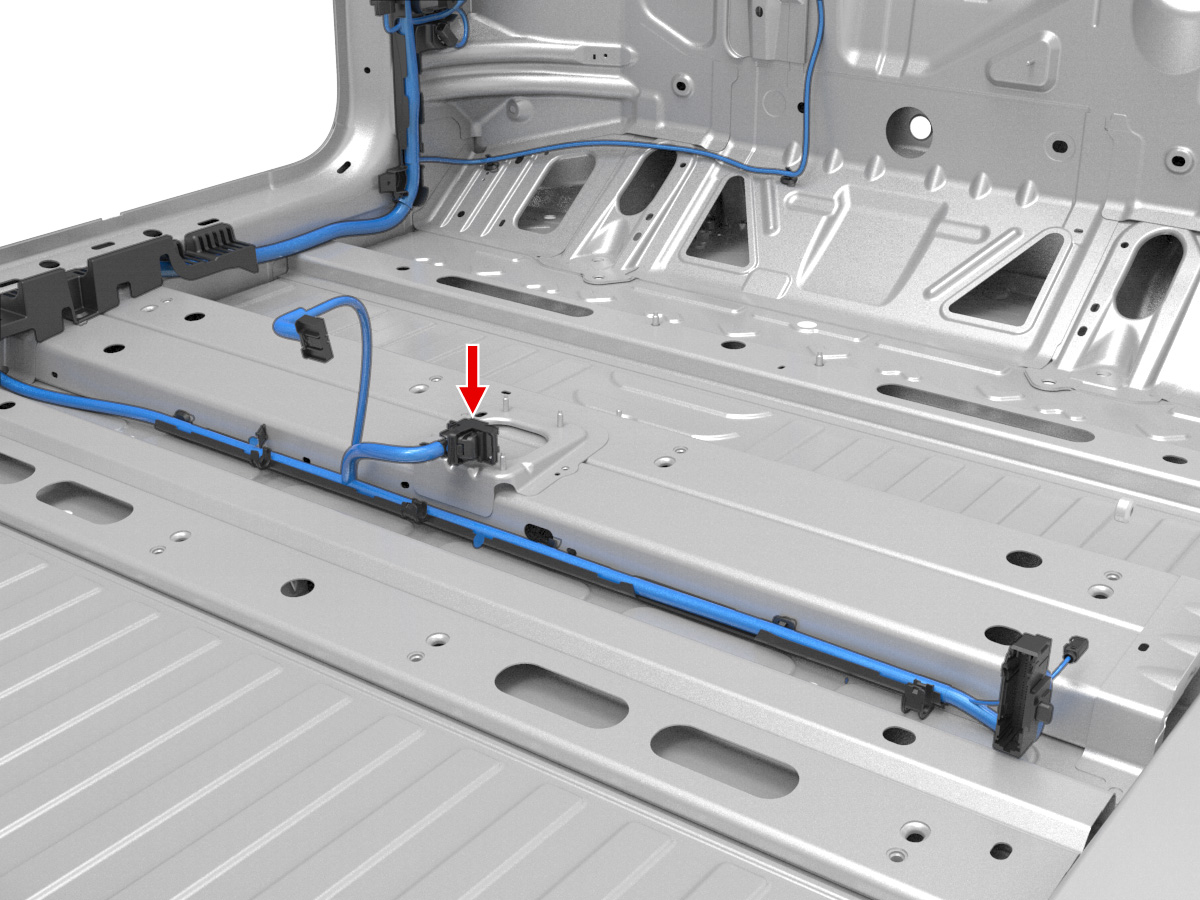

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935M	14
2	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	15
3	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X217	2
4	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X217	1
5
6
7
8
9	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	23
10	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935M	22
11	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X225	2
12	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X225	1
13
14
15	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X935M	56
16	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X935M	55
17	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X221	1
18	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X221	2
19	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935M	18
20	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	19
21	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X219	2
22	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X219	1
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935M	27
38	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X935M	26
39	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X206	1
40	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X206	2
41	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	21
42	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X935M	20
43	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X924M	18
44	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X924M	19
45	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X909F	8
46	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X909F	7
47	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X909F	12
48	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X909F	13
49
50
51
52
53	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X030A	3
54	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X030A	4
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	2
56	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X935M	32
57
58
59
60
61
62	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G031	1
63
64
65
66
67
68
69
70
71	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X031	45
72	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X031	44
