X009

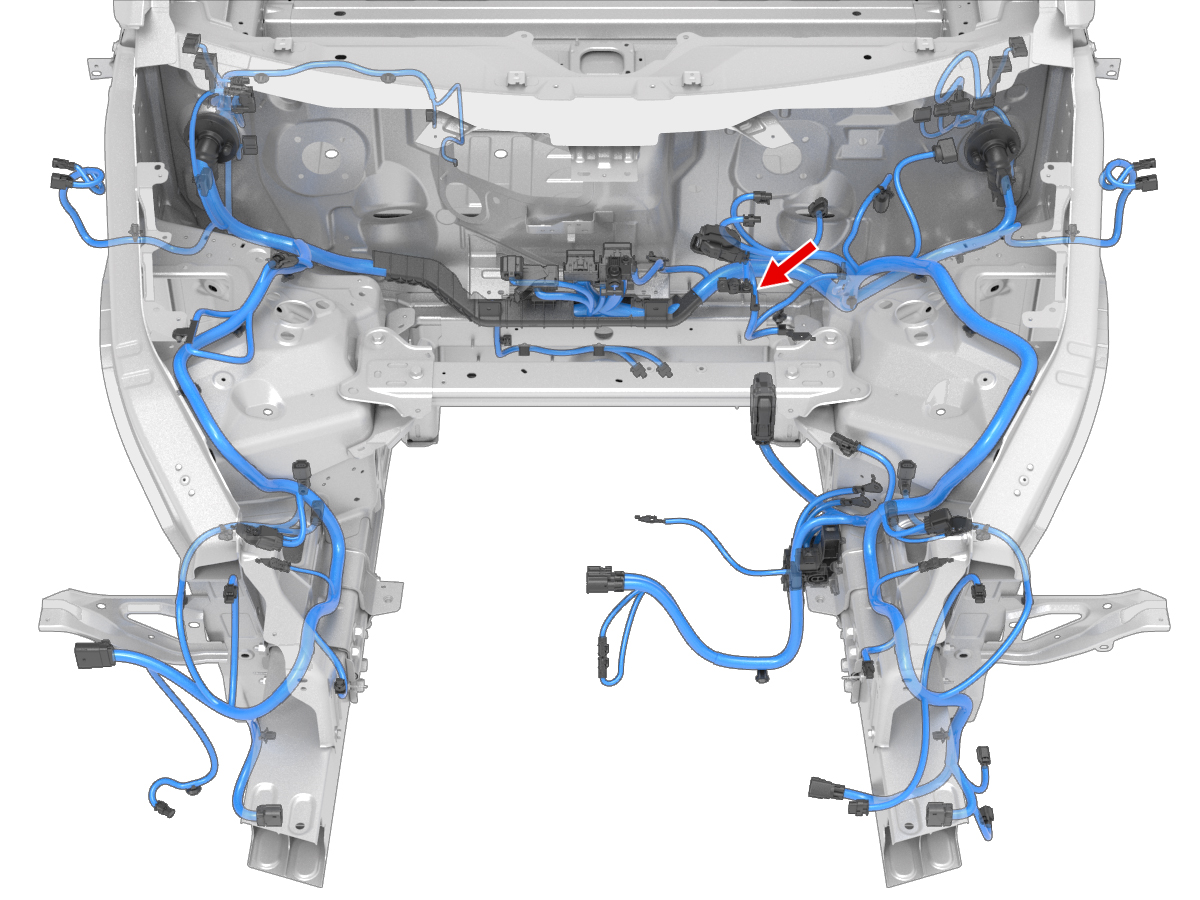

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | GEN | PIA-TSNS | PIA | BU | 0.35 | X010 | 31 | ||
| 2 | GEN | PIA-TSNS | PIA | BU | 0.35 | X010 | 20 |
