X048

Tesla Part Number

1642203-00-A

Connector

PLASTIMAT 781 300 900

Color

BK

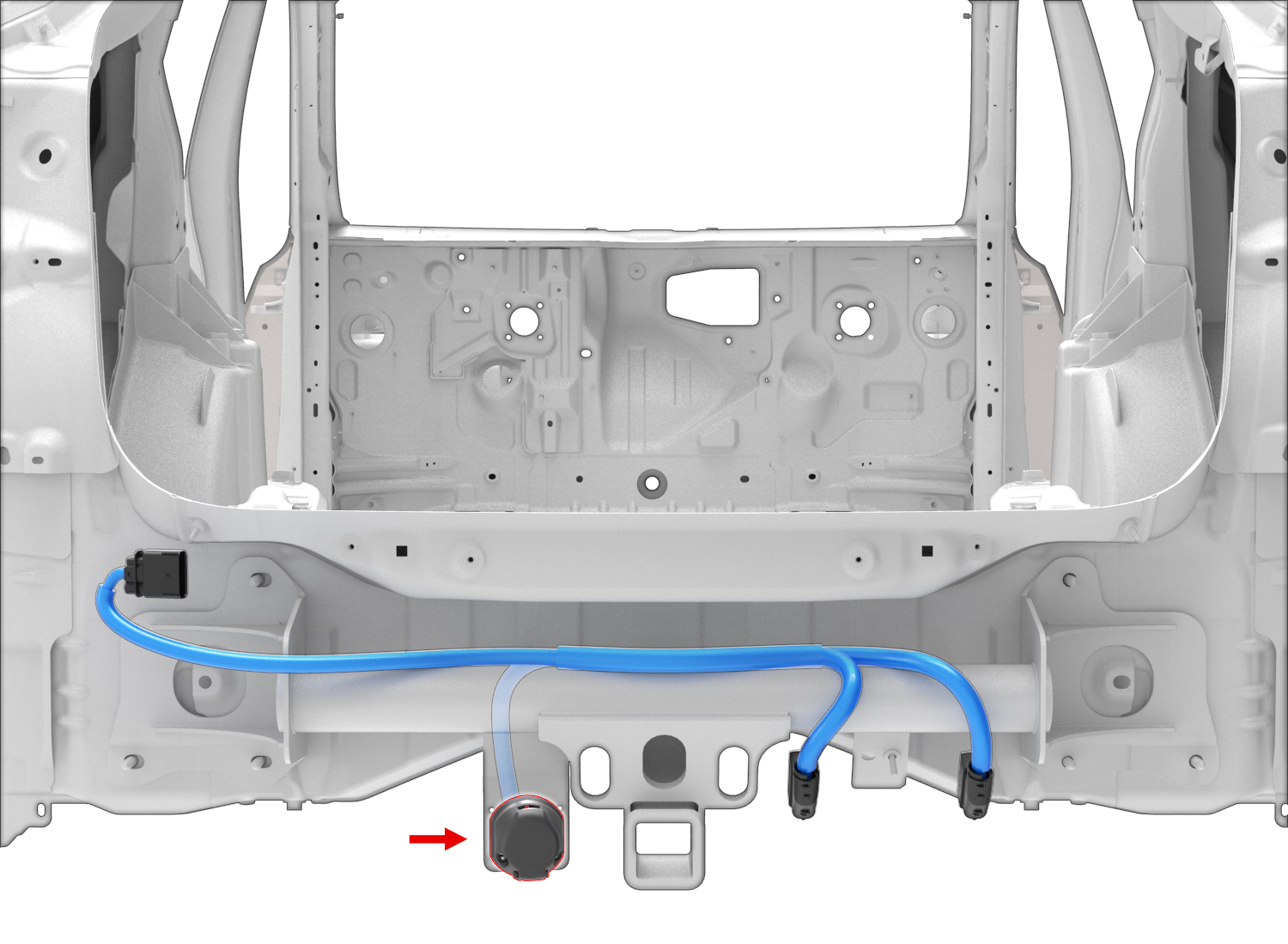

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	929975-1	2.5FS	YE	1.50	AMP	828921-1	X044	2
2	AMP	929975-1	2.5FS	BU	1.50	AMP	828921-1	X044	12
3	AMP	929975-1	2.5FS	WH	2.00	AMP	828921-1	X044	16
4	AMP	929975-1	2.5FS	GN	1.50	AMP	828921-1	X044	3
5	AMP	929975-1	2.5FS	BN	1.50	AMP	828921-1	X044	15
6	AMP	929975-1	2.5FS	RD	1.50	AMP	828921-1	X044	13
7	AMP	929975-1	2.5FS	BK	1.50	AMP	828921-1	X044	4
8	AMP	929975-1	2.5FS	PK	1.50	AMP	828921-1	X044	5
9	AMP	929975-1	2.5FS	OG	2.00	AMP	828921-1
10	AMP	929975-1	2.5FS	OG	2.00	AMP	828921-1
11	AMP	929975-1	2.5FS	BN	2.00	AMP	828921-1
12	AMP	929975-1	2.5FS	YE	2.00	AMP	828921-1	X044	9
13	AMP	929975-1	2.5FS	BN	2.00	AMP	828921-1
