X901M

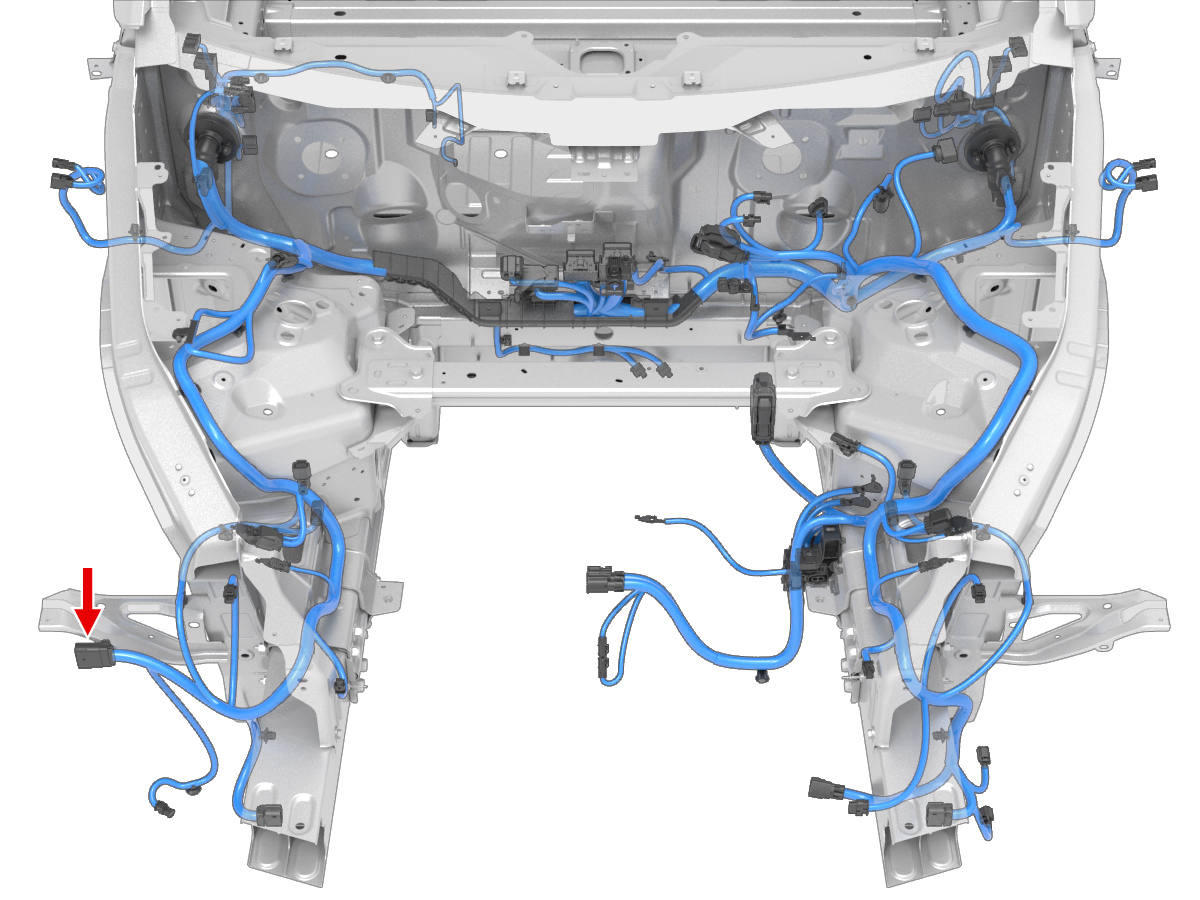

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | MOLEX | 33000-0002 | 1.5x0.8M | RD | 1.00 | TESLA | MAT-120-240 | X010 | 84 |
| 2 | |||||||||
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | MOLEX | 33000-0002 | 1.5x0.8M | WH | 1.00 | TESLA | MAT-120-240 | X010 | 85 |
| 9 | unused | ||||||||
| 10 | |||||||||
| 11 | MOLEX | 33000-0004 | 1.5x0.8M | VT | 0.35 | TESLA | MAT-120-240 | X010 | 8 |
| 12 | MOLEX | 33000-0004 | 1.5x0.8M | RD | 0.35 | TESLA | MAT-120-240 | X010 | 5 |
| 13 | MOLEX | 33000-0004 | 1.5x0.8M | GY | 0.35 | TESLA | MAT-120-240 | X010 | 23 |
| 14 | MOLEX | 33000-0004 | 1.5x0.8M | TN | 0.35 | TESLA | MAT-120-240 | X010 | 9 |
| 15 | |||||||||
| 16 | MOLEX | 33000-0002 | 1.5x0.8M | BK | 1.00 | TESLA | MAT-120-240 | G012 | 9 |
| 17 | unused | ||||||||
| 18 | unused | ||||||||
| 19 | unused | ||||||||
| 20 | unused | ||||||||
