X201

Tesla Part Number

1475379-00-A

Connector

BOSCH 1928406051

Color

BK

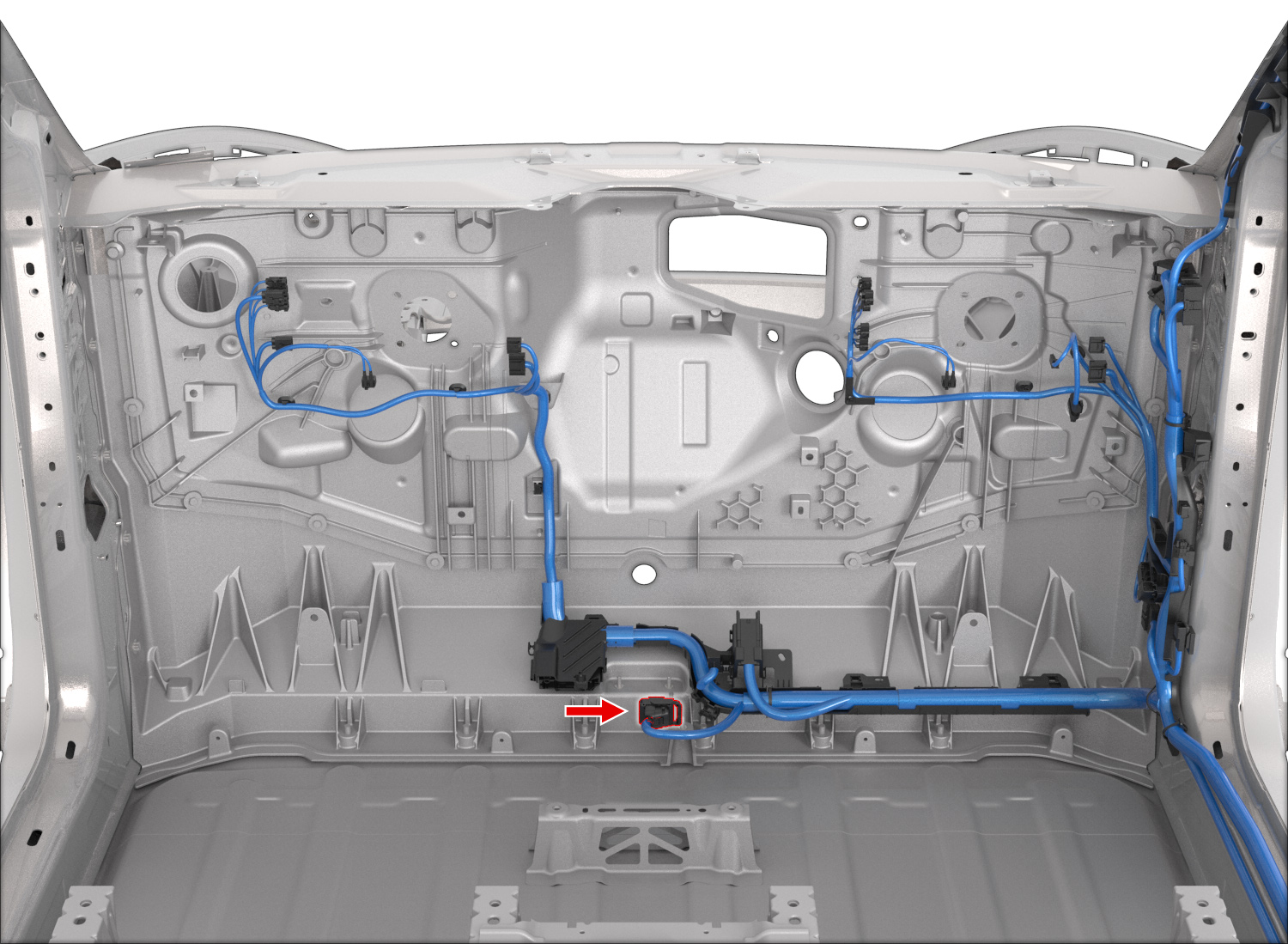

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X222	1
2	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X222	2
3	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X935M	56
4	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935M	55
5
6
7
8
9	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X226	1
10	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X226	2
11	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X935M	23
12	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X935M	22
13
14
15	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X218	2
16	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X218	1
17	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935M	14
18	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935M	15
19	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X220	1
20	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X220	2
21	BOSCH	1928499468	0.50x0.40F	BU	0.35	TESLA	MAT-110-130	X935M	19
22	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935M	18
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X207	2
38	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X207	1
39	BOSCH	1928499468	0.50x0.40F	GY	0.35	TESLA	MAT-110-130	X935M	26
40	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	X935M	27
41	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X926M	19
42	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X926M	18
43	BOSCH	1928499468	0.50x0.40F	BN	0.35	TESLA	MAT-110-130	X935M	20
44	BOSCH	1928499468	0.50x0.40F	VT	0.35	TESLA	MAT-110-130	X935M	21
45	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X908M	25
46	BOSCH	1928499468	0.50x0.40F	TN	0.35	TESLA	MAT-110-130	X908M	24
47	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X908M	22
48	BOSCH	1928499468	0.50x0.40F	RD	0.35	TESLA	MAT-110-130	X908M	23
49
50
51
52
53	BOSCH	1928499468	0.50x0.40F	GN	0.35	TESLA	MAT-110-130	X935M	38
54	BOSCH	1928499468	0.50x0.40F	DKGN/WH	0.35	TESLA	MAT-110-130	X935M	37
55	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G032	13
56	BOSCH	1928499468	0.50x0.40F	WH	0.35	TESLA	MAT-110-130	X098	13
57
58
59
60
61
62	BOSCH	1928499468	0.50x0.40F	BK	0.35	TESLA	MAT-110-130	G032	14
63
64
65
66
67
68
69
70
71	BOSCH	1928499468	0.50x0.40F	YE	0.35	TESLA	MAT-110-130	X935M	34
72	BOSCH	1928499468	0.50x0.40F	YE/DKBU	0.35	TESLA	MAT-110-130	X935M	33
