X688

Tesla Part Number

1128025-00-A

Connector

AMP 1318917-1

Color

NA

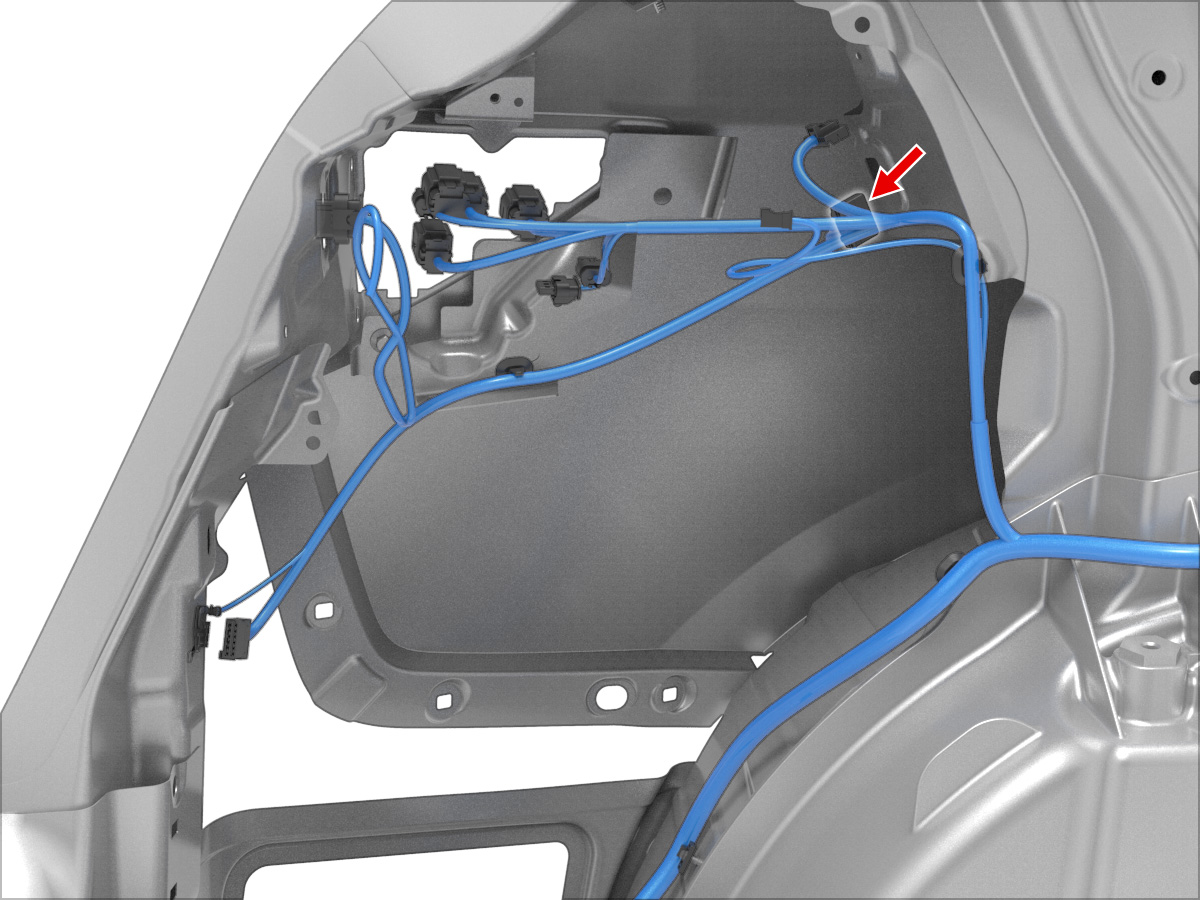

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1123343-1	0.64x0.64F	RD	0.50			X320	2
2	unused
3	unused
4				YE	0.50			X320	1
5				GN	0.50			X320	11
6	unused
7	unused
8	unused
9	unused
10	unused
11	unused
12				VT	0.35			X312	3
13	AMP	1123343-1	0.64x0.64F	BU	0.50			X320	8
14	unused
15	unused
16				WH	0.50			X320	12
17	unused
18	unused
19	unused
20				YE	0.50			X320	4
21				BN	0.50			X320	10
22				VT	0.50			X320	9
23				RD	0.35			X312	2
24				BU	0.35			X312	1
