X200

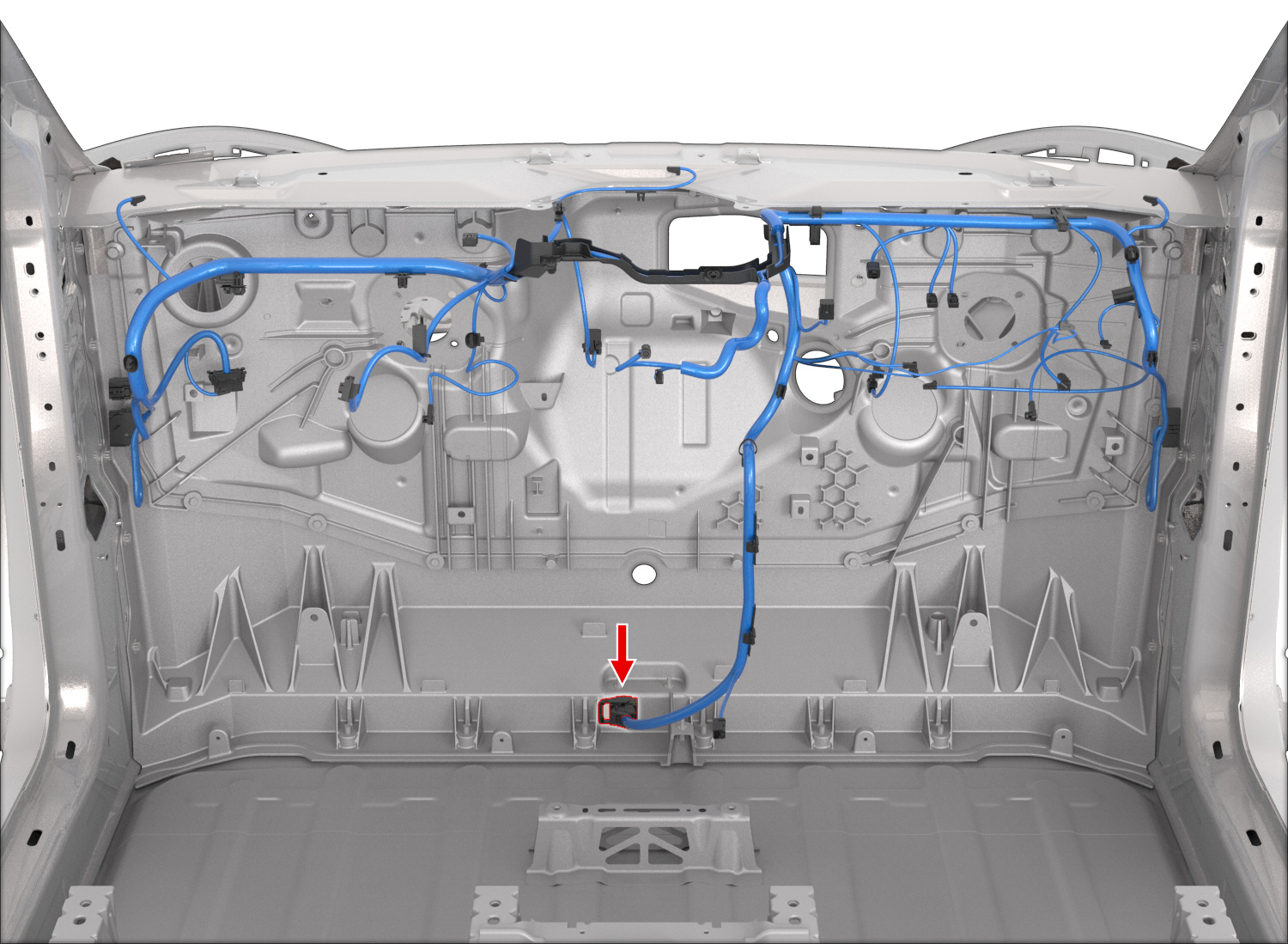

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BOSCH | 1928499468 | 0.50x0.40F | TN | 0.35 | TESLA | MAT-110-130 | X055 | 8 |
| 2 | BOSCH | 1928499468 | 0.50x0.40F | VT | 0.35 | TESLA | MAT-110-130 | X055 | 9 |
| 3 | BOSCH | 1928499468 | 0.50x0.40F | BU | 0.35 | TESLA | MAT-110-130 | X035 | 32 |
| 4 | BOSCH | 1928499468 | 0.50x0.40F | WH | 0.35 | TESLA | MAT-110-130 | X035 | 16 |
| 5 | |||||||||
| 6 | |||||||||
| 7 | BOSCH | 1928499468 | 0.50x0.40F | WH | 0.35 | TESLA | MAT-110-130 | X055 | 6 |
| 8 | BOSCH | 1928499468 | 0.50x0.40F | VT | 0.35 | TESLA | MAT-110-130 | X055 | 7 |
| 9 | BOSCH | 1928499468 | 0.50x0.40F | YE | 0.35 | TESLA | MAT-110-130 | X180 | 12 |
| 10 | BOSCH | 1928499468 | 0.50x0.40F | GY | 0.35 | TESLA | MAT-110-130 | X180 | 13 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | BOSCH | 1928499468 | 0.50x0.40F | GY | 0.35 | TESLA | MAT-110-130 | X229 | 1 |
| 15 | BOSCH | 1928499468 | 0.50x0.40F | RD | 0.35 | TESLA | MAT-110-130 | X229 | 2 |
| 16 | BOSCH | 1928499468 | 0.50x0.40F | BK | 0.35 | TESLA | MAT-110-130 | X180 | 9 |
| 17 | BOSCH | 1928499468 | 0.50x0.40F | TN | 0.35 | TESLA | MAT-110-130 | X180 | 8 |
| 18 | BOSCH | 1928499468 | 0.50x0.40F | YE | 0.35 | TESLA | MAT-110-130 | X230 | 1 |
| 19 | BOSCH | 1928499468 | 0.50x0.40F | BU | 0.35 | TESLA | MAT-110-130 | X230 | 2 |
| 20 | BOSCH | 1928499468 | 0.50x0.40F | GN | 0.35 | TESLA | MAT-110-130 | X180 | 11 |
| 21 | BOSCH | 1928499468 | 0.50x0.40F | RD | 0.35 | TESLA | MAT-110-130 | X180 | 10 |
| 22 | |||||||||
| 23 | |||||||||
| 24 | |||||||||
| 25 | |||||||||
| 26 | |||||||||
| 27 | BOSCH | 1928499468 | 0.50x0.40F | RD | 0.35 | TESLA | MAT-110-130 | X055 | 33 |
| 28 | |||||||||
| 29 | |||||||||
| 30 | |||||||||
| 31 | BOSCH | 1928499468 | 0.50x0.40F | VT | 0.35 | TESLA | MAT-110-130 | X035 | 17 |
| 32 | BOSCH | 1928499468 | 0.50x0.40F | GY | 0.35 | TESLA | MAT-110-130 | X035 | 18 |
| 33 | BOSCH | 1928499468 | 0.50x0.40F | BK | 0.35 | TESLA | MAT-110-130 | X055 | 11 |
| 34 | BOSCH | 1928499468 | 0.50x0.40F | TN | 0.35 | TESLA | MAT-110-130 | X055 | 10 |
| 35 | BOSCH | 1928499468 | 0.50x0.40F | YE | 0.35 | TESLA | MAT-110-130 | X055 | 34 |
| 36 | |||||||||
| 37 | |||||||||
| 38 | BOSCH | 1928499468 | 0.50x0.40F | TN | 0.35 | TESLA | MAT-110-130 | X055 | 1 |
| 39 | BOSCH | 1928499468 | 0.50x0.40F | BU | 0.35 | TESLA | MAT-110-130 | X055 | 18 |
| 40 | BOSCH | 1928499468 | 0.50x0.40F | VT | 0.35 | TESLA | MAT-110-130 | X055 | 32 |
| 41 | |||||||||
| 42 | |||||||||
| 43 | BOSCH | 1928499468 | 0.50x0.40F | RD | 0.35 | TESLA | MAT-110-130 | X035 | 10 |
| 44 | BOSCH | 1928499468 | 0.50x0.40F | TN | 0.35 | TESLA | MAT-110-130 | X035 | 26 |
| 45 | BOSCH | 1928499468 | 0.50x0.40F | GN | 0.35 | TESLA | MAT-110-130 | X035 | 25 |
| 46 | BOSCH | 1928499468 | 0.50x0.40F | BU | 0.35 | TESLA | MAT-110-130 | X035 | 9 |
| 47 | |||||||||
| 48 | |||||||||
| 49 | |||||||||
| 50 | |||||||||
| 51 | BOSCH | 1928499468 | 0.50x0.40F | GN | 0.35 | TESLA | MAT-110-130 | X035 | 21 |
| 52 | BOSCH | 1928499468 | 0.50x0.40F | GY | 0.35 | TESLA | MAT-110-130 | X035 | 6 |
