X688

Tesla Part Number

1128025-00-A

Connector

AMP 1318917-1

Color

NA

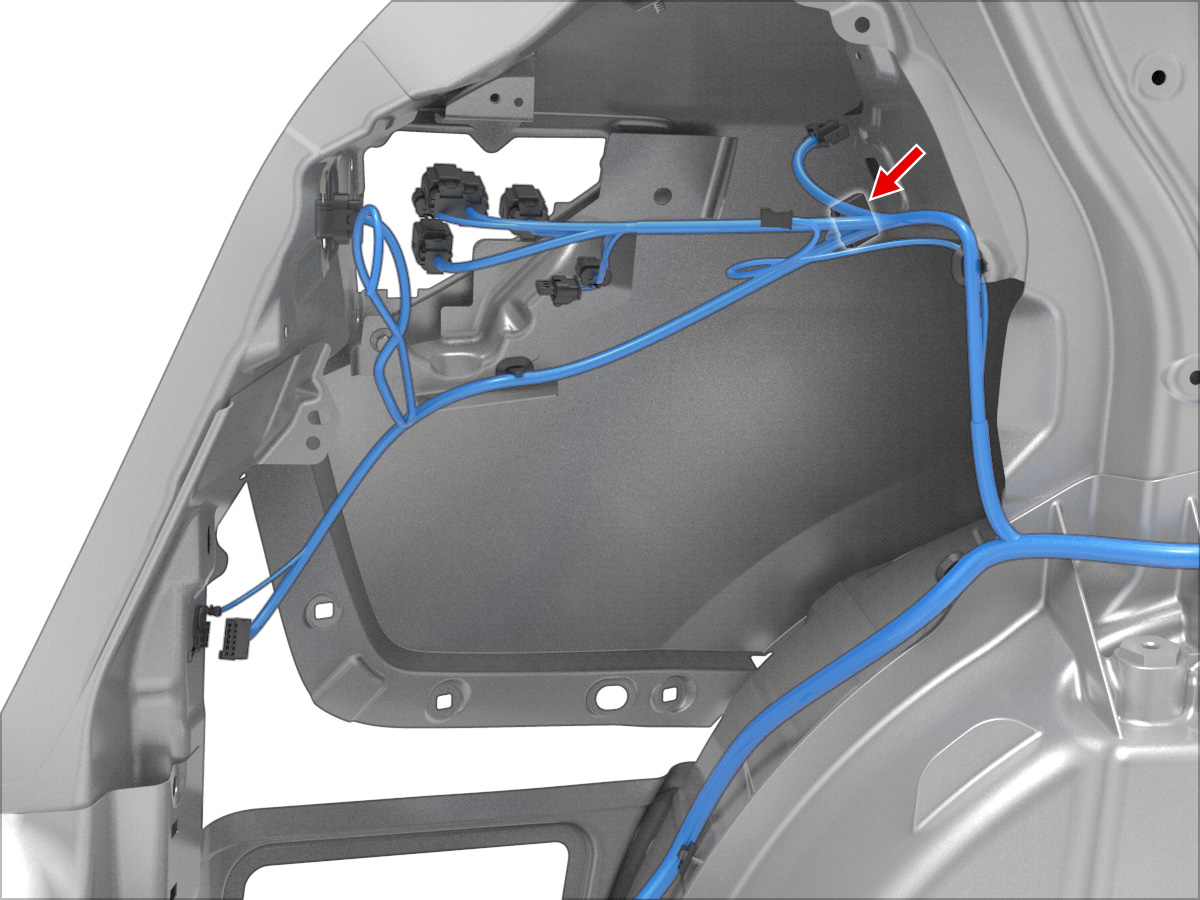

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMP	1123343-1	0.64x0.64F	RD	0.50			X320	2
2				GY	0.50			X321	7
3				BN	0.50			X321	2
4				YE	0.50			X320	1
5	AMP	1123343-1	0.64x0.64F	GN	0.50			X320	11
6				YE	0.50			X321	8
7	unused
8	unused
9				BK	0.50			X321	1
10	AMP	1123343-1	0.64x0.64F	WH	0.50			X321	3
11				GN	0.50			X321	4
12				VT	0.35			X312	3
13				BU	0.50			X320	8
14	unused
15	unused
16				WH	0.50			X320	12
17				BU	0.50			X321	6
18	unused
19	unused
20	AMP	1123343-1	0.64x0.64F	YE	0.50			X320	4
21				BN	0.50			X320	10
22				VT	0.50			X320	9
23				RD	0.35			X312	2
24	AMP	1123343-1	0.64x0.64F	BU	0.35			X312	1
