G011

Tesla Part Number

1787037-00-A

Connector

KSE K21F00801

Color

GY

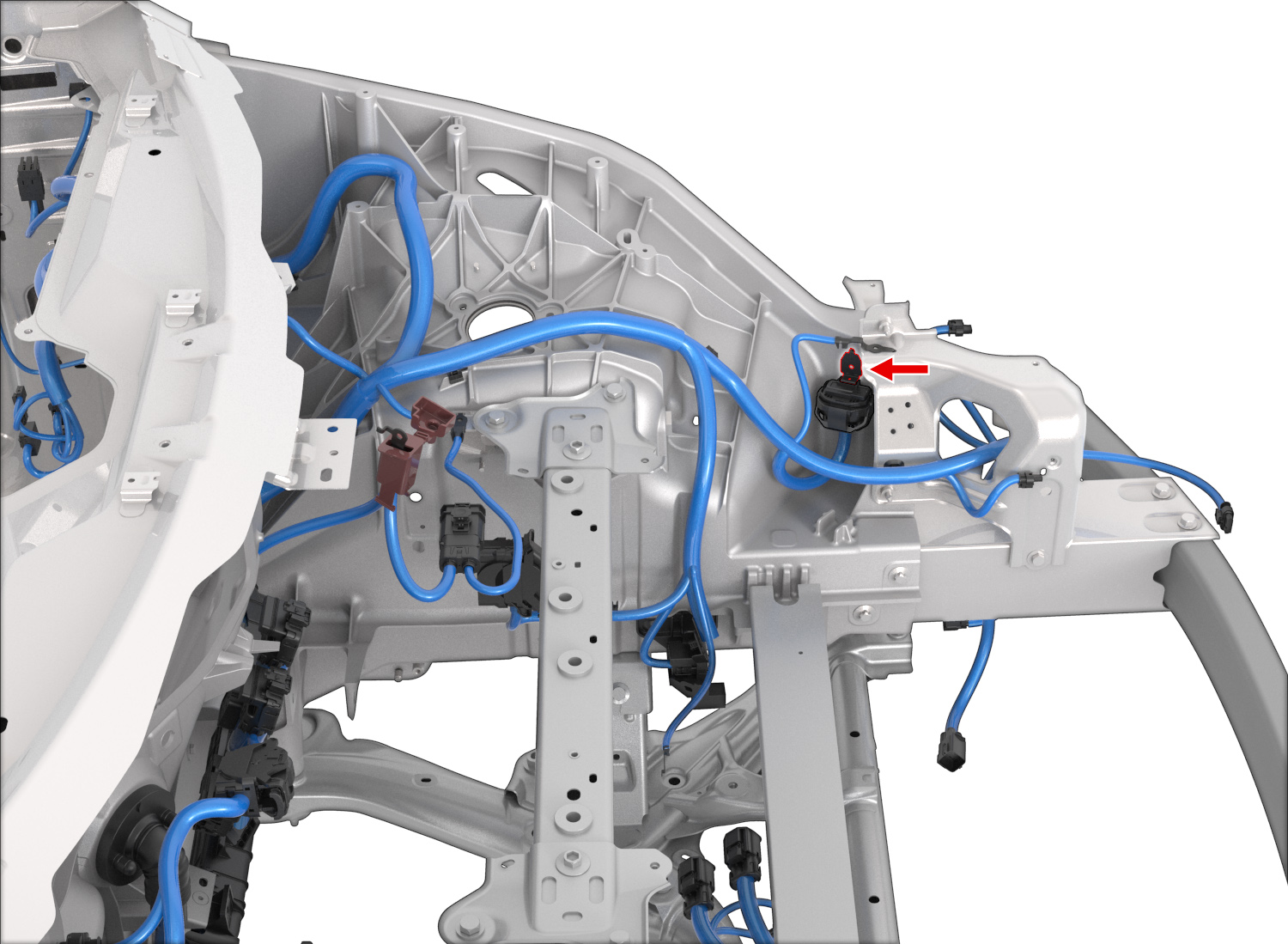

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	DELPHI	10780234	9.5FS	BK	10.00	DELPHI	10889241	G023	1
2	DELPHI	35138800	1.5	BK	0.35	DELPHI	13582731	X268	2
3	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X260	3
4	DELPHI	35138798	1.5	BK	1.50	DELPHI	13582732	X911F	8
5	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X198	2
6	DELPHI	13976117	6.3FS	BK	4.00	DELPHI	13735454	X532	1
7	DELPHI	35138799	1.5	BK	1.00	DELPHI	13582730	X199	2
8	DELPHI	35138800	1.5	BK	0.35	DELPHI	13582731	X485	2
9	DELPHI	35138800	1.5	BK	0.35	DELPHI	13582731	X159	1
10	DELPHI	35138800	1.5	BK	0.50	DELPHI	13582731	X302	A
11	DELPHI	15446674	2.8FS	BK	0.75	DELPHI	15339967	X301	1
12	DELPHI	15446675	2.8FS	BK	1.50	DELPHI	15339838	X911F	9
13	DELPHI	15446675	2.8FS	BK	2.00	DELPHI	15339838	X151	38
14	DELPHI	15446675	2.8FS	BK	2.50	DELPHI	15339838	X300	3
15	DELPHI	13976117	6.3FS	BK	4	DELPHI	13735454	X151	13
