X494

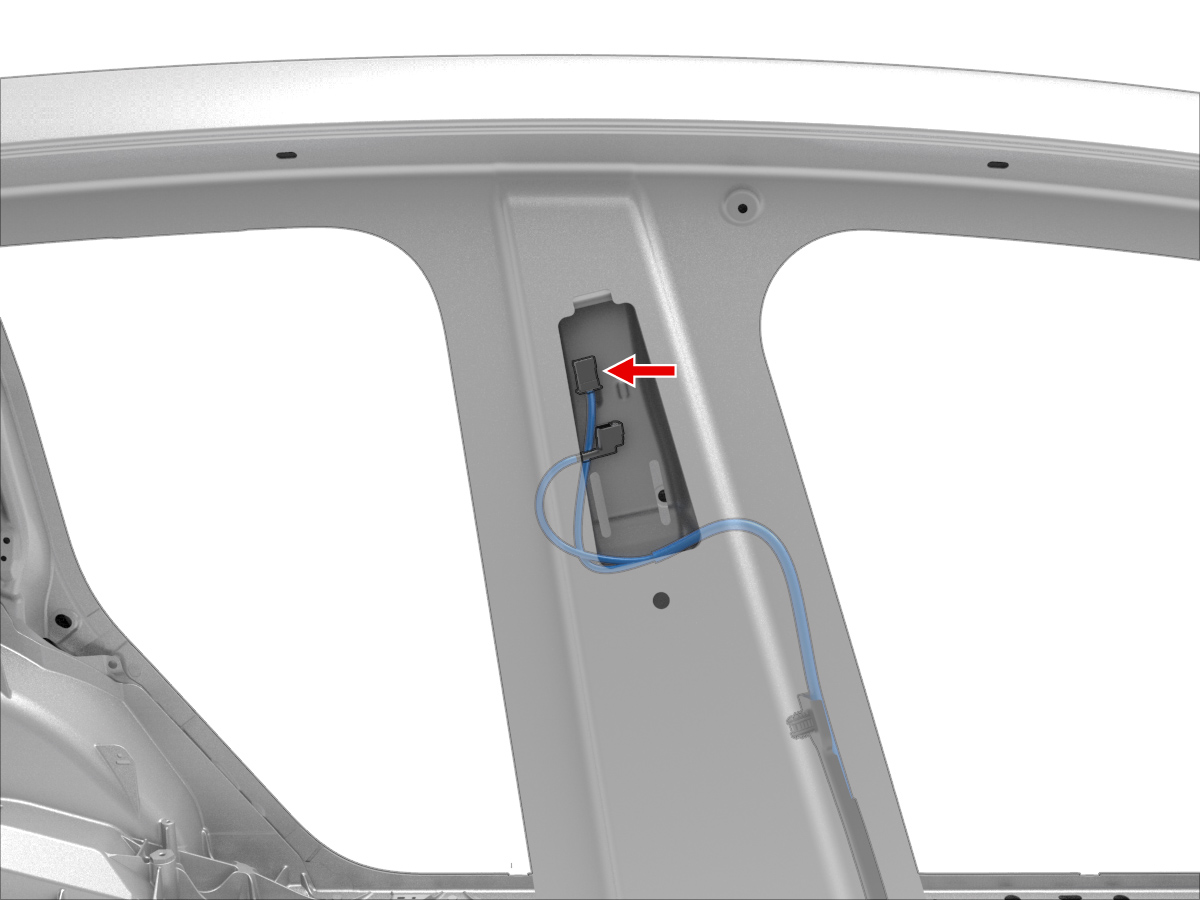

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | AMPHENOL | 10155447-111LF | 0.5F | RD | 0.35 | X059 | 9 | ||
| 2 | AMPHENOL | 10155447-111LF | 0.5F | YE | 0.35 | X050B | 10 | ||
| 3 | AMPHENOL | 10155447-111LF | 0.5F | BU | 0.35 | X935F | 45 | ||
| 4 | unused | ||||||||
| 5 | AMPHENOL | 10155447-111LF | 0.5F | BK | 0.35 | G032 | 7 | ||
| 6 | AMPHENOL | 10155447-111LF | 0.5F | WH | 0.35 | X935F | 44 | ||
