X493

Tesla Part Number

1768314-00-A

Connector

AMPHENOL 10155504-A006LF

Color

BK

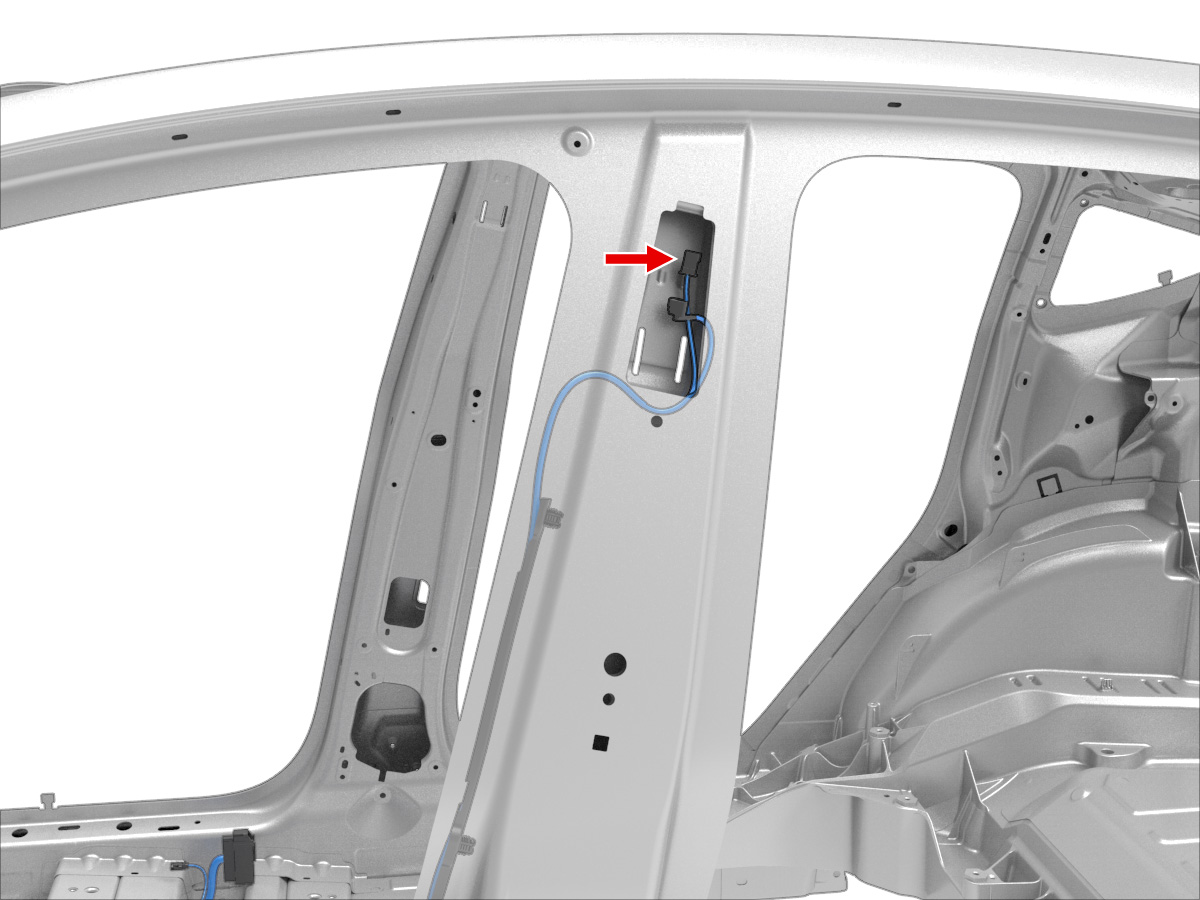

Connector Location:

Connector Pinout

Connector Details

Cavity	Terminal Manufacturer	Terminal Part Number	Terminal Size	Wire Color	Wire Size	Wire Seal Manufacturer	Wire Seal PN	Wire Dest. Desg.	Wire Dest. Cavity
1	AMPHENOL	10155447-111LF	0.5F	RD	0.35			X031	37
2	AMPHENOL	10155447-111LF	0.5F	BU	0.35			X030A	12
3	AMPHENOL	10155447-111LF	0.5F	VT	0.35			X930F	12
4	unused
5	AMPHENOL	10155447-111LF	0.5F	BK	0.35			G031	6
6	AMPHENOL	10155447-111LF	0.5F	GN	0.35			X930F	13
