X047

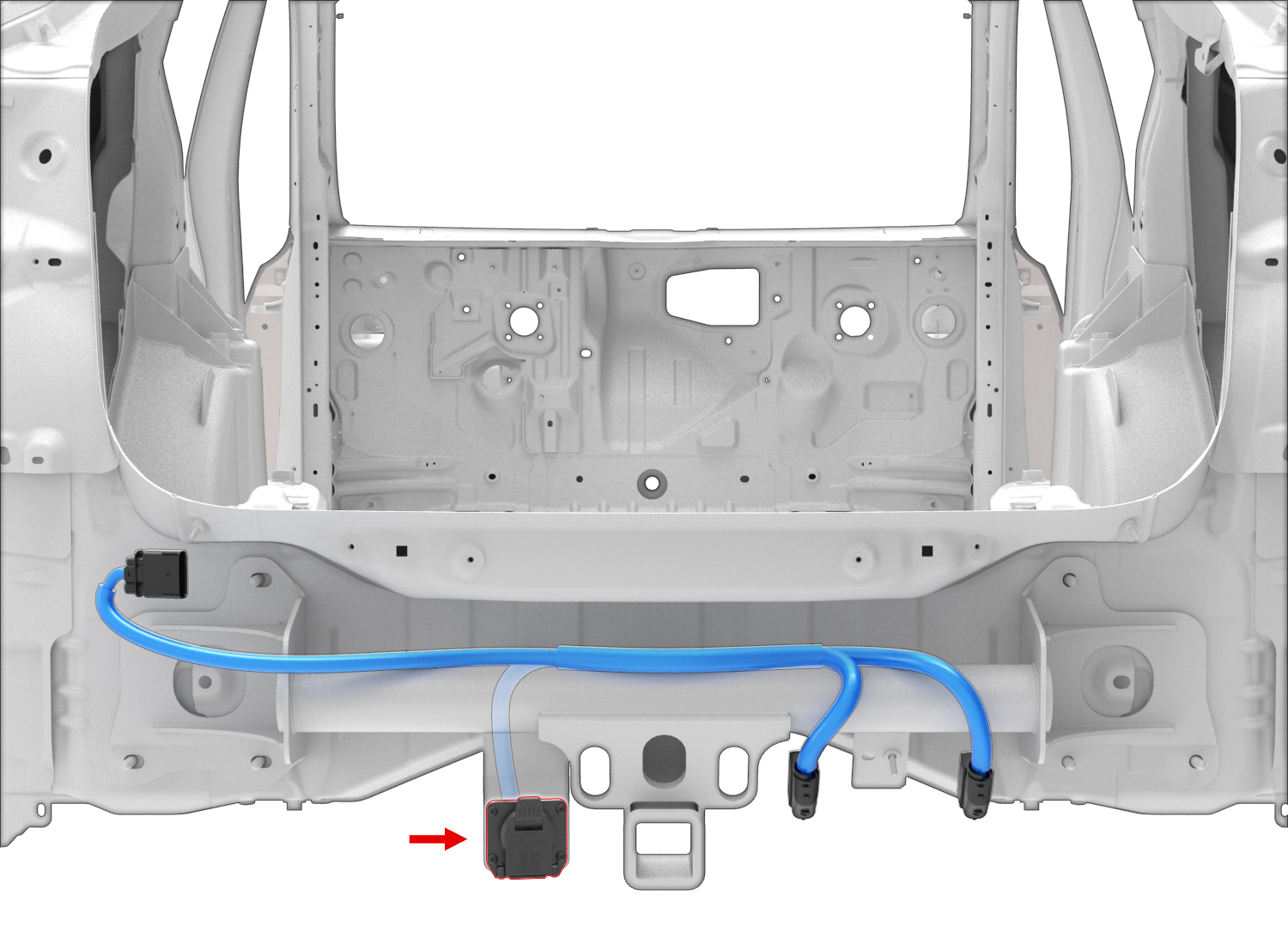

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | PIA | TERM-SN | PIA-F | WH | 1.50 | PIA | PIA-SEAL | X044 | 2 |
| 2 | PIA | TERM-SN | PIA-F | BN | 2.00 | PIA | PIA-SEAL | X044 | 8 |
| 3 | PIA | TERM-SN | PIA-F | YE | 2.00 | PIA | PIA-SEAL | X044 | 9 |
| 4 | PIA | TERM-SN | PIA-F | BN | 1.50 | PIA | PIA-SEAL | X044 | 3 |
| 5 | PIA | TERM-SN | PIA-F | RD | 2.00 | PIA | PIA-SEAL | ||
| 6 | PIA | TERM-SN | PIA-F | GY | 1.50 | PIA | PIA-SEAL | X044 | 15 |
| 7 | PIA | TERM-SN | PIA-F | YE | 1.50 | PIA | PIA-SEAL | X044 | 5 |
