G042_D

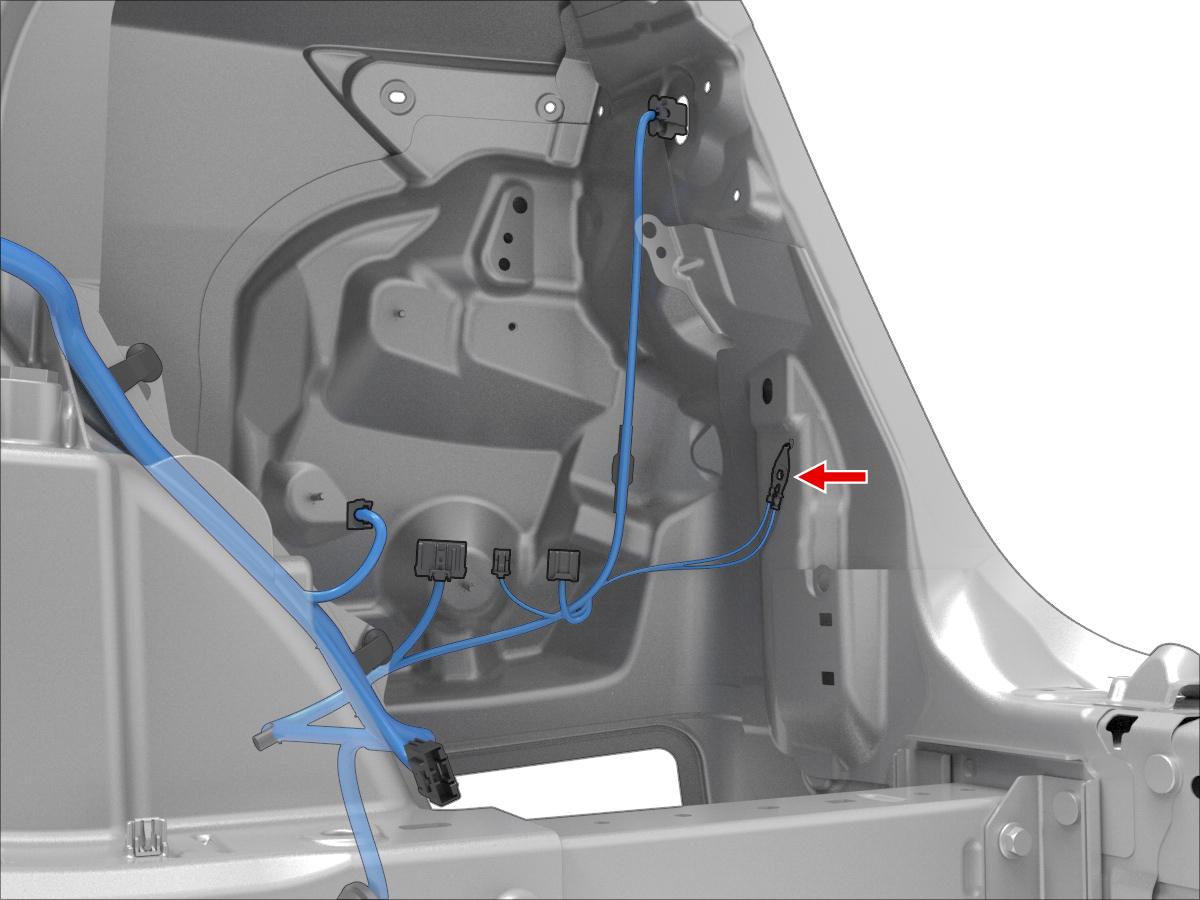

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | SUMITOMO | 8100-1995 | M6RING-R | GY | 3.00 | X561 | 5 |
