X881

Tesla Part Number
1610831-01-A
Connector
DELPHI 35188736
Color
WH

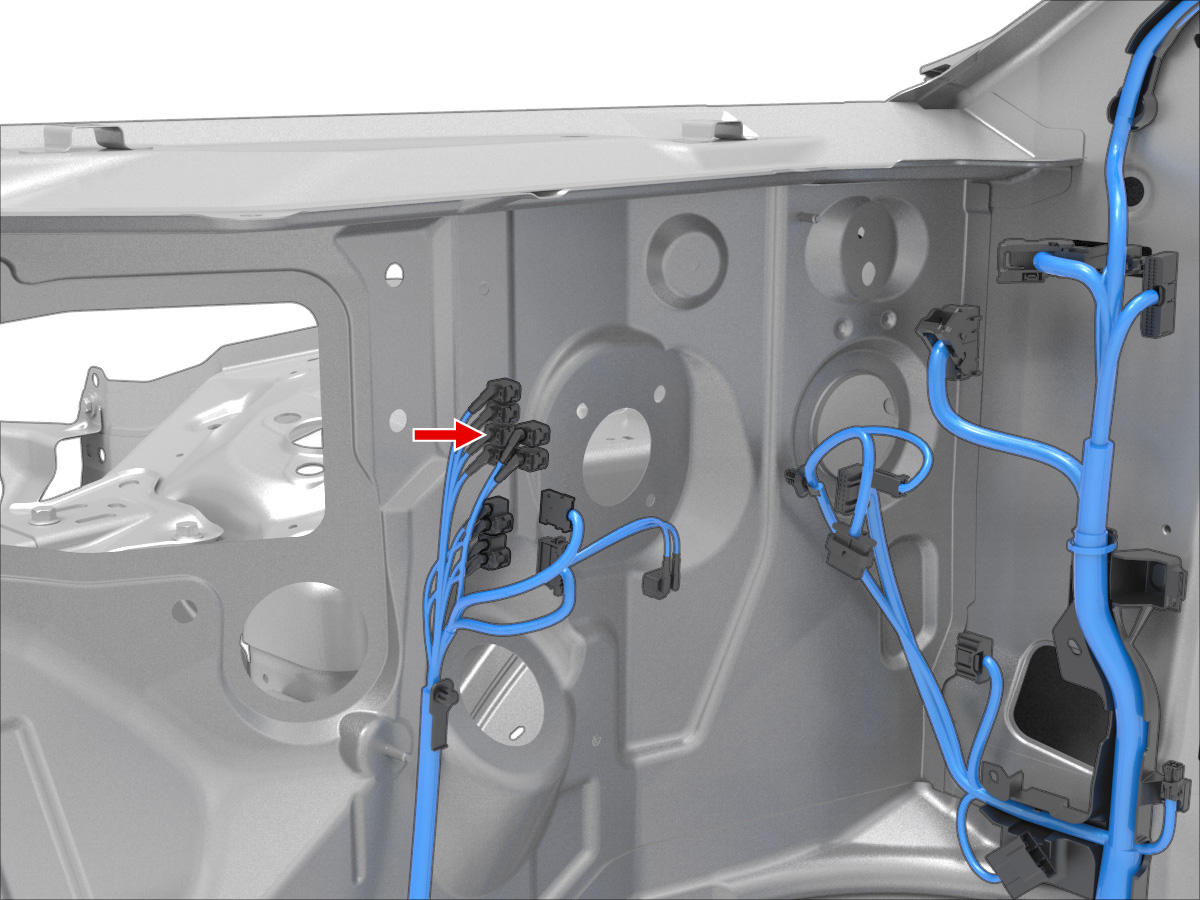

Connector Location:

Connector Pinout

Connector Details

CavityTerminal ManufacturerTerminal Part NumberTerminal SizeWire ColorWire SizeWire Seal ManufacturerWire Seal PNWire Dest. Desg.Wire Dest. Cavity
1DELPHI35227918COAXBKD302X886F4
