X012

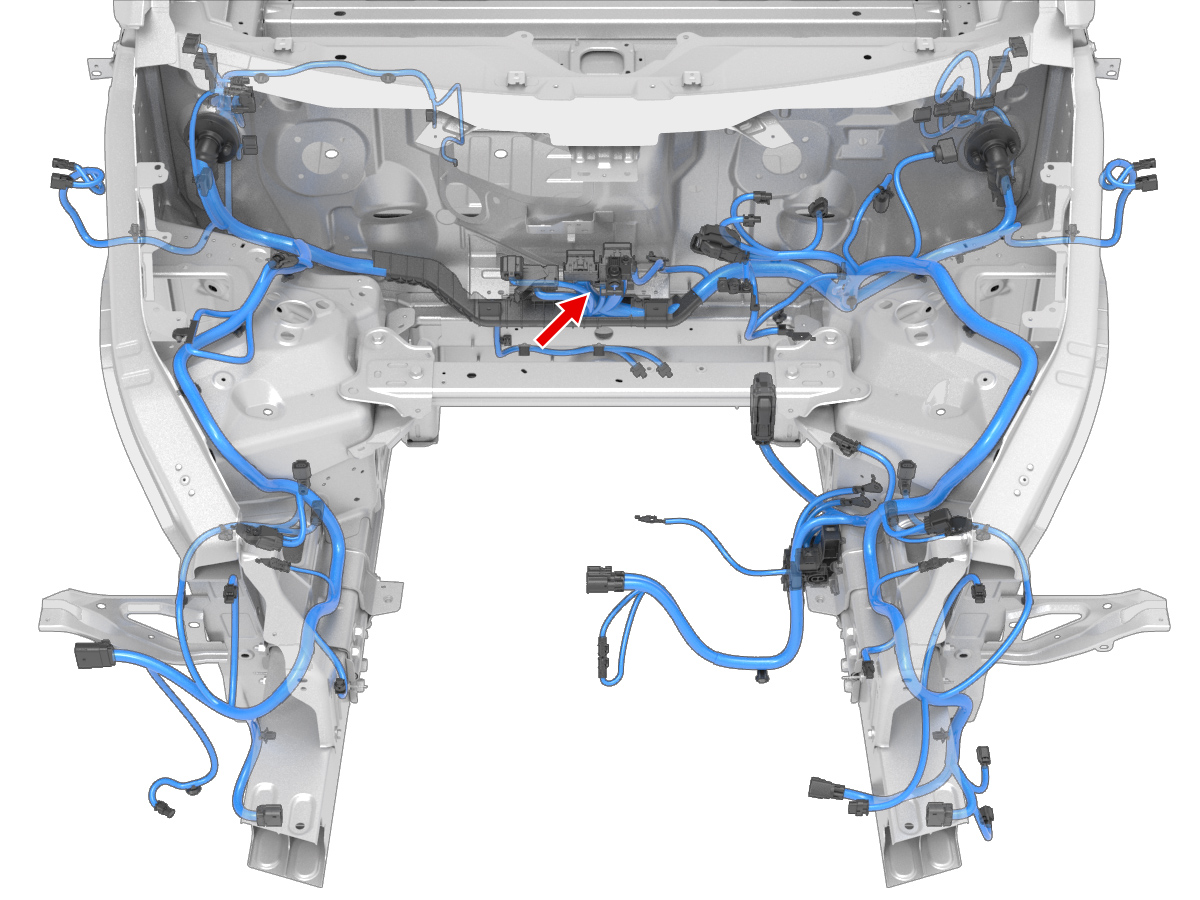

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | |||||||||
| 2 | DELPHI | 15340695 | 6.3 | BU | 2.00 | DELPHI | 15443869 | X120 | 9 |
| 3 | DELPHI | 10748126 | 6.3 | VT | 2.50 | DELPHI | 15443869 | X300 | 4 |
| 4 | |||||||||
| 5 | DELPHI | 10748126 | 6.3 | RD | 4.00 | DELPHI | 12186636 | X150A | 1 |
| 6 | unused | ||||||||
| 7 | unused | ||||||||
