X617

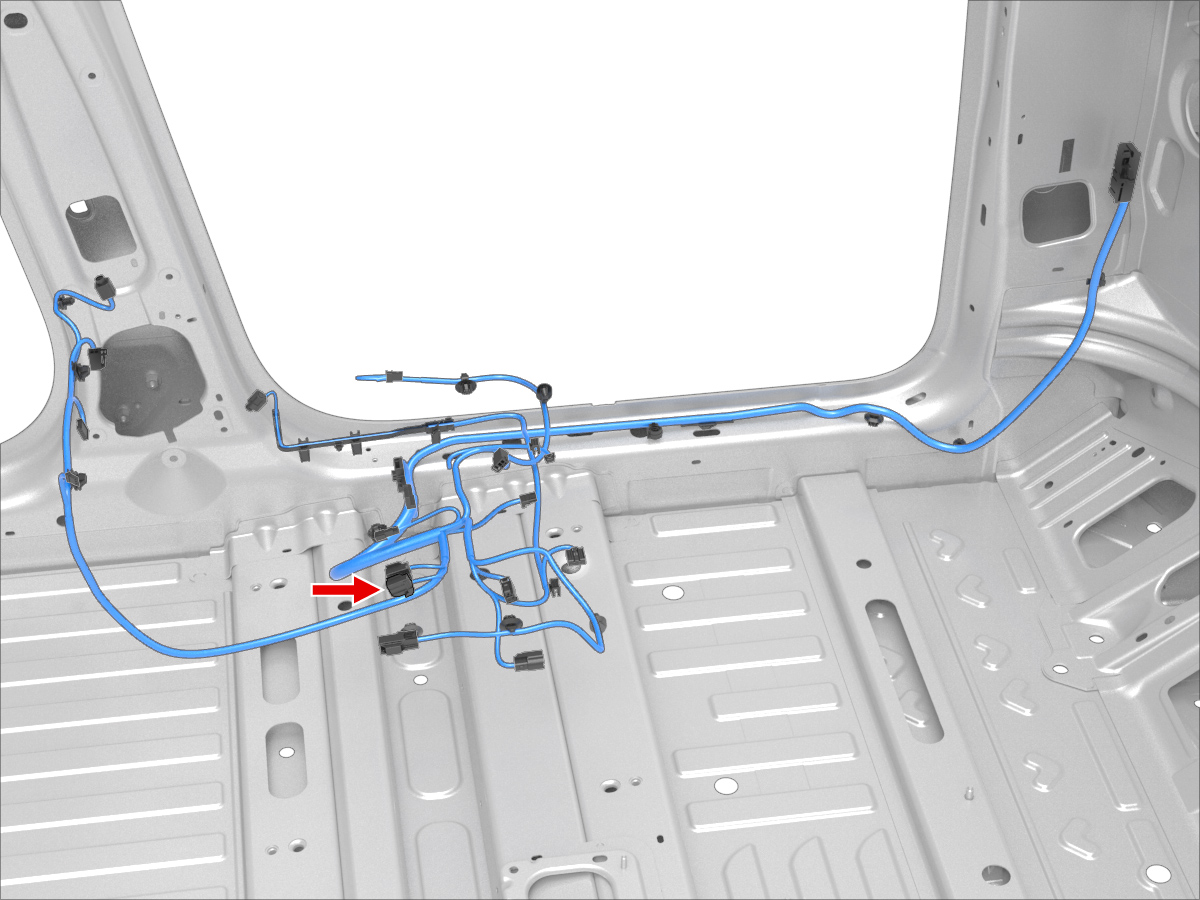

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-6315-02 | 1.5x0.8F | BK | 0.50 | X052 | 35 | ||
| 2 | YAZAKI | 7116-6315-02 | 1.5x0.8F | YE | 0.50 | X032 | 32 | ||
| 3 | YAZAKI | 7116-6315-02 | 1.5x0.8F | GY | 0.35 | X032 | 22 | ||
| 4 | YAZAKI | 7116-6315-02 | 1.5x0.8F | BN | 0.35 |
