X340

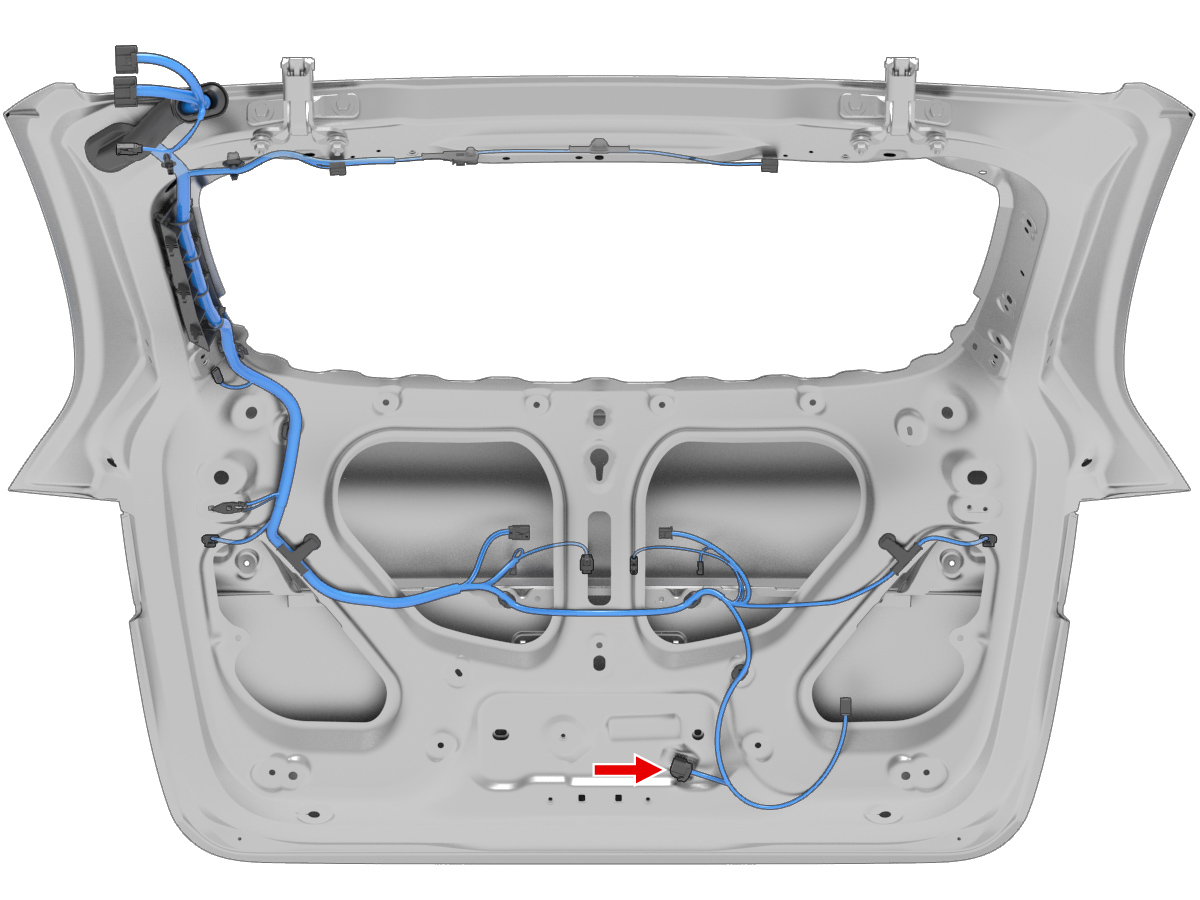

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | YAZAKI | 7116-6315-02 | 1.5x0.8F | WH | 0.35 | X954F | 8 | ||
| 2 | YAZAKI | 7116-6315-02 | 1.5x0.8F | VT | 0.35 | X954F | 9 | ||
| 3 | YAZAKI | 7116-6315-02 | 1.5x0.8F | BK | 0.35 | ||||
| 4 | YAZAKI | 7116-6316-02 | 1.5x0.8F | GN | 1.00 | X953F | 14 | ||
| 5 | YAZAKI | 7116-6316-02 | 1.5x0.8F | RD | 1.00 | X953F | 15 | ||
| 6 | YAZAKI | 7116-6315-02 | 1.5x0.8F | YE | 0.35 | X954F | 13 |
