X150

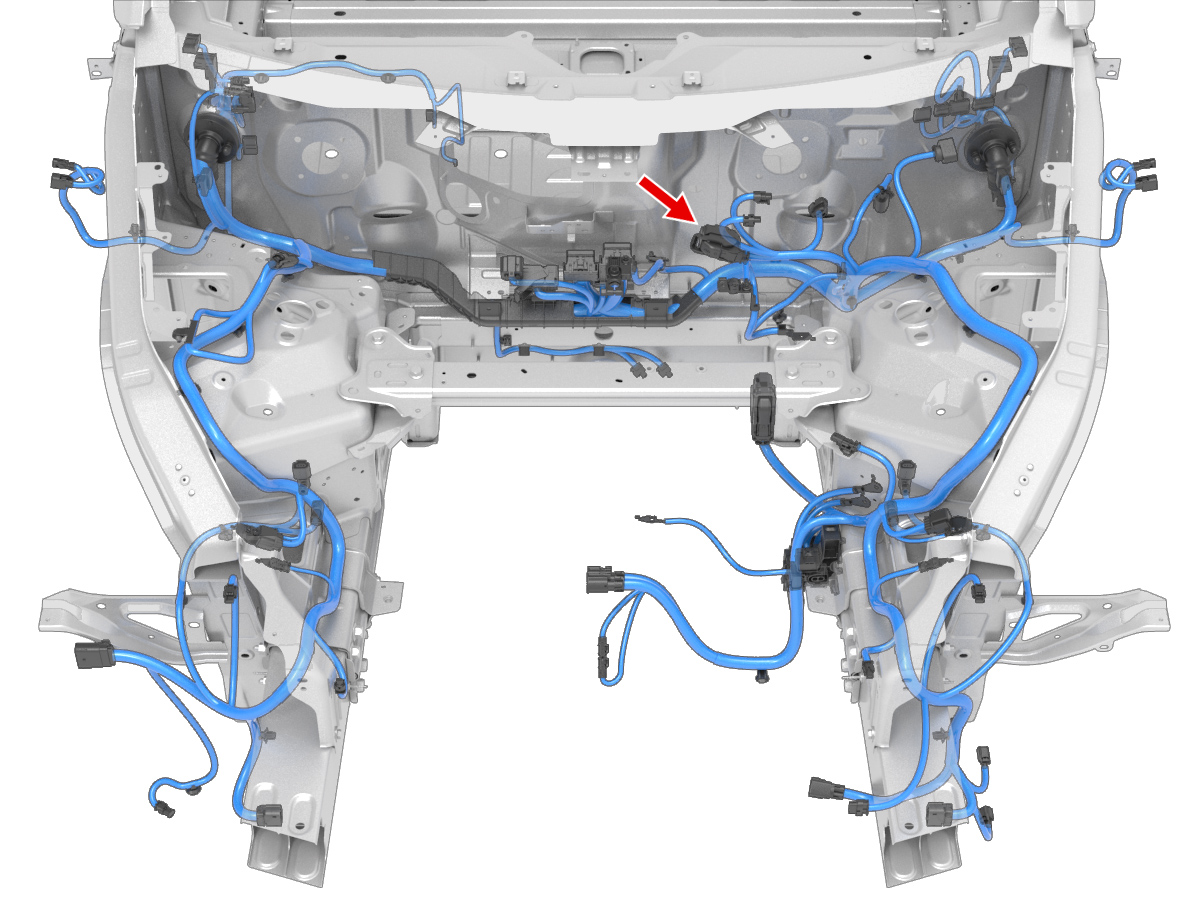

Connector Location:
Connector Pinout
Connector Details
| Cavity | Terminal Manufacturer | Terminal Part Number | Terminal Size | Wire Color | Wire Size | Wire Seal Manufacturer | Wire Seal PN | Wire Dest. Desg. | Wire Dest. Cavity |
|---|---|---|---|---|---|---|---|---|---|
| 1 | BOSCH | 1928498807 | 4.8x0.8FS | RD | 4.00 | BOSCH | 1928301086 | X012 | 5 |
| 2 | BOSCH | 1928498705 | 1.5x0.6FS | RD | 0.50 | BOSCH | 1928301118 | X158 | 2 |
| 3 | |||||||||
| 4 | |||||||||
| 5 | |||||||||
| 6 | |||||||||
| 7 | |||||||||
| 8 | BOSCH | 1928498705 | 1.5x0.6FS | GY | 0.50 | BOSCH | 1928301118 | X158 | 4 |
| 9 | BOSCH | 1928498807 | 4.8x0.8FS | BK | 4.00 | BOSCH | 1928301086 | G014 | 1 |
| 10 | BOSCH | 1928498705 | 1.5x0.6FS | YE | 0.35 | BOSCH | 1928301118 | X010 | 55 |
| 11 | |||||||||
| 12 | |||||||||
| 13 | |||||||||
| 14 | |||||||||
| 15 | |||||||||
| 16 | BOSCH | 1928498705 | 1.5x0.6FS | GN | 0.35 | BOSCH | 1928301118 | ||
| 17 | |||||||||
| 18 | BOSCH | 1928498705 | 1.5x0.6FS | YE/LTBU | 0.35 | BOSCH | 1928301118 | X010 | 54 |
| 19 | |||||||||
| 20 | BOSCH | 1928498705 | 1.5x0.6FS | YE | 0.35 | BOSCH | 1928301118 | X010 | 6 |
| 21 | |||||||||
| 22 | BOSCH | 1928498705 | 1.5x0.6FS | WH | 0.50 | BOSCH | 1928301118 | X158 | 1 |
| 23 | BOSCH | 1928498705 | 1.5x0.6FS | BU | 0.50 | BOSCH | 1928301118 | X158 | 3 |
| 24 | |||||||||
| 25 | BOSCH | 1928498705 | 1.5x0.6FS | DKGN/WH | 0.35 | BOSCH | 1928301118 | ||
| 26 |
